Tripp Lite SmartPro SMART3000RM2UP - Battery Replacement

18
1
3
2
4A
4B
4 x screws
4 x screws
Battery Replacement
Undernormalconditions,theoriginalbatteriesinyourUPSwilllastmanyyears.SeeSafetysection
beforereplacingbatteries.Thebatteriesaredesignedforhot-swapreplacement(i.e.leavingthe
UPSinONmode),butsomequalifiedservicepersonnelmaywishtoputtheUPSintheOFFmode
anddisconnectequipmentbeforeproceeding.Note:Refertothelabelonthebatteryretention
platefortheR.B.C.partnumber.

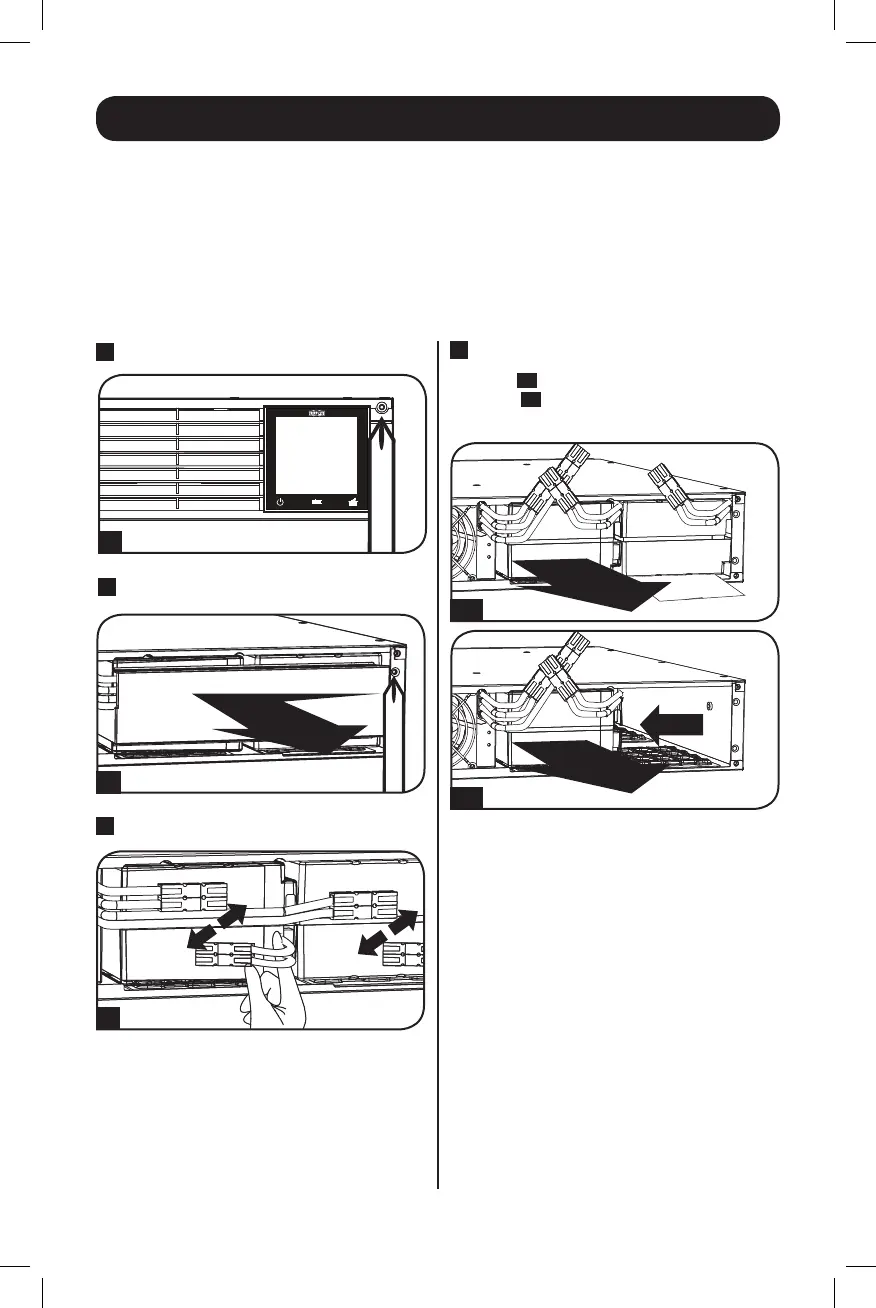

SMART3000RM2UP and SMART3000RMXL2U Battery (RBC58-2U)
Replacement Procedure
2
Remove Battery Retention Plate
3
Disconnect Batteries
4
Remove/Recycle Batteries
First,
4A
remove the left row of batteries.
Then,
4B
slide the right row of batteries to
the left and remove.
1
Remove Front Panel
