20
1
5
3
7
2
6
4
8
4 x screws
4 x screws
4 x screws
4 x screws

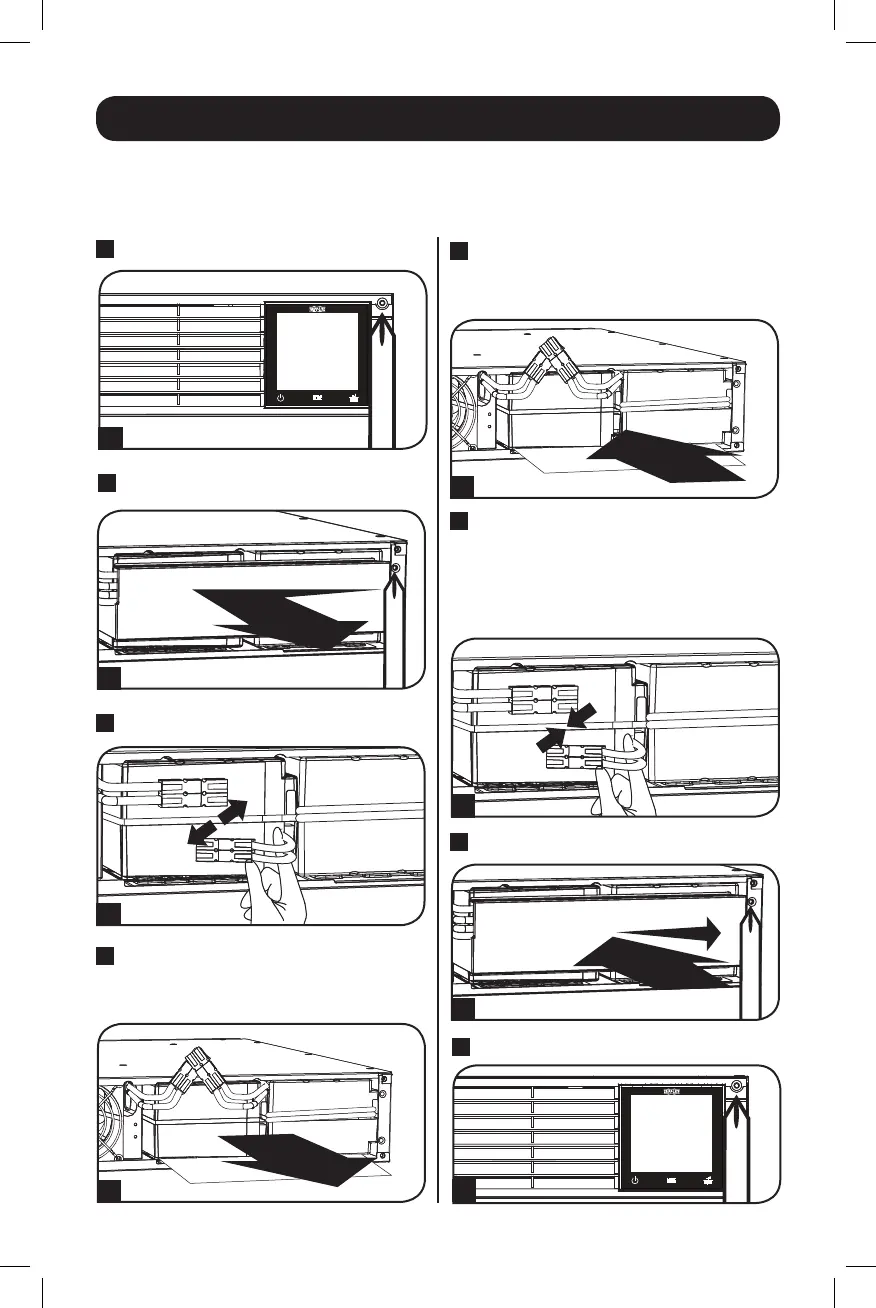

Battery Replacement
SMART3000RM2U, SMART2600RM2U, SMART2200RMXL2UP,
SMART2200RMXL2U and SMART2200RM2U Battery (RBC94-2U)
Replacement Procedure
5
Add New Batteries
Installthereplacementbatteriesbysliding
themdirectlyintotheUPScabinet.
2
Remove Battery Retention Plate
3
Disconnect Batteries
4
Remove/Recycle Batteries
Remove batteries by sliding them directly
outoftheUPScabinet.
6
Connect Batteries
Attach both sets of connectors as shown:
black-to-blackandred-to-red.
Always ensure that the battery
terminals are properly secured.
7
Replace Battery Retention Plate
8
Replace Front Panel
1
Remove Front Panel
