Triton ASPIRANTE Series User Manual

6
Aspirante pumped electric
WATER REQUIREMENTS
The installation must be in accordance with the
Water Regulations/Byelaws.
To make sure of activation of the heating
elements, the shower must be connected to a
cold water supply which is gravity fed from a
static cold water storage cistern with a
minimum capacity of 114 litres (25 gallons).
There must be a maximum head of water of
10 metres and a minimum head of 8cm as
measured between the bottom of the cistern
and the top of the shower unit. There must be
no other cold water draw offs between the
cistern and the unit and the pipe must not
supply water to any other tap or fitting at a
lower level.
Note: The supply pipe from the cistern should
be on the opposite side to the float operated
valve to prevent air being drawn into the pipe
when the cistern is filling.
If it is intended to operate the shower in hard
water areas (above 200 ppm temporary
hardness) a scale inhibitor should be fitted.
Fig.4 shows a typical system layout.
DO NOT use jointing compounds on any pipe
fittings for the installation.
Mains
water
supply
Gate
valve
Stop
valve
Cold water
cistern
Mains electric supply
(via double pole switch)
Double
pole
isolating
switch
Separate permanently
connected supply
from consumer unit
Shower
unit
Minimum capacity
114 litres (25 gallons)
8cm (3")
minimum

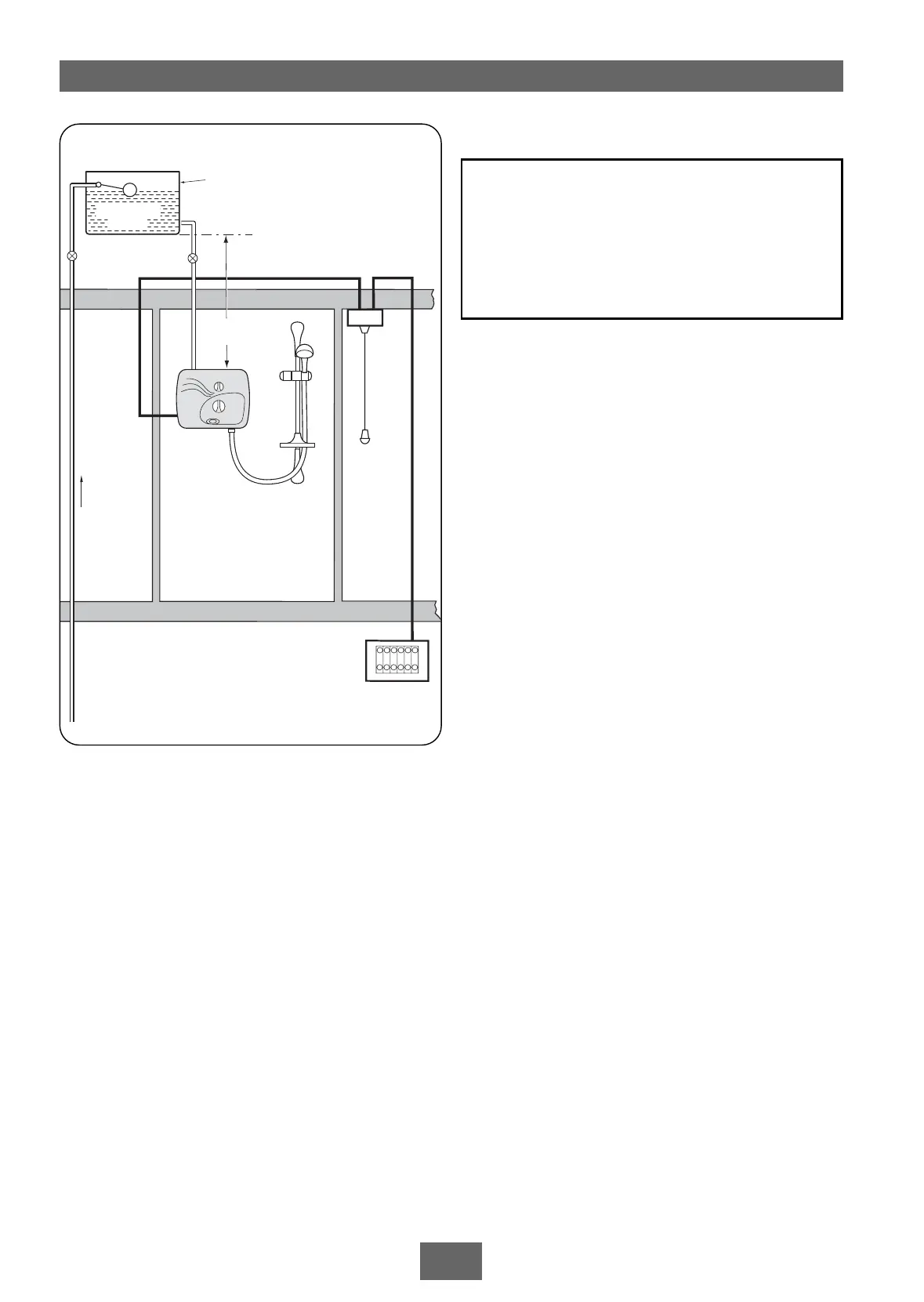

Fig.4 Diagrammatic view (not to scale)
WARNING!
Under no circumstances must this
Aspirante pumped electric shower
be connected directly to the mains
water supply.

Triton ASPIRANTE Series Specifications

General

Maximum Static Pressure	10 Bar
Water Entry Points	Right Hand Side - Top, Bottom, Back
Cable Entry Points	Right Hand Side - Top, Bottom, Back
Type	Electric
Controls	Push button
Features	Push Button Start/Stop
