Jade 3
9

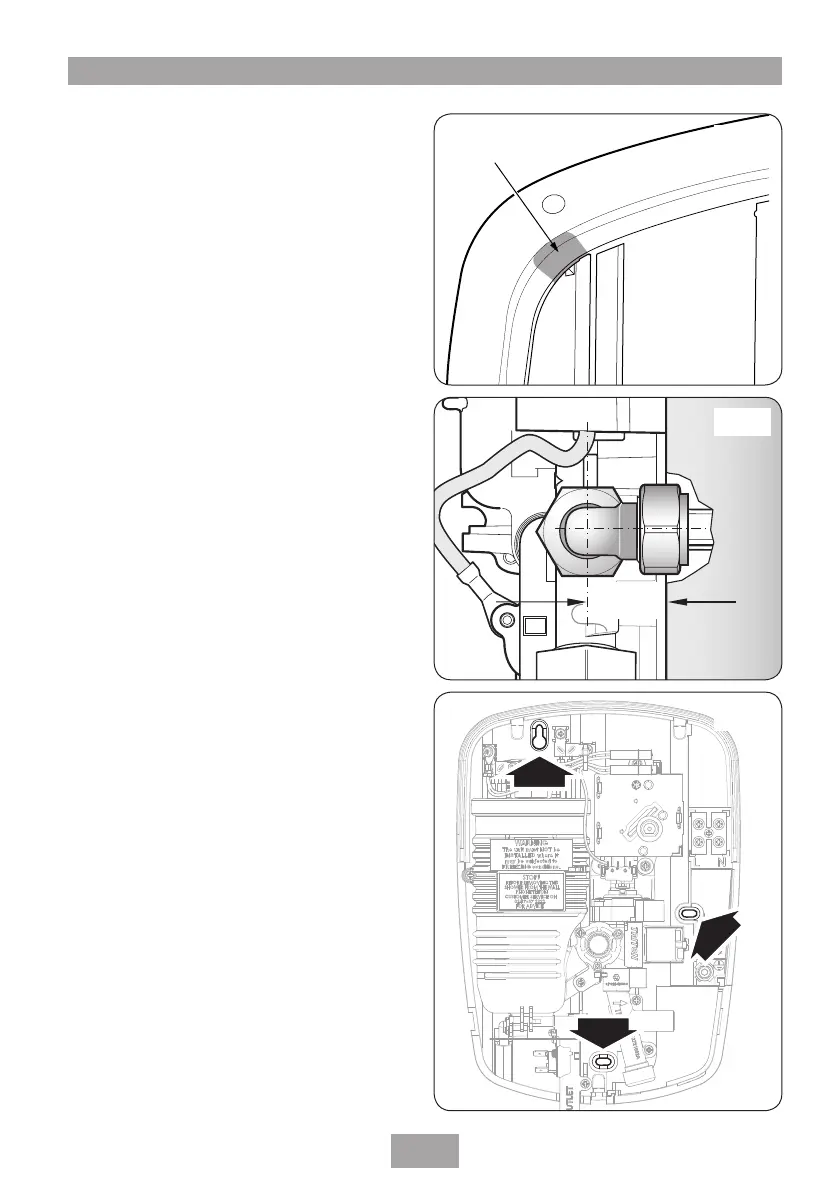

then a small area will need to be cut out in the
backplate (fig.10).
If installing a feed pipe from the rear or bottom,
the centre of the inlet valve to the wall surface is
21mm (fig.11).
Note: If entry is from the rear, the nut of the
compression fitting will be partially behind the
surface of the wall (fig.11). This area MUST
be left clear when plastering over the pipework
in order to make the nut accessible for future
adjustments.
After choosing the site for the shower, use the
backplate as a template and mark the three
fixing holes (fig.12).
Drill and plug to suit the fixing screws supplied.
(The wall plugs provided are suitable for most brick
walls – use an appropriate masonry drill, but if the
wall is plasterboard or a soft building block, you
must use suitable wall plugs and an appropriate
drill bit).
Screw top fixing screw into position leaving the
base of the screw head protruding 6mm out
from the wall.
Hook the backplate over the top screw and
fit the bottom fixing screw into position. DO
NOT fully tighten the screws at this stage,
as the fixing holes are elongated to allow for
out of square adjustment after the plumbing
connections have been completed.
$UHDWREH
FXWDZD\
9LHZIURP
UHDURIEDFNSODWH
Fig.11
Fig.10
Fig.12
