FITTING THE SHOWER TO THE WALL
Note: The control knobs are an integral part of
the cover – DO NOT attempt to remove them.

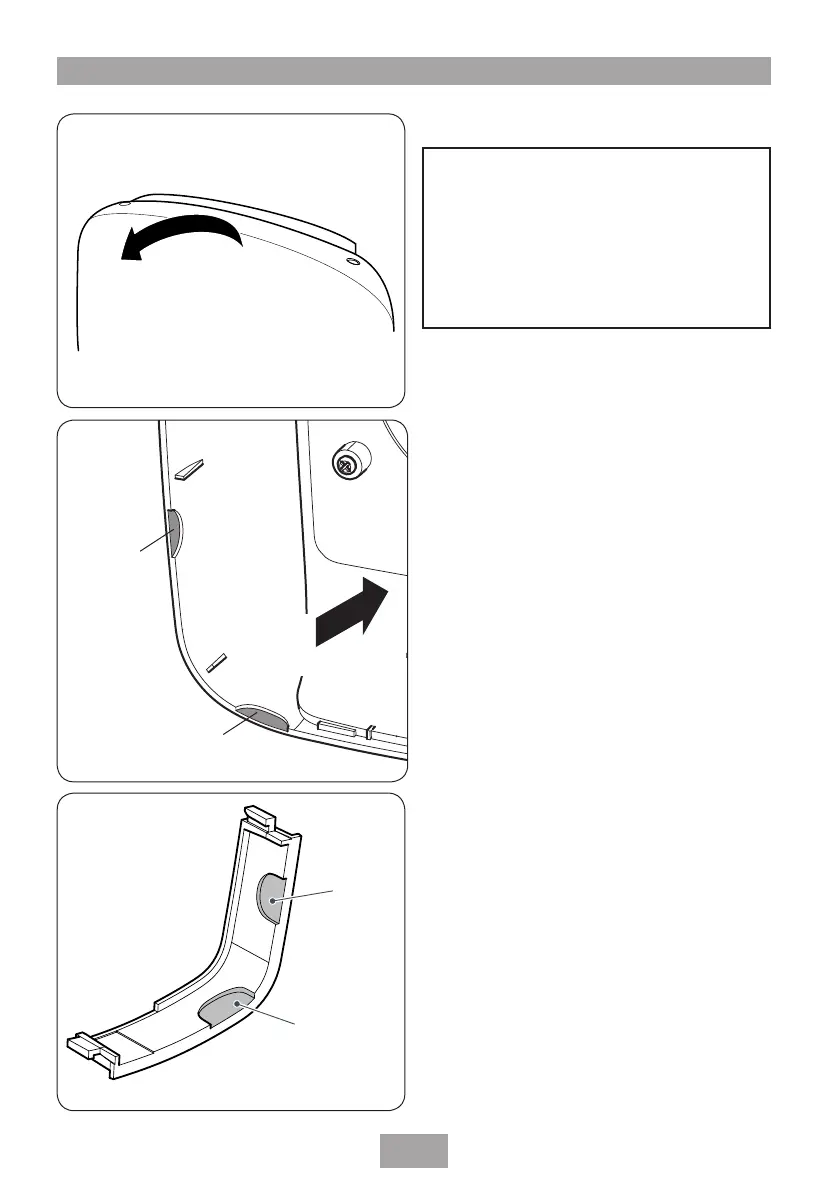

Lift the cover from the backplate (fig.7) to
access the pipe and cable connections then lift
off the trimplate.
Entry positions for the mains water are from the
bottom, rear or right. Cable entry is via the top
or rear.
Note: Deviations from the designated entry
points will invalidate product approvals.
If bottom or right surface entry is required
for the mains cold water, then the necessary
opening will need to be cut out in the cover
(fig.8) and the trimplate (fig.9).
If surface cable entry from the top is required
Fig.7
Fig.9
WARNING!
Check there are no hidden cables or
pipes before drilling holes for wall
plugs. Use great care when using
power tools near water. The use of
a residual current device (RCD) is
recommended.
Fig.8
REAR OF
COVER
Remove for
right entry
Remove for
bottom entry
Remove
for right
entry
Remove for
bottom entry
