Jade 3
18

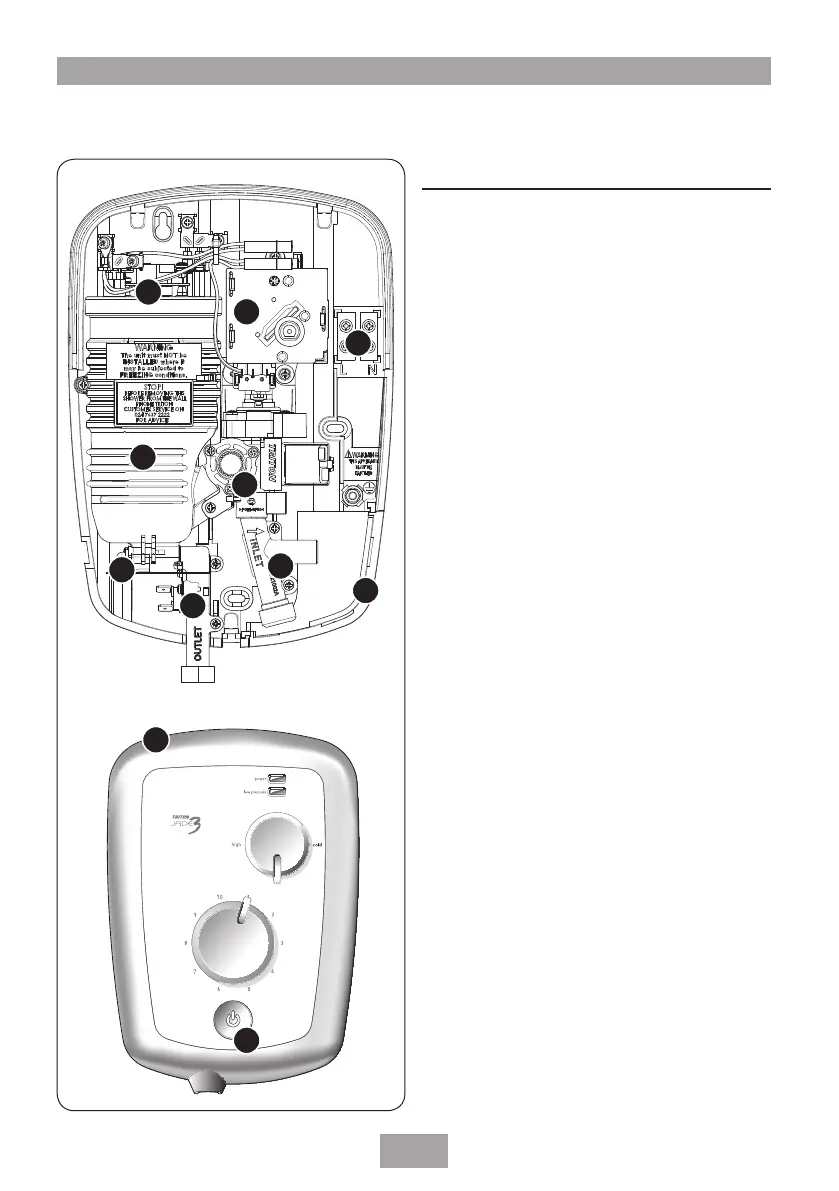

Ref. Description Part No.
1. Power selector including
microswitches
S12121003
2. Terminal block & outlet
pipe assembly
S12721003
3. Thermal cut-out 22011180
4. Heater can assembly
8.5kW P12120701
9.5kW P12120702
5. Stabiliser valve/solenoid
assembly
P12120800
6. PRD & ‘O’ ring 82800450
7. Inlet pipe assembly S12721002
8. Trimplate
white 7053978
– TCO shield 7052871
– Neon and switch assembly P12720903
9. Cover assembly
white S23520600
black S23520601
10. Start/Stop switch assembly 82301310
SPARE PARTS
2
10
9
8
7
6
5
4
3
2
1
