9
T90xr pumped electric shower
FITTING THE SHOWER TO THE WALL
Note: The control knobs are an integral part of
the cover – DO NOT attempt to remove them.
IMPORTANT: The unit must be mounted on
a flat surface which covers the full width and
length of the backplate. It is important that
the wall surface is flat otherwise difficulty
may be encountered when fitting the cover
and subsequent operation of the unit may be
impaired.
Unscrew the two top and two bottom retaining
screws (fig.7) and lift the cover from backplate.
If a top entry is required for the water pipe,
then remove the top insert from the backplate
(fig.8).

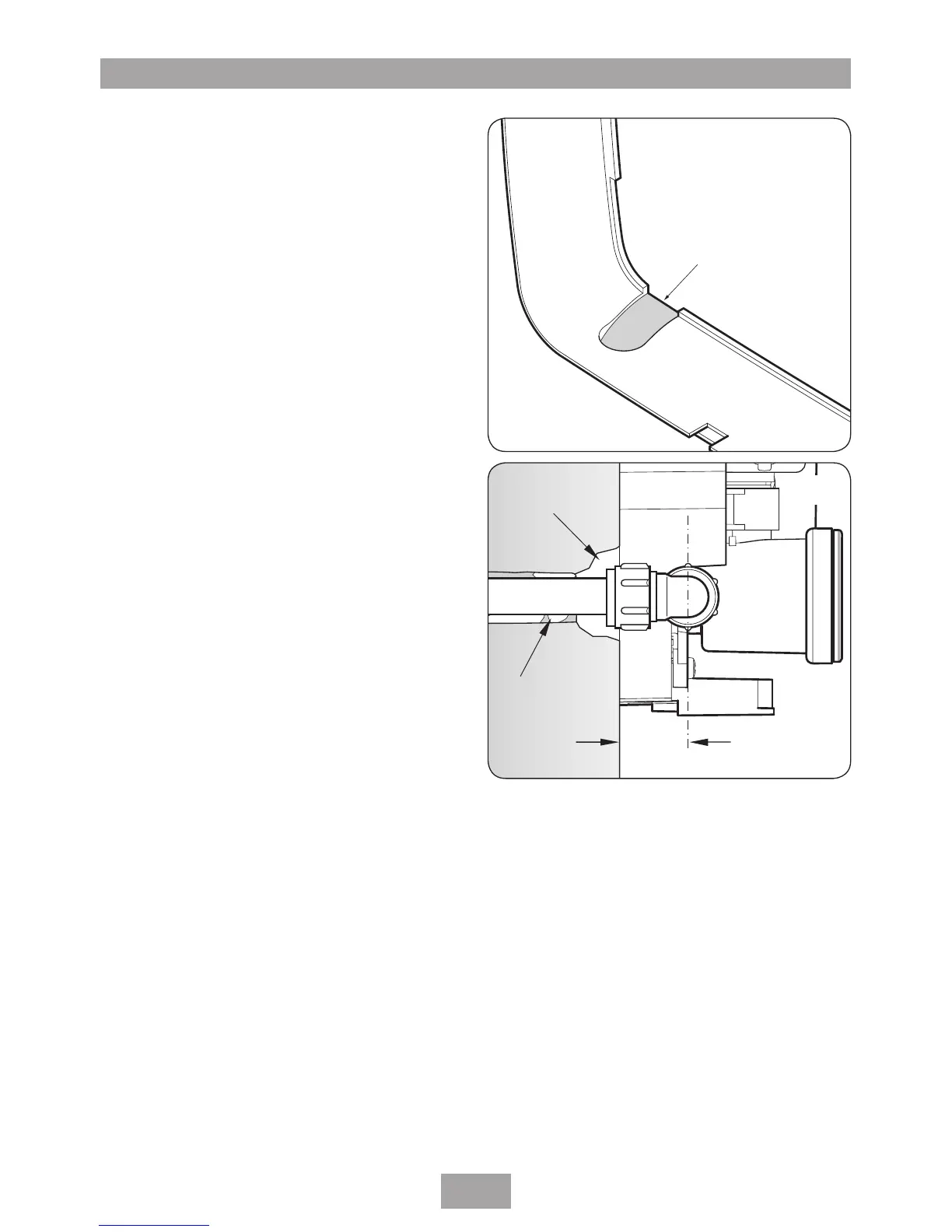

If a bottom entry is required for the cold water
pipe, then a hole will need to be cut out of the
trimplate
(fig.9).
If entry is from the back, the nut of the
compression fitting will be partially behind the
surface of the wall
(fig.10). This area must be
left clear when plastering over the pipework to
make the nut accessible for future adjustments.
IMPORTANT: Using a suitable sealant, always
seal around the incoming pipework to
prevent water entering the wall.
Note: Deviations from the designated entry
points will invalidate product approvals.
