Maintenance and Adjustment
Inspection
Check that there is 2 - 3 mm clutch lever free
play at the lever.
If there is an incorrect amount of free play,
adjustments must be made.
Adjustment
Loosen the knurled locknut at the lever end
of the clutch cable and turn the adjuster
sleeve until the correct amount of clutch lever
free play is achieved.
Tighten the knurled locknut against the
clutch lever assembly.
If correct adjustment cannot be made using
the lever adjuster, use the cable adjuster at
the lower end of the cable.
Loosen the adjuster locknut.
Turn the outer cable adjuster to give
2 - 3 mm of free play at the clutch lever.
Tighten the locknut.
Brakes
Brake Wear Inspection

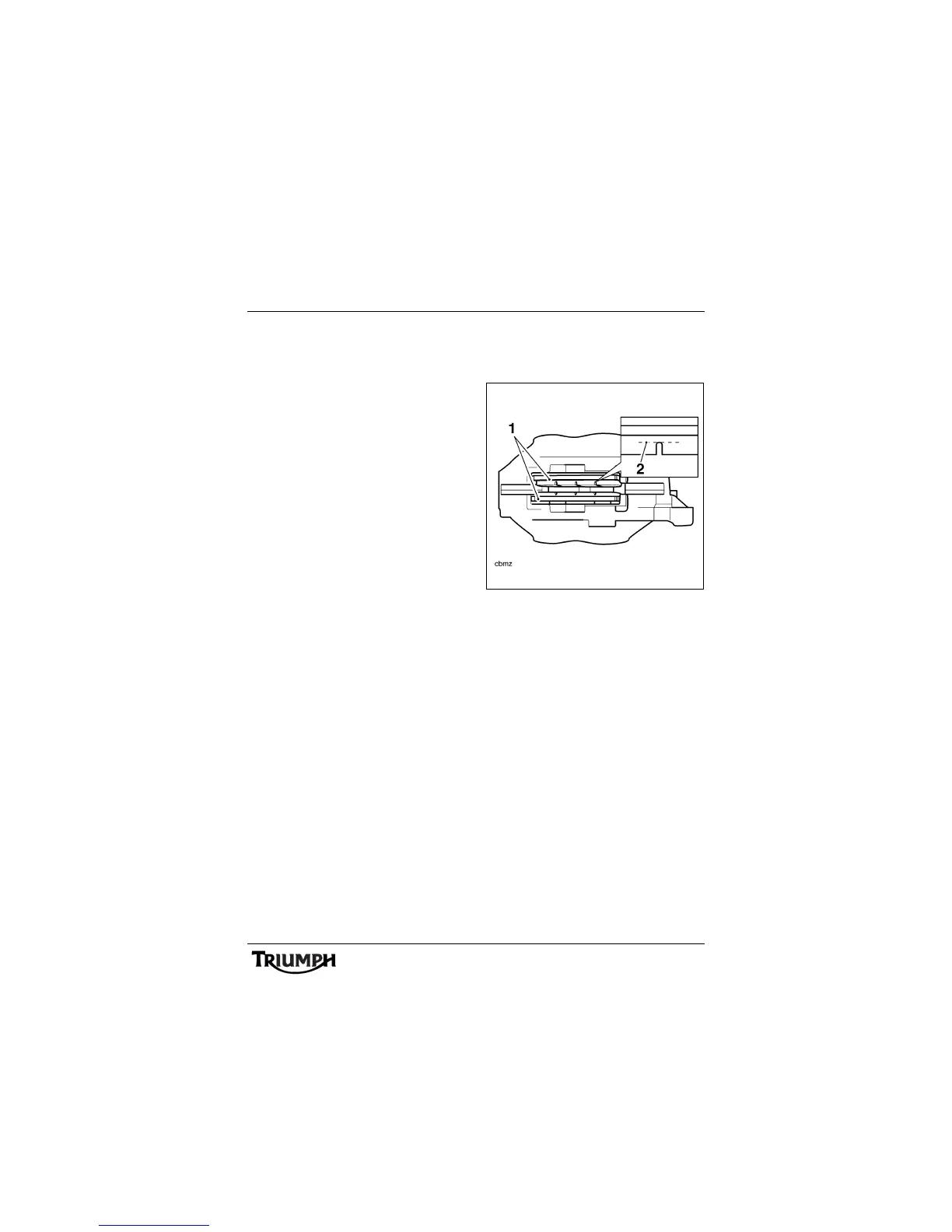

1. Brake pads
2. Minimum thickness line
Brake pads must be inspected in accordance
with scheduled maintenance requirements
and replaced if worn to, or beyond the
minimum service thickness.
If the lining thickness of any pad (front or rear
brakes) is less than 1.5 mm (0.06 in), that is, if
the pad has worn down to the bottom of the
grooves, replace all the pads on the wheel.
