Maintenance and Adjustment

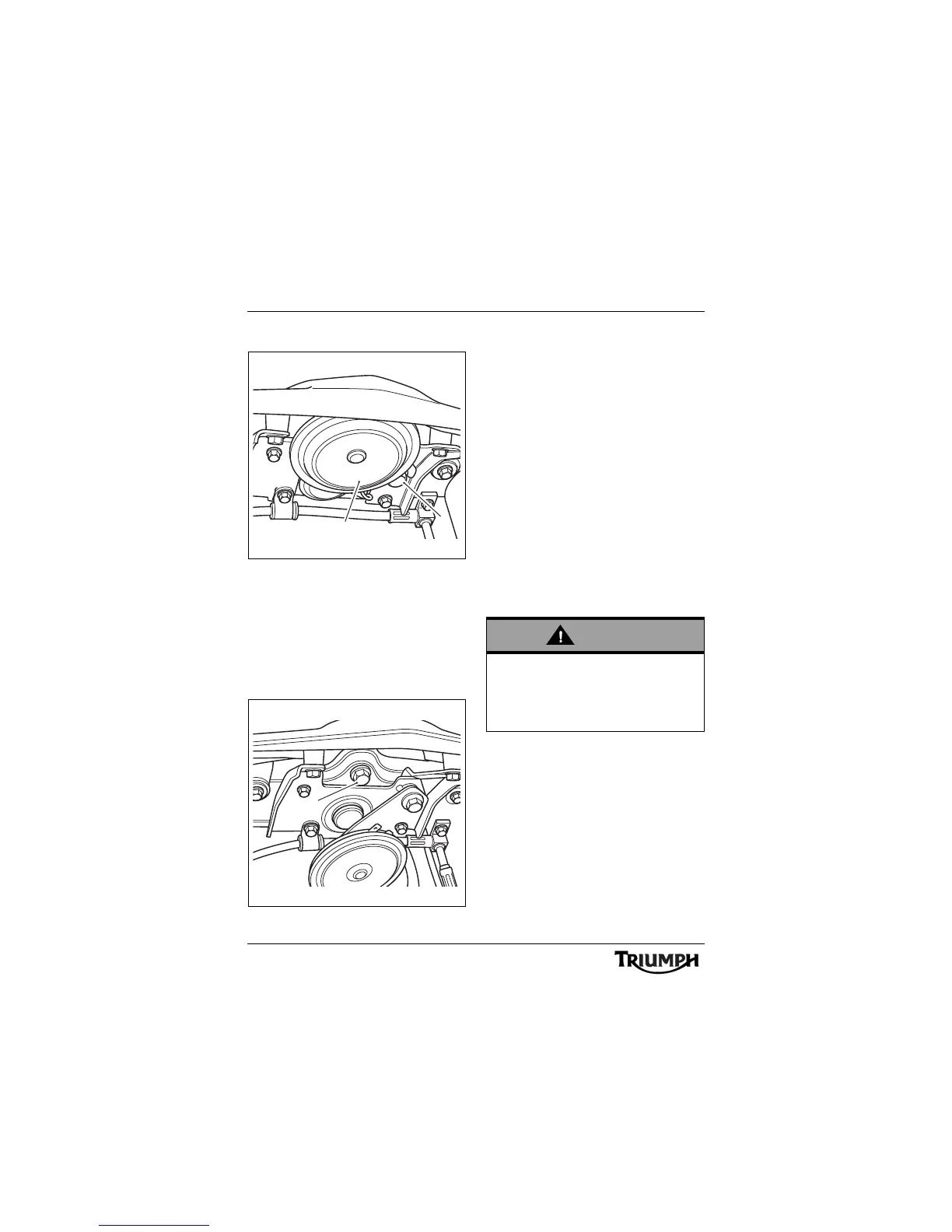

Headlight Horizontal Adjustment
1. Horn bracket fixing
2. Horn
The horizontal beam of the headlight can be
adjusted.
Turn on the ignition to switch on the
headlight dipped beam.
Slacken the horn bracket fixing and move the
horn to access the headlight bracket fixing.
.
1. Headlight bracket fixing
Slacken the headlight bracket fixing
sufficiently to allow restricted movement of
the headlight.
Adjust the position of the headlight to give
the required beam setting.
Tighten the headlight bracket fixing to
35 Nm.
Re-check the headlight beam setting.
Move the horn to its original position and
tighten the horn bracket fixing to 18 N m .
Turn the ignition switch off to turn off the
headlight when the beam setting is
satisfactorily set.
Headlight Bulb Replacement
It is necessary to remove the headlight from
the headlight bowl to gain access to the
bulbs.
Remove the seat.
Disconnect the battery, negative (black) lead
first.
2
1
ceoa
1
ceoc
Warning
The bulbs become hot during use. Always
allow sufficient time for the bulbs to cool
before handling. Avoid touching the glass
part of the bulb. If the glass is touched or
gets dirty, clean with alcohol before re-use.
