Maintenance and Adjustment

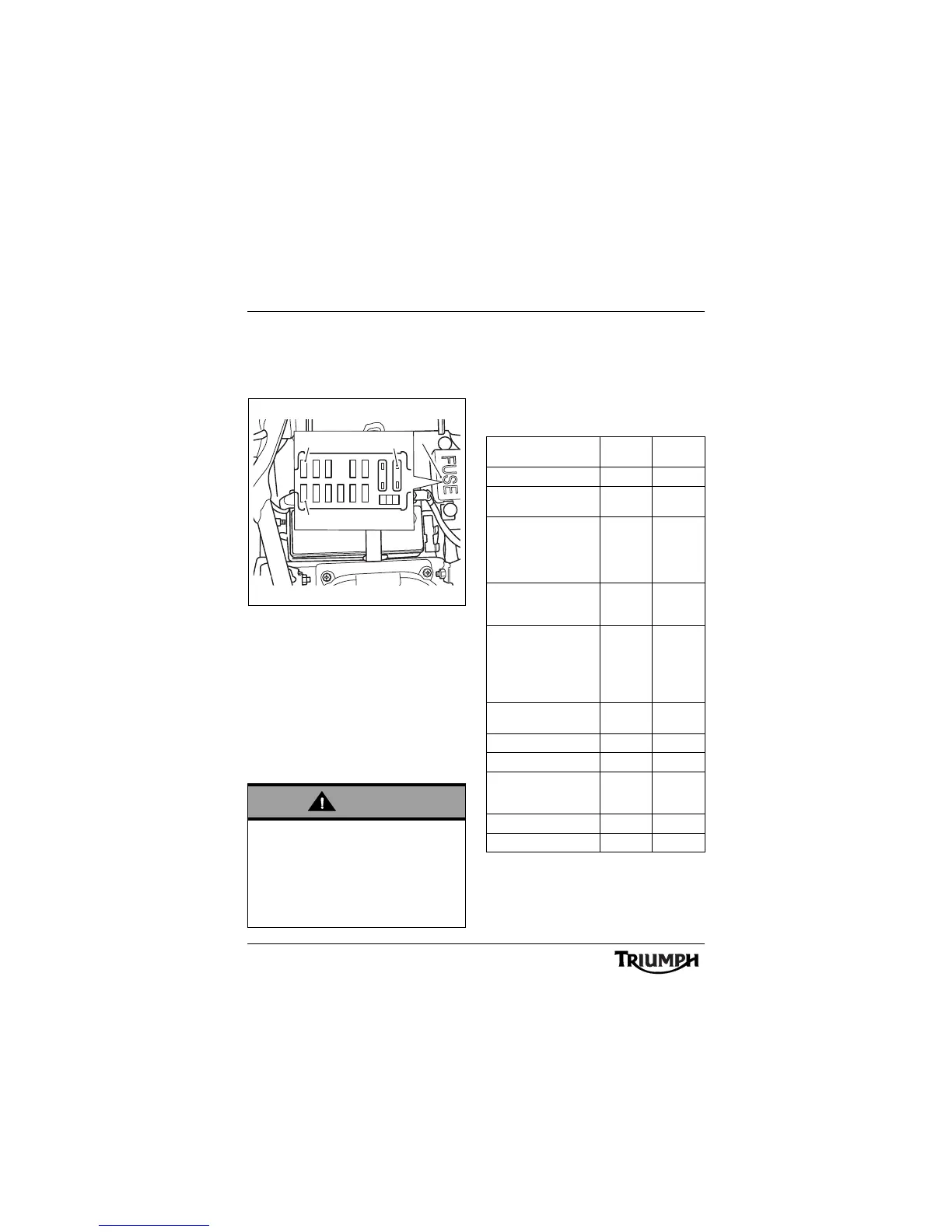

Fuse Box
Note:
• Fuse position eight is not used.
1. F u s e b ox
2. Spare fuses
Note:
• Numbers shown in the diagram
correspond to the fuse position
numbers in the table overleaf.
The fuse box is located beneath the rider’s
seat.
To allow access to the fuse box, the rider's
seat must be removed.
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the table below to establish which fuse
has blown.
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
1
cenr1
10
11
9876
54321
22
2
Circuit Protected Rating
(Amps)
Position
Accessory lights 15 1
Ignition switch main
feed
30 2
Accessory socket,
instrument memory,
heated grips, global
positioning system
(GPS)
10 3
Alarm, diagnostic
connector, indicators,
brake lights, horn
15 4
Instruments, fuel pump
relay, starter relay,
engine management
system relay, engine
control module, fall
detection switch
10 5
Engine management
system
20 6
Cooling fan 15 7
Not used - 8
Upper and lower
headlight beams, starter
solenoid
15 9
Position lights 5 10
Main fuse 30 11
