Triumph Tiger XRT User Manual

Maintenance
203
Headlight Adjustment
Tiger 1200 XR Only
The headlights can be adjusted by
means of vertical and horizontal
adjustment screws located on the rear
of each headlight. In addition, the
headlight unit is equipped with an easily
accessible adjuster to allow the vertical
adjustment to be corrected when the
motorcycle is fully loaded.

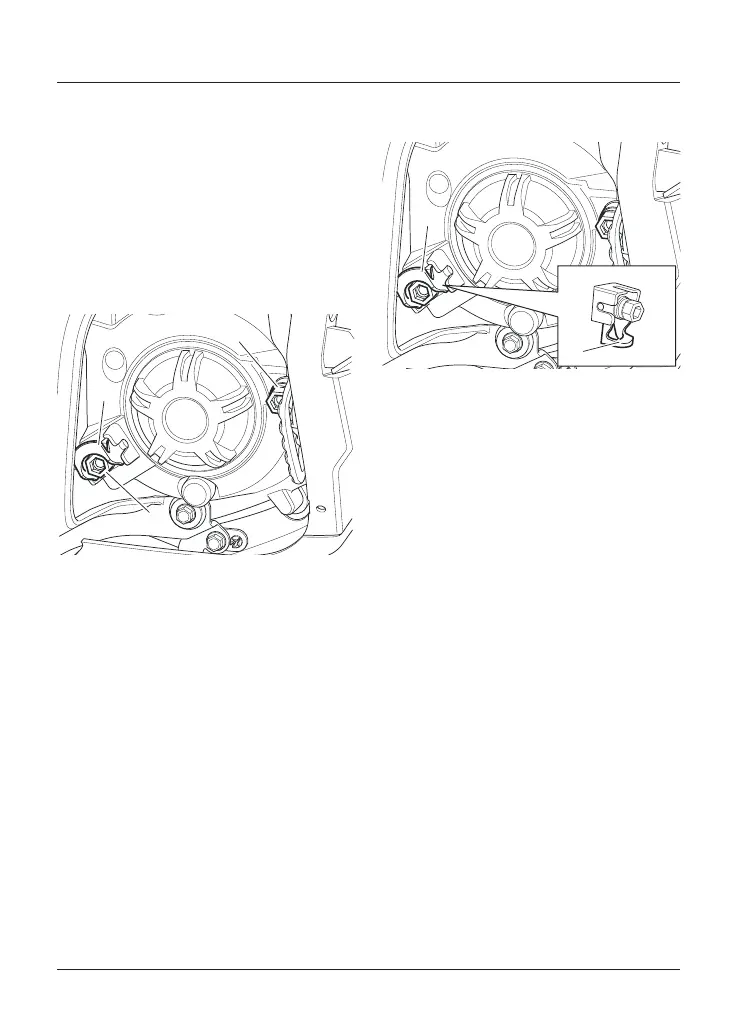

3
2
1
1. Horizontal adjustment screw
2. Vertical adjustment screw
3. Headlight adjuster lever for loaded
conditions
To adjust the headlight:
• Switch the headlight dipped beam
on.
• Turn the vertical adjustment screw
on the headlight clockwise to raise
the beam or counterclockwise to
lower the beam.
• Turn the horizontal adjustment
screw clockwise to move the beam
to the right or counterclockwise to
move the beam to the left.
• Switch the headlights off when the
beam settings are satisfactory.
Headlight Adjustment Lever for
Loaded Conditions
1
2
1. Headlight adjuster lever (unloaded
position)
2. Headlight adjuster lever (loaded
position)
For normal (unloaded) conditions the
headlight adjuster lever should be set in
the horizontal position (1).
For loaded conditions rotate the
headlight adjuster downwards until it
stops (2). This will lower the headlight
beams by approximately 2°.

Triumph Tiger XRT Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Transmission	6-speed
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	O-ring chain
Frame	Tubular steel trellis frame
Wheels	Cast aluminium alloy
Power	70 kW
Fuel Capacity	20 L (5.28 US gal)
Wet Weight	221 kg
Rear Suspension	Showa monoshock, adjustable rebound and compression damping
Front Brakes	Twin 305 mm floating discs
Rear Brakes	Single 255 mm disc
Tires (Front)	120/70
Tires (Rear)	170/60 R17
Electronics	Traction control, ABS, Cruise control, Heated grips
