P. 58 — User manual V3
Quick release locking levers

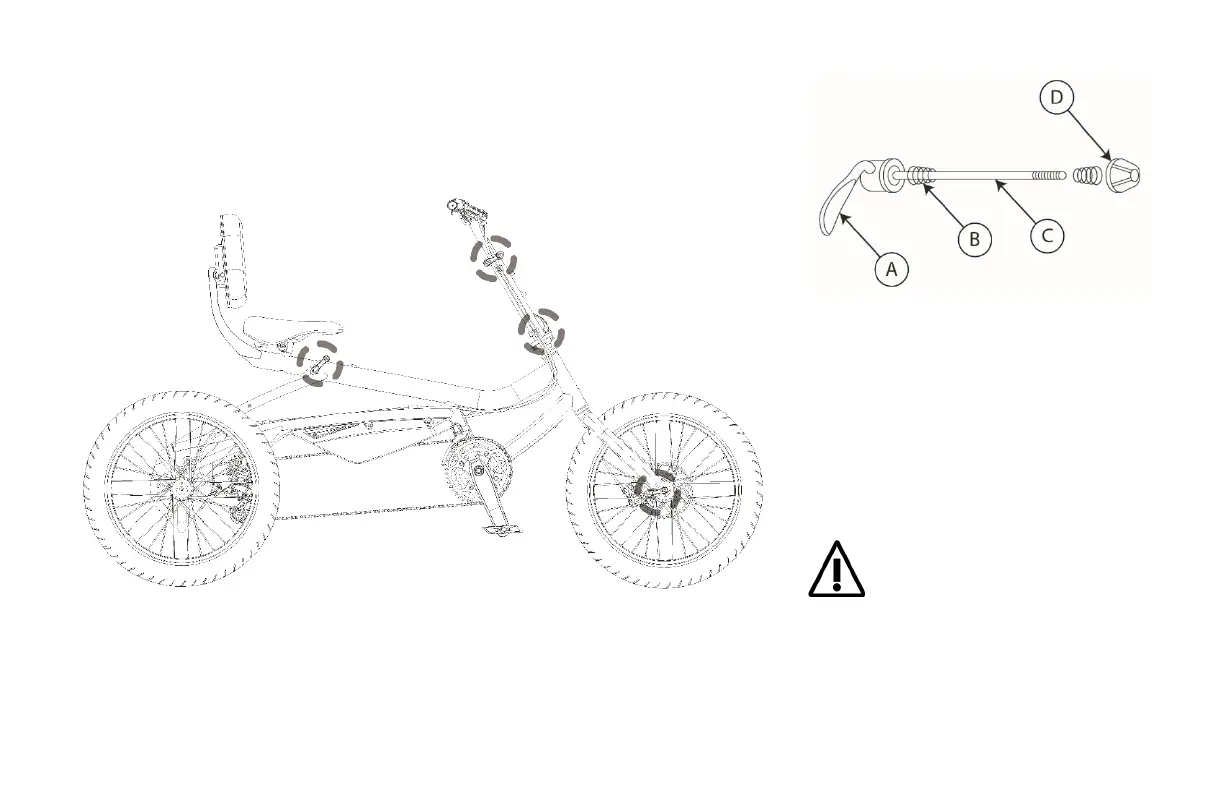

Common locations of quick release levers
Common components of a quick release locking lever
A. Tightening lever B. Centering spring
C. Threaded axle D. Adjustment nut
This type of system is most commonly used
to attach wheels to the frame and fork as
well as to tighten adjustable components
such as the seat post and handlebar stem.
They allow for quick tool-free adjustments.
Quick-release locking levers are very
safe and reliable mechanisms. However,
they need to be properly adjusted to
ensure their efficiency and your safety.
Make sure you understand their function
before using them. Failure to properly
use a quick release locking lever could
result in serious injuries or even death
