P. 59

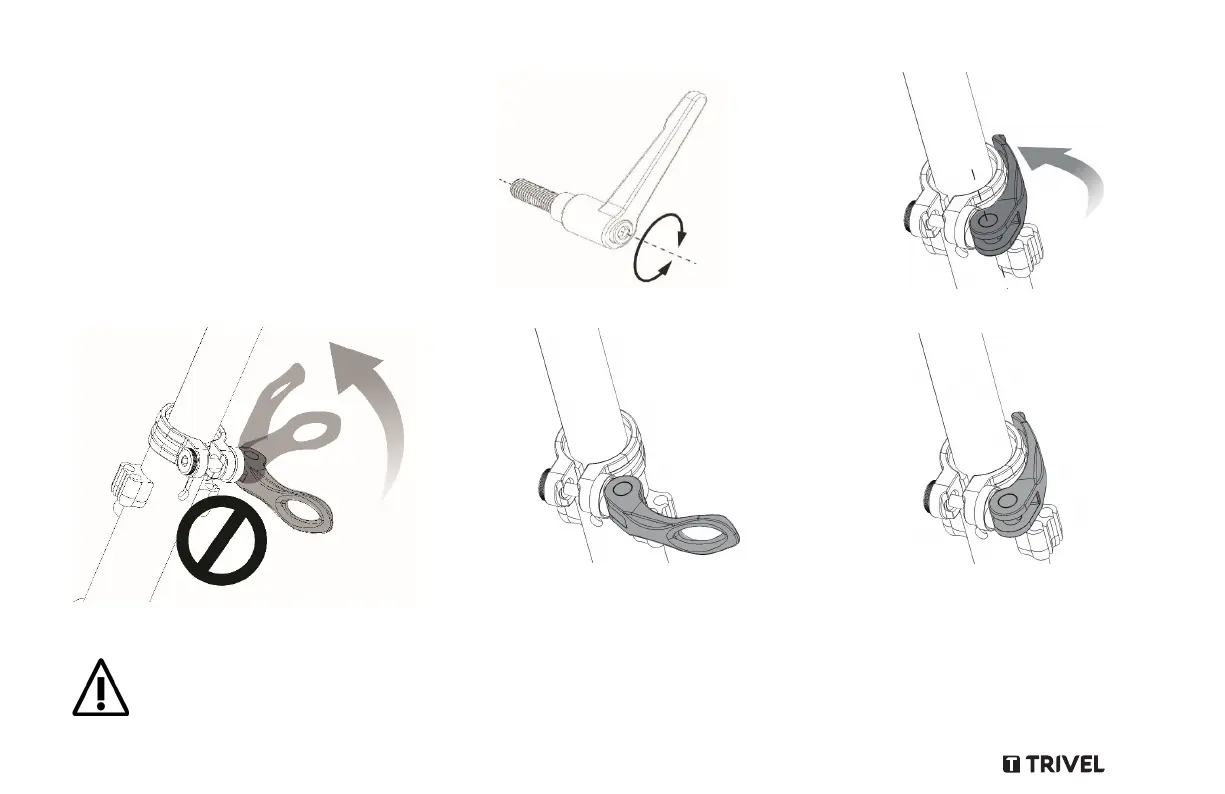

Using a quick release locking lever
A quick release locking lever uses a cam
mechanism to tighten elements together.
As opposed to a ‘conventional’ tightening
handle, a quick release system works by
pushing the lever laterally, not by rotating
it radially.
It is important to understand this principle
in order to tighten the levers in a safe way
and avoid damaging the components.
Failure to properly use a quick release
locking lever could result in serious
injuries or even death
Conventional locking handle rotating radially
Quick release lever in ‘open’ position:
• Lever is loose (Do not ride)
•
For component attachment, removal or
adjustment
Quick release locking lever is pushed laterally
Quick release lever in ‘closed’ position:
• Lever is tight (OK to ride)
•
Component can’t be removed or
adjusted
