Trojan Iginte 370 - Lower Cover Assembly

10
10334
ASSEMBLY STEPS

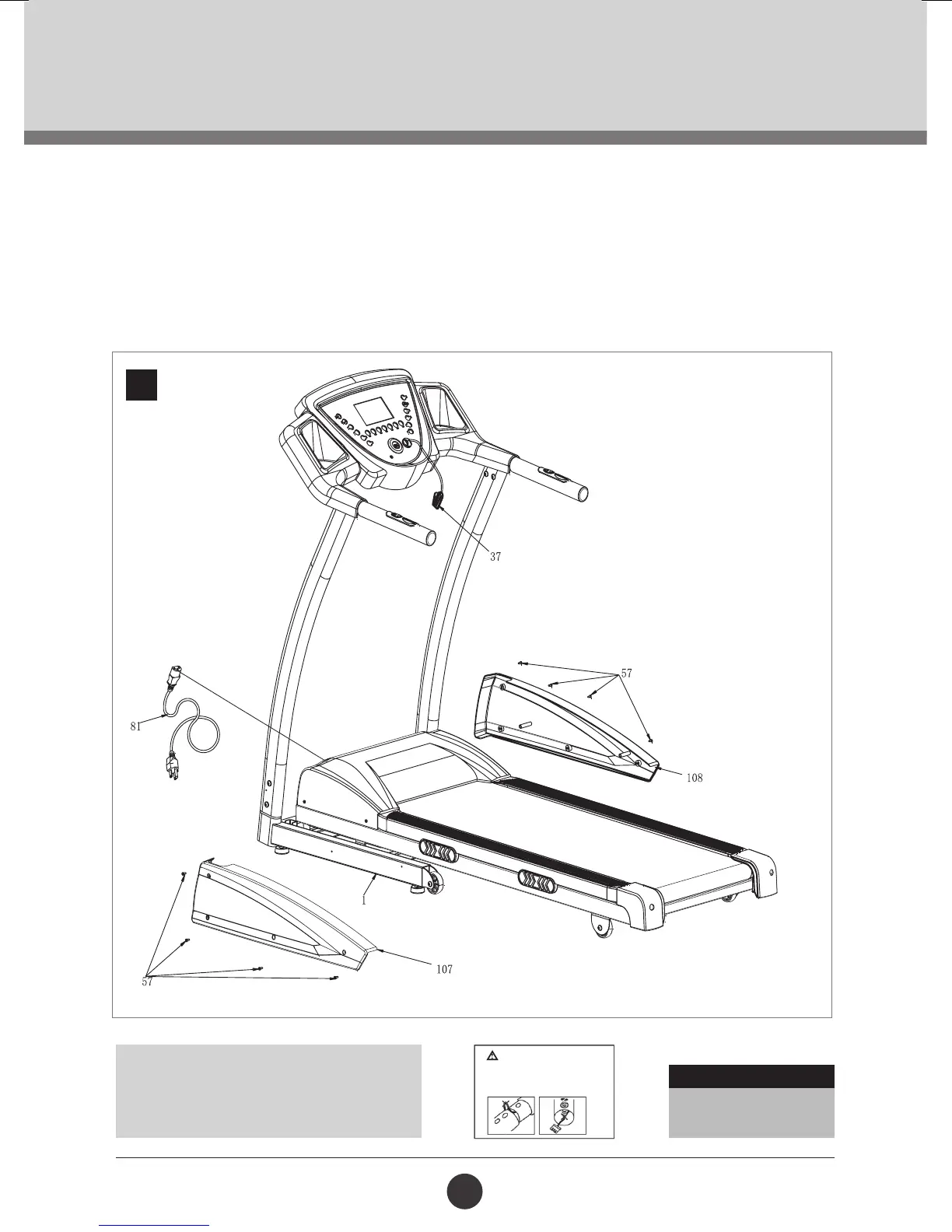

STEP 3: UPRIGHT LOWER COVER ASSEMBLY
• Attach the Left Upright Lower Cover (107) and Right Upright Cover (108) with four Cross Head
Screws (57) on either side of the Base Frame (1).
• Insert the Safety Key (37) into the slot on the Console.
• Insert the Power Cord into the slot on the rear of the Motor Cover.
3
CAUTION:
Ensure that cables are not damaged
during assembly or when
tightening screws.
Recheck
All bolts and nuts are
tightened securely
before using the machine
• Assemble product carefully
• Do not pinch or damage the wires
• Avoid damaging wires with bolts
CAUTION:
