ASSEMBLY STEPS
INSTRUCTIONS FOR ASSEMBLY
• Unpack the carton and use the parts check list to check that all parts are accounted for.
• Do not dispose of the packaging material until assembly is completed.
• Tools are provided for use in assembly.
• Majority of the parts here have been preassembled at the factory.

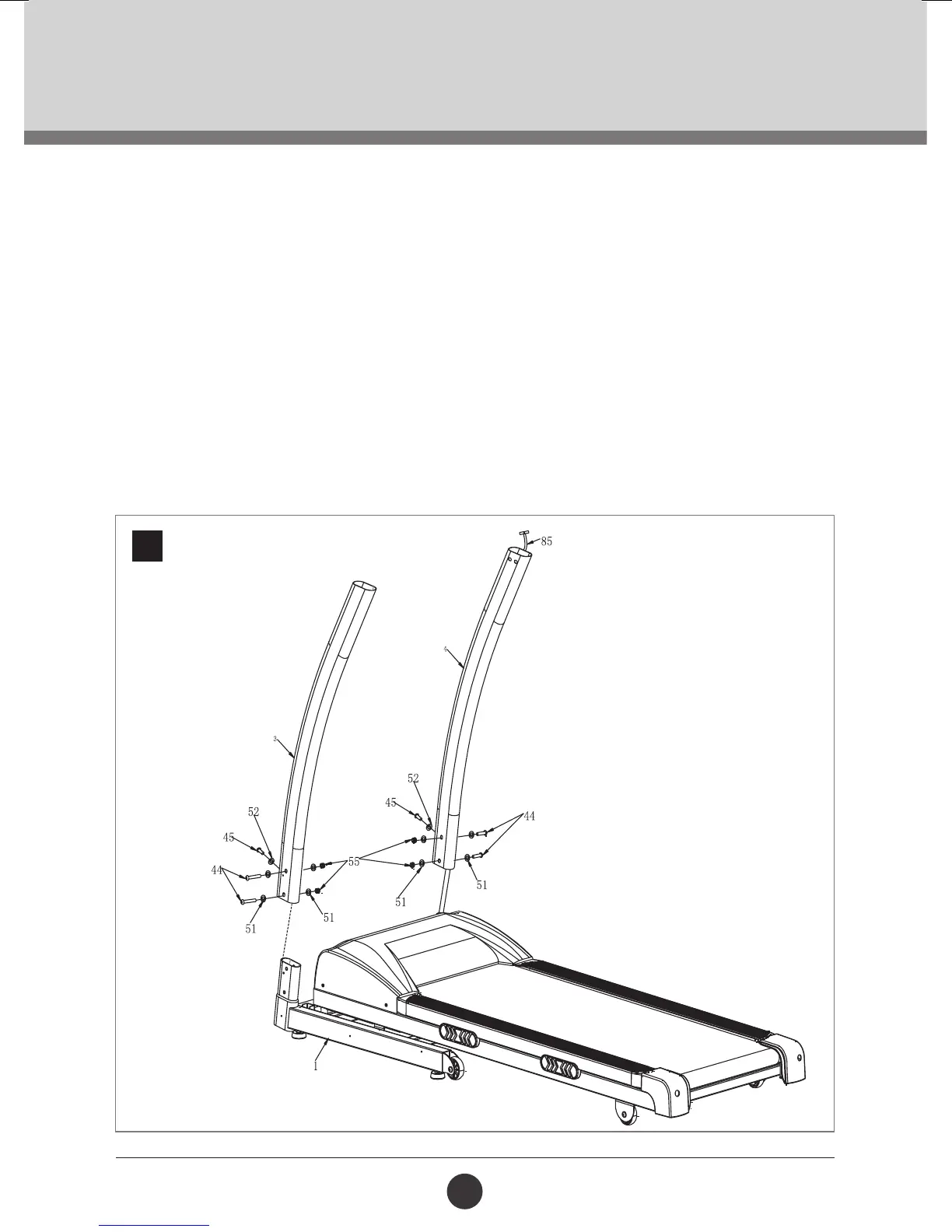

STEP 1: UPRIGHT BAR ASSEMBLY
• Pull the Base Frame Connect Wire (85) up through the Right Upright Bar (4). Connect the Left / Right
Upright Bar (3 / 4) to the Base Frame (1) with one Cup Head Hex Screw (45) and one Flat Washer
(52) on the back of the Upright Bars.
• Insert two Cup Head Hex Screw (44) and two Flat Washers (51) on the outsides of the
Upright Bars (3 / 4).
Note: Take care not to pinch the wires during this step.
