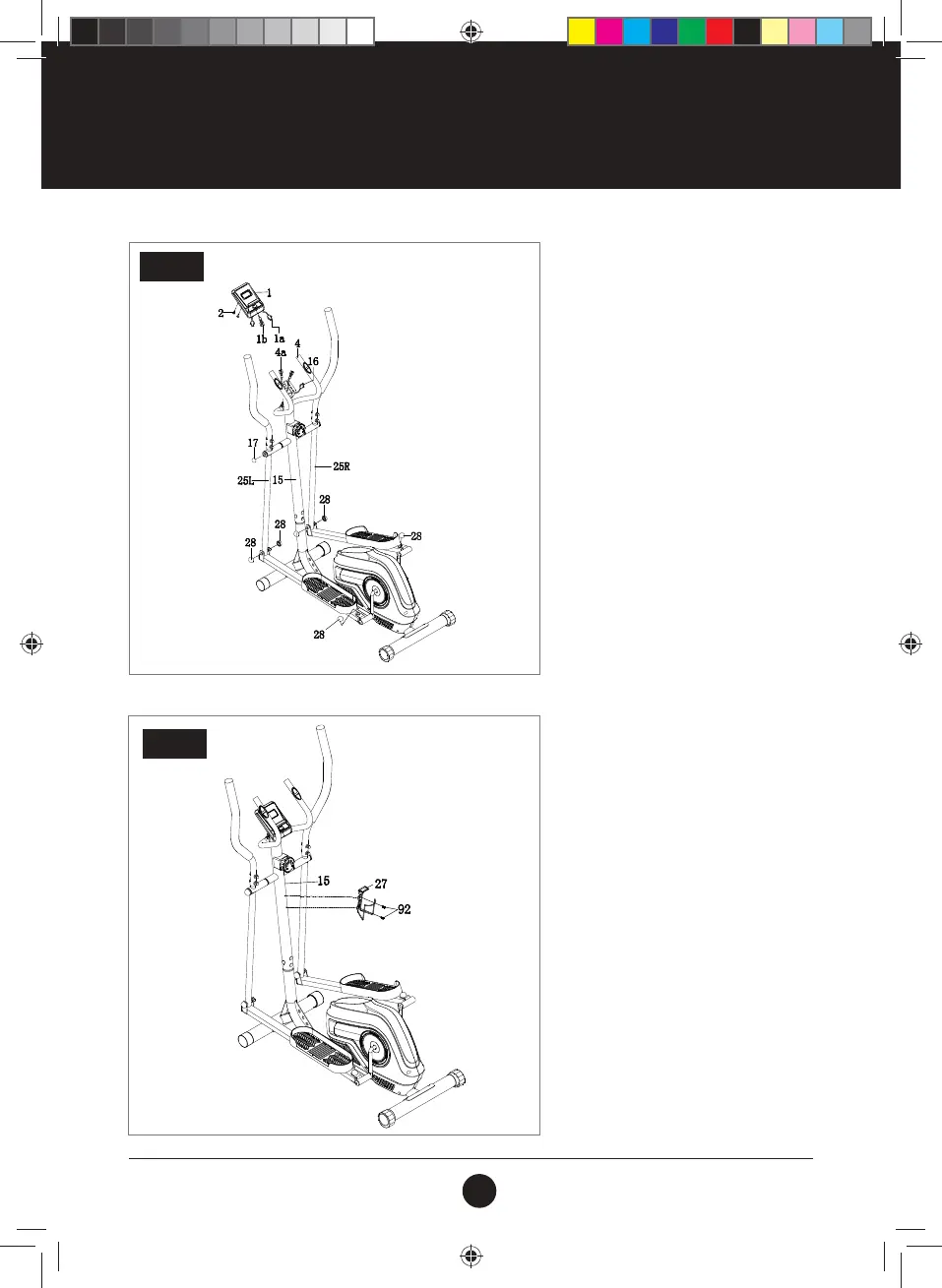

STEP 5:
Connect Handle Wire (1a) and (1b),
then connect the Sensor wire (16)
to the Console (1).
Fix the Console (1) onto the Upright
Post (15) with Screw (M5) (2).
STEP 5
ASSEMBLY STEPS
STEP 6:
Attach the Water Bolt Holder (27)
to the Upright Post (15) using
Screw (M5 X 12) (92).
STEP 6
