Trojan RESPONSE 100 User Manual

10161 - 7
4. ASSEMBLY STEPS

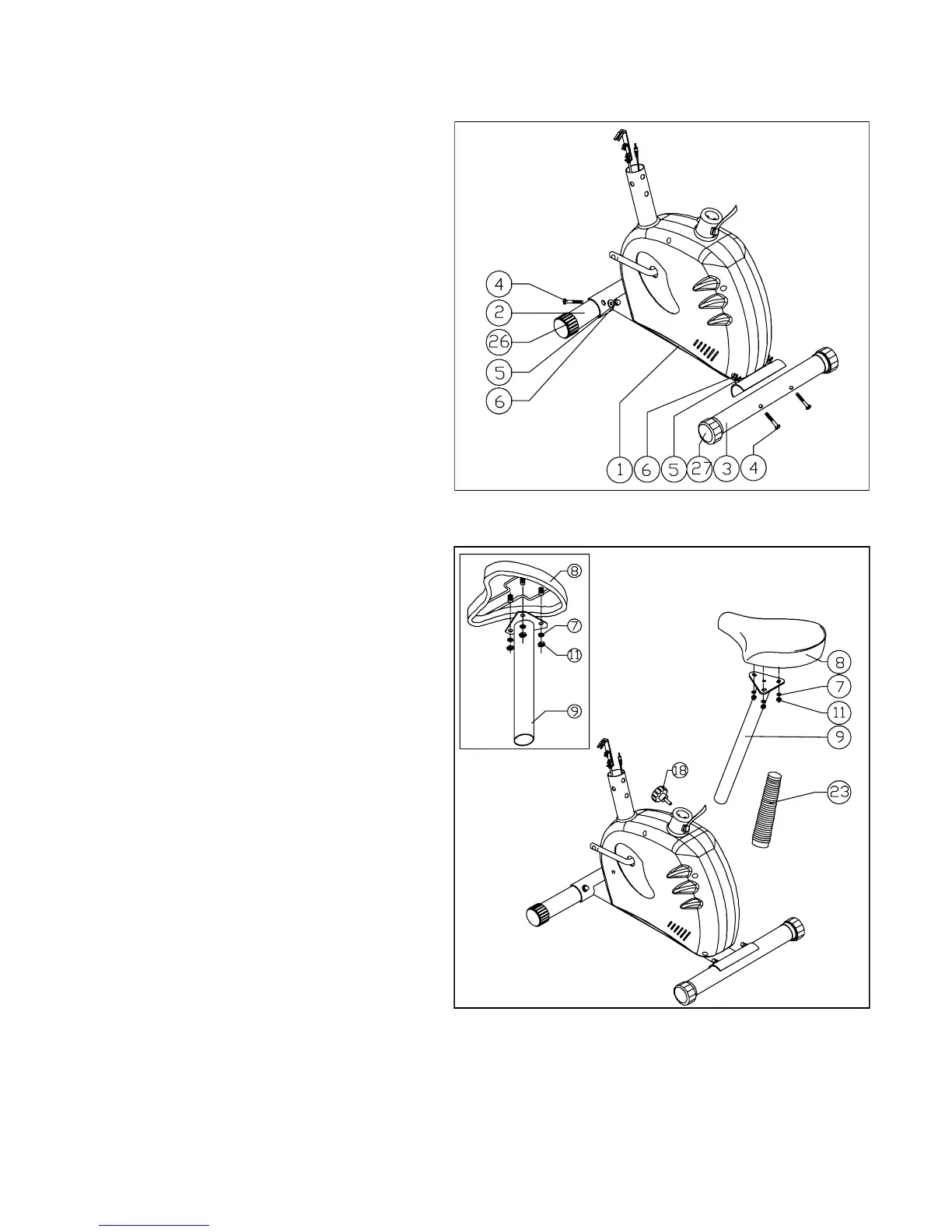

STEP 01
• AttachtheFrontStandTube(2)andtheRear
Stand Tube (3) onto the Main Body (1).
• Tightenthe2Nuts(6),2Bolts(4)and2Washers
(5) using the spanner supplied on both Front and
 BackStandTube.
STEP 02
• Removethe3Nuts(11)andthe3Washers(7)
from the Seat (8).
• PlacetheSeat(8)ontheSeatPost(9)and
secure using the 3 Nuts (11) and 3 Washers (7).
• PuttheSleeve(23)ontotheSeatPost(9).
• LoosentheAdjustmentKnob(18).
• SlidetheSeatPost(9)intotheMainBody(1).
• LineuptheholesontheSeatPost(9)andthe
Main Body (1).
• TightentheAdjustmentKnob(18)tosecure.
