ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1: FRONT AND REAR STABILISERS ASSEMBLY
Attach the Front Stabiliser (6) onto the front curve of the Main Frame (1) with 2 Bolts (M1O x 56) (35),
2 Arc Washers (Ø1O x Ø20 x 1.5) (36) and 2 Cap Nuts (M1O) (34). Tighten Cap Nuts with the Multi Hex
Tool (S13, S14, S15) provided.
Attach the Rear Stabiliser (4) onto the front curve of the Main Frame (1) with 2 Bolts (M1O x 56) (35),
2 Arc Washers (Ø1O x Ø20 x 1.5) (36) and 2 Cap Nuts (M1O) (34). Tighten Cap Nuts with the Multi Hex
Tool (S13, S14, S15) provided.
STEP 2: LEFT AND RIGHT FOOT PEDALS ASSEMBLY
The Cranks, Pedal Shafts and Foot Pedals are marked “R” for Right and “L” for Left.
Insert the pedal shaft of the Left Foot Pedal (20) into the threaded hole in the left crank, turn the pedal shaft by hand in a
counter-clockwise direction until secure.
Note: DO NOT turn the pedal shaft in a clockwise direction, as doing so will strip the threads. Tighten the pedal shaft of the
Left Foot Pedal (20) with the Multi Hex Tool (S13, S14, S15) and the Phillips Screwdriver provided.
Insert the pedal shaft of the Right Foot Pedal (21) into the threaded hole in the right crank turn the pedal shaft by hand in a
clockwise direction until secure. Tighten the pedal shaft of the Right Foot Pedal (21) with the Multi Hex Tool (S13, S14, S15),
using the Phillips Screwdriver provided.

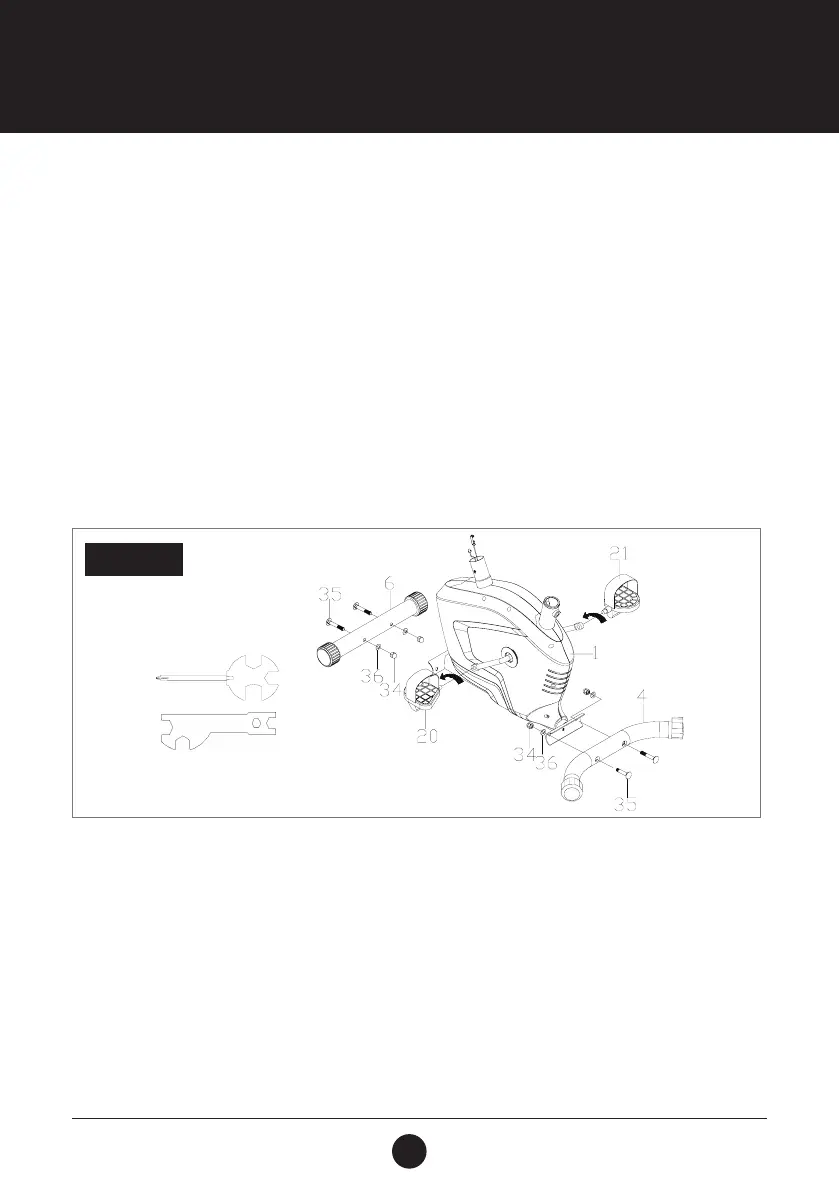

STEP 1, 2
