ASSEMBLY STEPS

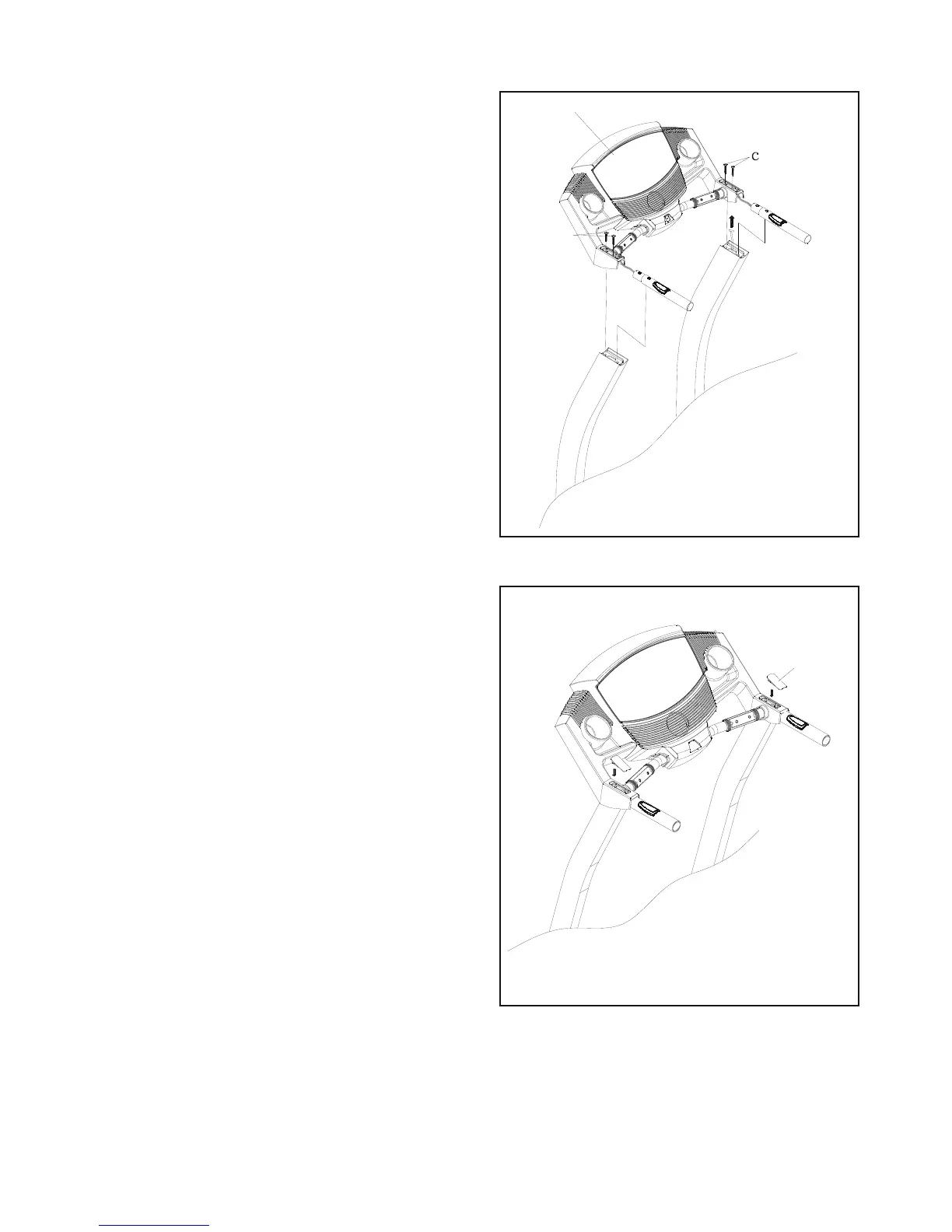

STEP 3
• Connect the Control Wires of the frame with the Con-
trol Wires in the Computer Consol (A)
• Place the Computer Consol (A) on the Upright. and
tighten with Allen Bolt (c)
NOTE:
In order to prevent any injury, two persons are required to
assemble the product. Please be aware that one person must
hold the upright tubes during the assembly process, to prevent
the tubes from falling.
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws.
STEP 4
• Cap the Protecting Cover (E) on the Handrails.
B
d
F
