1563-6
4. ASSEMBLY STEPS

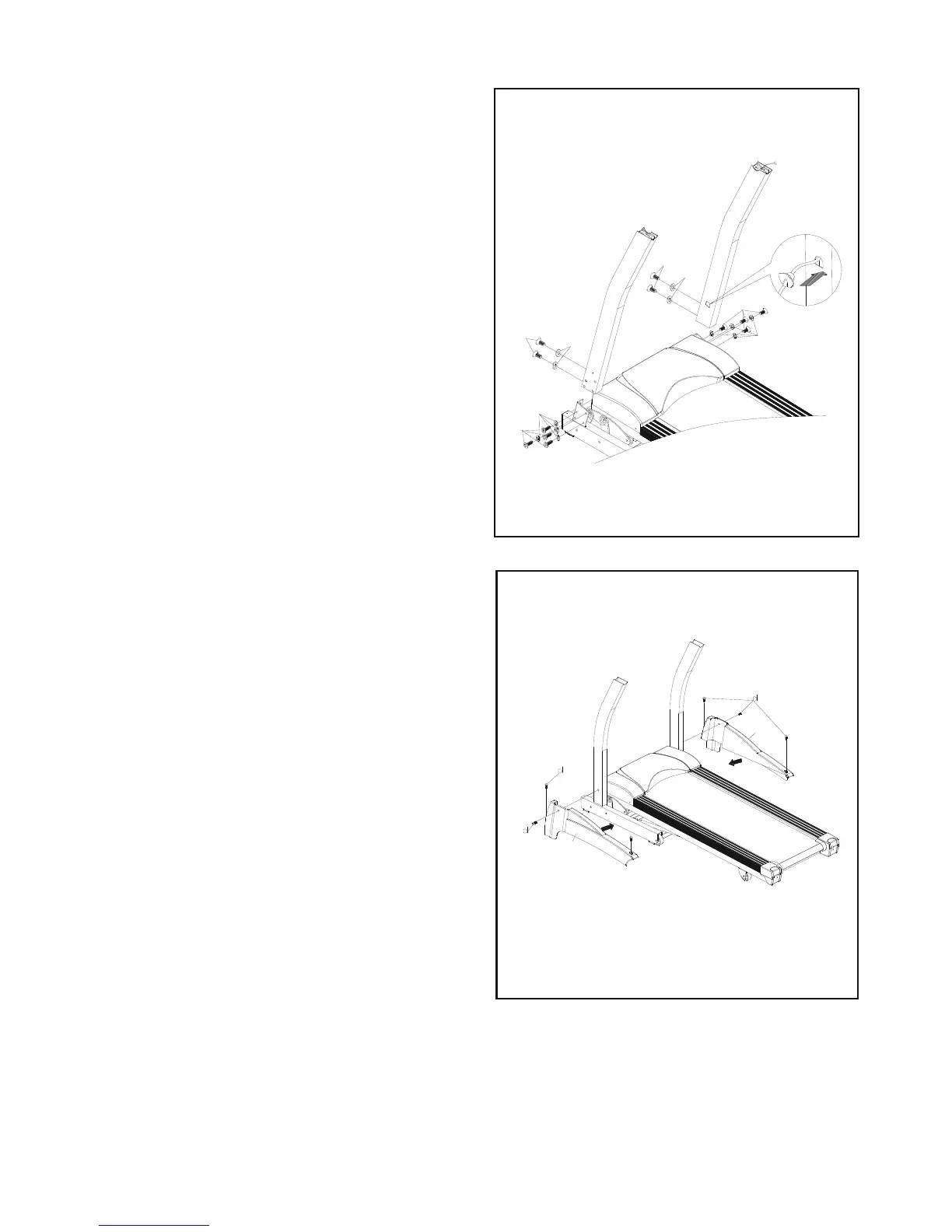

STEP 1
• Connect the Lower Control Wire of the Frame(B) to
the Guide Thread of the Right Upright (D), then pull it
into the Upright (D), and secure with wire ring, before
inserting into the Upright.
• Place the Uprights(C,D) on the Frame(B) and secure
with Allen Bolt(a) and Washer(b)
NOTE:
In order to prevent any injury, two persons are required to
assemble the product. Please be aware that one person must
hold the upright tubes during the assembly process, to prevent
the tubes from falling.
CAUTION:
Ensure that cables are not damaged during assembly or
when tightening screws.
STEP 2
• Insert the Side Covers (F, G) onto the Frame and tighten
with Screw (d)
• Pull the Control Wire to the outlet of the Upright.
C
D
a
b
a
b
a
b
a
b
*
)
To Next Page
