Trojan VISION 350 - Step 8: Butterfly Cable Routing

10173-18
5. ASSEMBLY STEPS
STEP 8

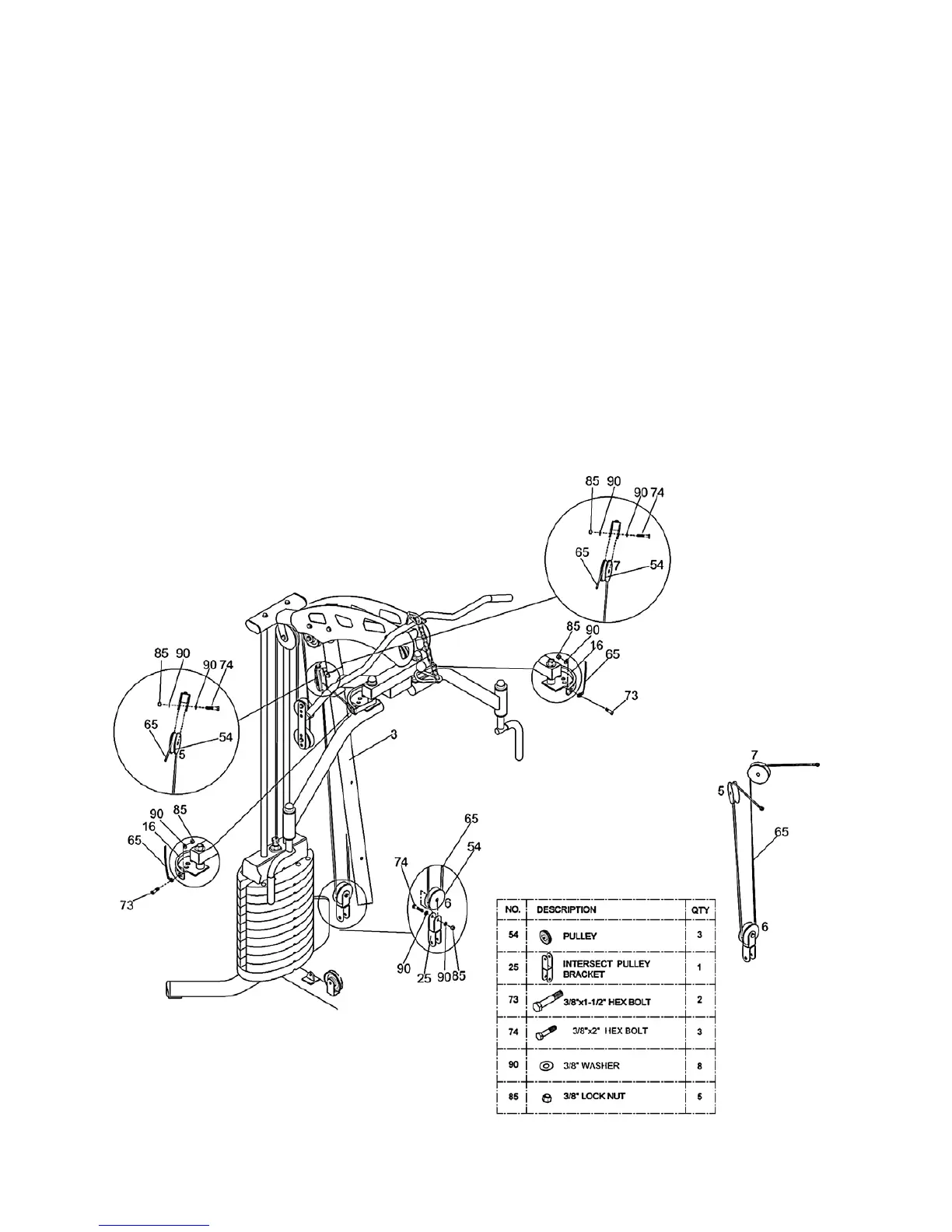

• ThreadtheButteryCable(65)throughthebracketsofunitasshowninthediagram.
• AttachoneendofButteryCable(65)toRightAdjustablePlate(16)usingone3/8”x1-1/2”HexBolt(73),one3/8”Washer
 (90)andone3/8”LockNut(85).
• WithButteryCable(65)ingrooveofPulley(54),installPulley(5)intoSinglePulleyBracket(23)usingone3/8”x2”
 HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).
• WithButteryCable(65)ingrooveofPulley(54),installPulley(6)intotopofIntersectPulleyBracket(25)usingone
 3/8”x2”HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).
• WithButteryCable(65)ingrooveofPulley(54),installPulley(7)intoSinglePulleyBracket(23)usingone3/8”x2”
 HexBolt(74),two3/8”Washers(90)andone3/8”LockNut(85).
• AttachoneendofButteryCable(65)toLeftAdjustablePlate(15)usingone3/8”x1-1/2”HexBolt(73),one
 3/8”Washer(90)andone3/8”LockNut(85).
