- 14 -

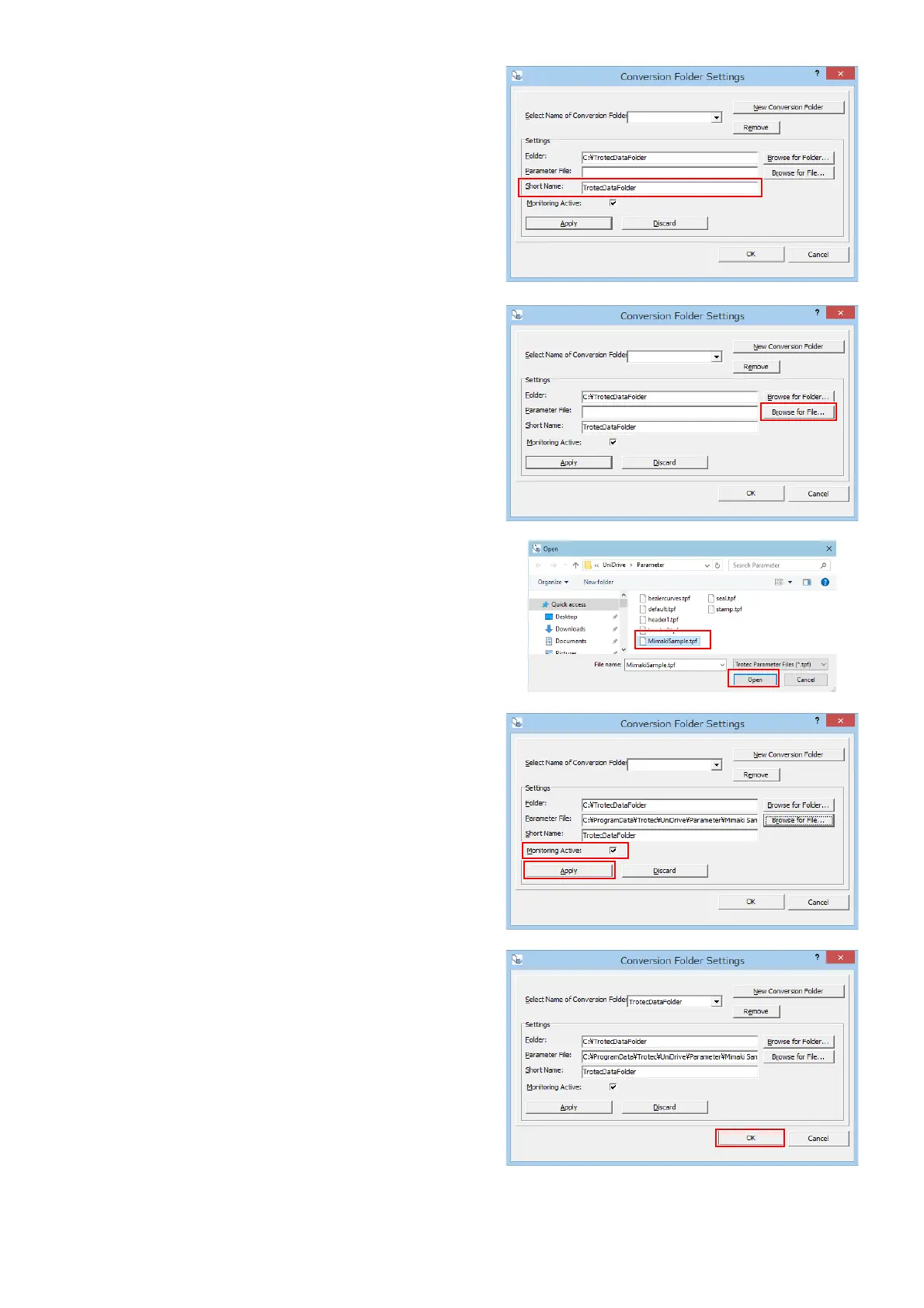

6. The conversion folder name is displayed
in [Short Name].
• This is the name shown in the [Select Name of
Conversion Folder] list. It is possible to change
this name.
7. Click the [Browse for File...] button to the
right of [Parameter File].
• Select the conversion folder loading conditions
(parameter file).
• The dialog to select the parameter file is dis-
played.
8. Select the cutting conditions parameter
file saved in "Creating a cutting conditions
parameter file (Trotec UniDrive )" (P.11)
and click [Open].
9. Confirm that the [Monitoring Active] check
box is checked and then click the [Apply]
button.
• When the same name as the [Short name] is dis-
played in [Select Name of Conversion Folder],
registration of the conversion folder is complete.
10. Click the [OK] button.
