Trotec TGP 1005 E - Assembly and Installation

EN 7
garden pump TGP 1005 E
Assembly and installation
Scope of delivery
• 1x Garden pump
• 1x Filter (pre-installed)
• 1x Wrench for water filler neck/prefilter
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Start-up
Positioning
Warning of electrical voltage
Do not position the device in damp shafts. There is risk
of short circuit!
Note
Positioning the device in damp shafts can result in
damage to the device caused by corrosion!
Select a suitable location for positioning the device. It should
meet the following criteria:
• The site of installation is protected from weather exposure
and wet conditions.
• The surface is horizontal and level.
• The site of installation can support the weight of the device
and the pumped media.
For a permanent installation, the feet(7) of the device can be
bolted to the ground.
Connecting the pipe or hose line
The device may be operated using either a hose line or a pipe.
Ex factory, the device is delivered with a 1" internal thread.
Please note the following:
• The device cannot be moved flexibly when using a solid
pipe.
• Use a pressure line and suction line with a diameter
corresponding to the size of the connections or above. A
smaller diameter causes pressure loss and thus reduces
the feed rate.
• The smaller the delivery head of the pressure line and
suction line, the higher the flow rate.
• Connected accessories can cause a pressure loss and
reduce the feed rate.
Additionally, please note the following when connecting flexible
hose lines:
Note
If you want to connect a flexible hose as pressure line,
do not use a suction hose or a non-pressure-resistant
hose. Use pressure-resistant hoses only.
Note
If you want to connect a flexible hose as suction line,
use a vacuum-tight suction hose only.
Connecting the pressure line
Warning
Make sure that all parts of the pressure line are
installed professionally. In case of an improper
assembly or when using unsuitable parts, there is a
risk of injury due to the pressurized pumping medium.

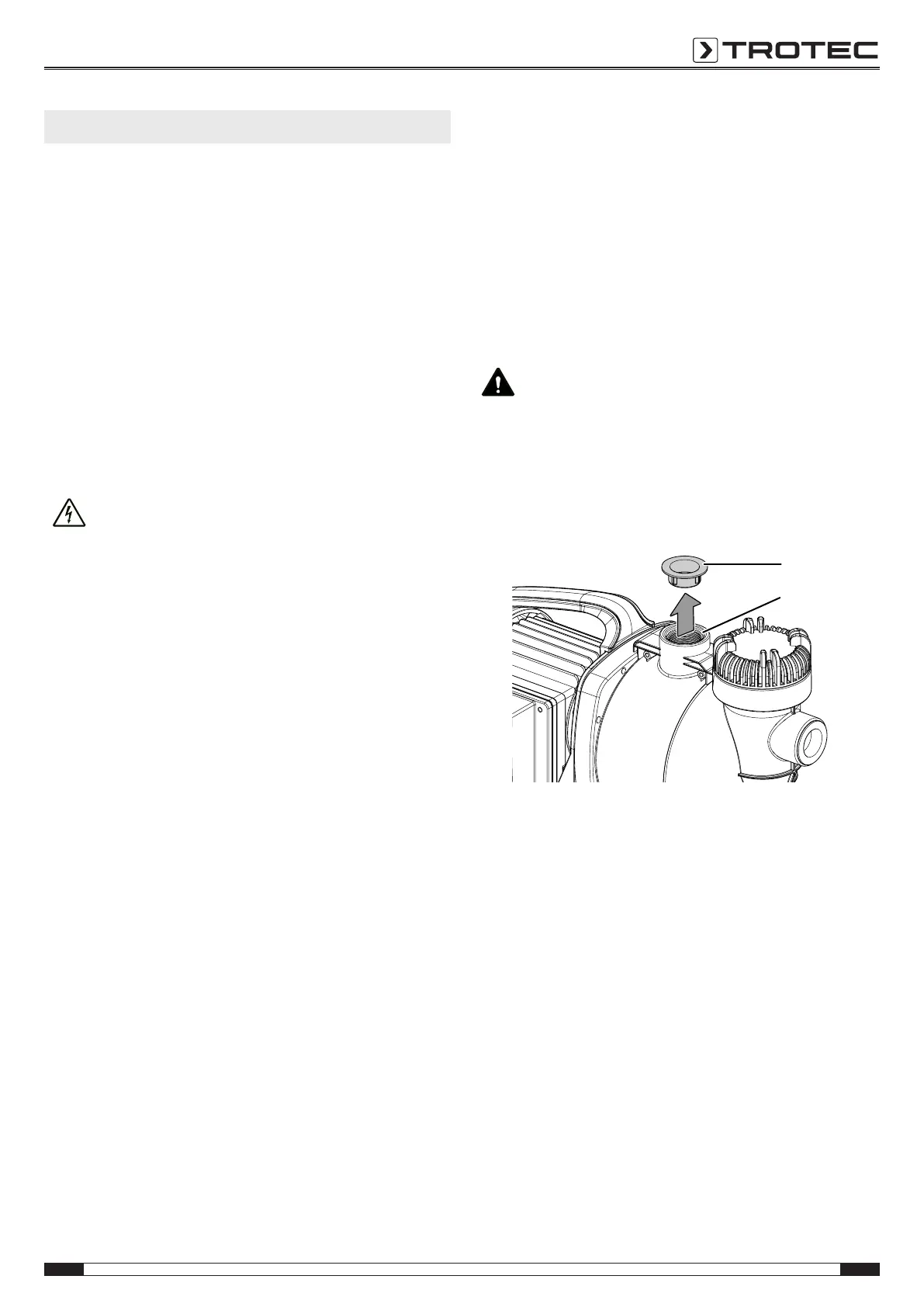

1. Remove the protective cap(9) from the pressure
connection(2).
9
2
Note
Keep the protective cap of the pressure connection so
you can use it when storing the device to protect the
inside of the device against dust and dirt.
