Troy-Bilt 609 - Page 29

REP.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
PART
NO.
747-1130
683-0197
711-0332
712-0206
712-0431
712-3004A
712-3083
714-0104
714-0145
716-0106
720-0311
732-0874
732-0934
736-0275
736-0921
736-3019
736-3084
738-0138
738-0143
741-0225
741-0715
746-0968
747-1111
756-1154
783-0678
783-0720A
710-0260

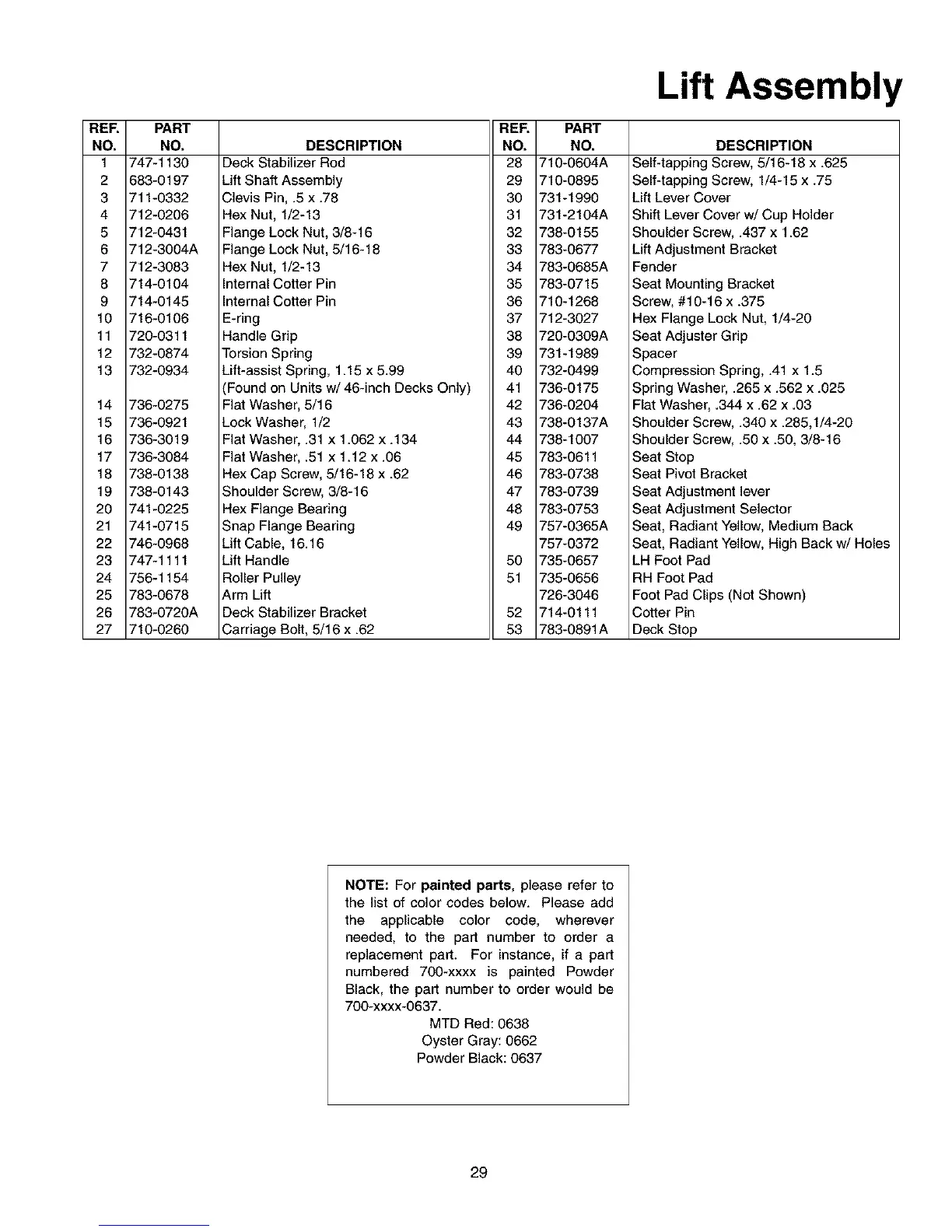

Lift Assembly
REF. PART
DESCRIPTION NO. NO.
Deck Stabilizer Rod 28 710-0604A
Lift Shaft Assembly 29 710-0895
Clevis Pin, .5 x .78 30 731-1990
Hex Nut, 1/2-13 31 731-2104A
Flange Lock Nut, 3/8-16 32 738-0155
Flange Lock Nut, 5/16-18 33 783-0677
Hex Nut, 1/2-13 34 783-0685A
InternaICotter Pin 35 783-0715
Internal Cotter Pin 36 710-1268
E-ring 37 712-3027
Handle Grip 38 720-0309A
Torsion Spring 39 731-1989
Lift-assist Spring, 1.15 x 5.99 40 732-0499
(Found on Units w/46-inch Decks Only) 41 736-0175
Flat Washer, 5/16 42 736-0204
Lock Washer, 1/2 43 738-0137A
Flat Washer, .31 x 1.062 x .134 44 738-1007
Flat Washer, .51 x 1.12 x .06 45 783-0611
Hex Cap Screw, 5/16-18 x .62 46 783-0738
Shoulder Screw, 3/8-16 47 783-0739
Hex Flange Bearing 48 783-0753
Snap Flange Bearing 49 757-0365A
Lift Cable, 16.16 757-0372
Lift Handle 50 735-0657
Roller Pulley 51 735-0656
Arm Lift 726-3046
Deck Stabilizer Bracket 52 714-0111
Carriage Bolt, 5/16 x .62 53 783-0891A
DESCRIPTION
Self-tapping Screw, 5/16-18 x .625
Self-tapping Screw, 1/4-15 x .75
Lift Lever Cover
Shift Lever Cover w/Cup Holder
Shoulder Screw, .437 x 1.62
Lift Adjustment Bracket
Fender
Seat Mounting Bracket
Screw, #10-16 x .375
Hex Flange Lock Nut, 1/4-20
Seat Adjuster Grip
Spacer
Compression Spring, .41 x 1.5
Spring Washer, .265 x .562 x .025
Flat Washer, .344 x .62 x .03
Shoulder Screw, .340 x .285,1/4-20
Shoulder Screw, .50 x .50, 3/8-16
Seat Stop
Seat Pivot Bracket
Seat Adjustment lever
Seat Adjustment Selector
Seat, Radiant Yellow, Medium Back
Seat, Radiant Yellow, High Back w/Holes
LH Foot Pad
RH Foot Pad
Foot Pad Clips (Not Shown)
Cotter Pin
Deck Stop
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Powder
Black, the part number to order would be
700-xxxx-0637.
MTD Red: 0638
Oyster Gray: 0662
Powder Black: 0637
29
