Troy-Bilt Squall 210 - Assembly and Setup; Carton Contents and Required Tools; Positioning the Upper Handle; Installing the Chute Assembly

Assembly & Set-Up
3
7
Contents of Carton
     Two Ignition Keys
     
     
NOTE: 
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
NOTE: All references to the left or right side of the snow thrower
are from the operator’s position. Any exceptions will be noted.
Tools Required
 /-inch wrench (or adjustable wrench)
 /-inch wrench (or adjustable wrench)
Assembly
Positioning the Upper Handle
 Remove the wing knob and carriage bolt from the top

remove the shoulder screw and flange lock nut below the
wing knob and carriage bolt.
Wing Knob
Wing Knob
Carriage Bolts

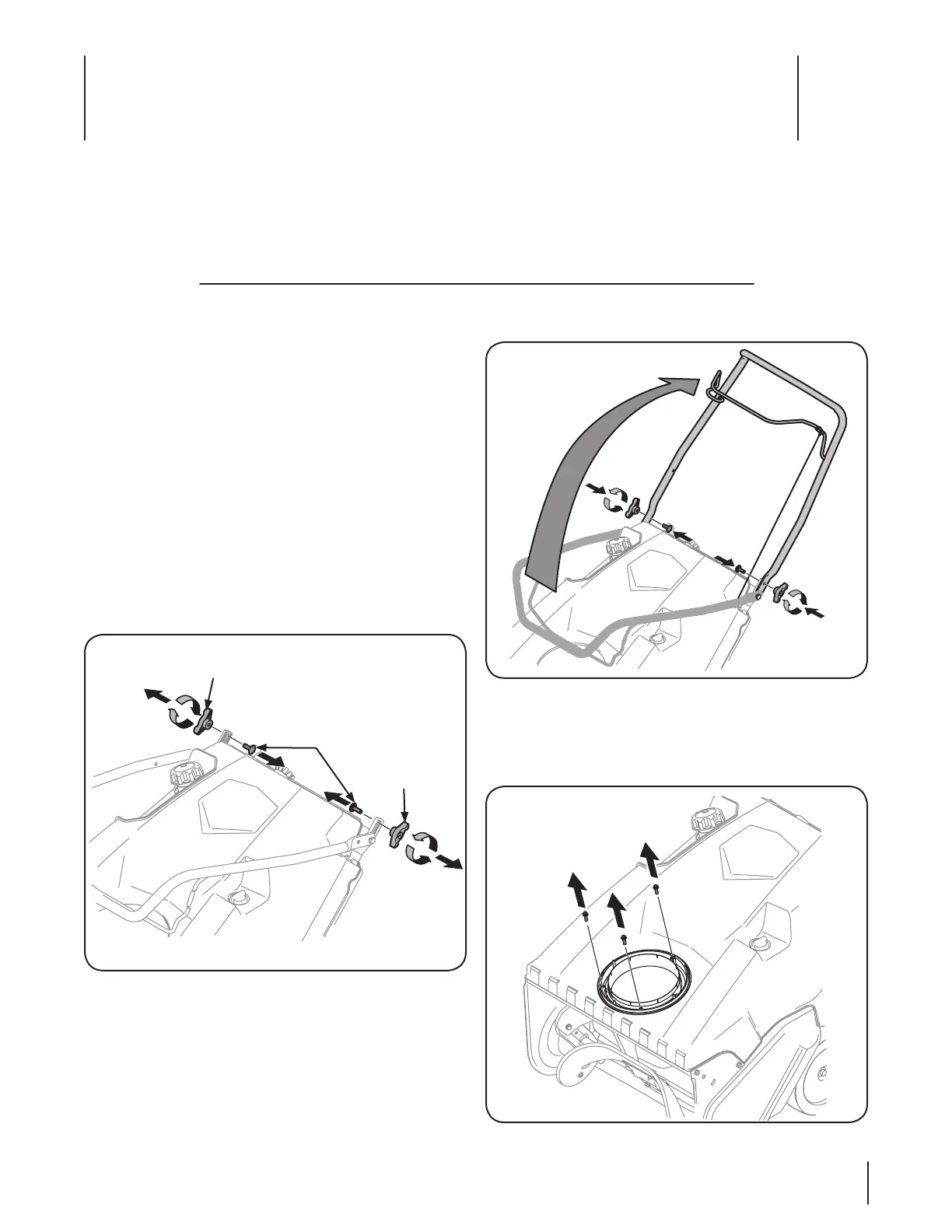

Figure 3-1
2. Pivot the upper handle into the operating position. Be sure
not to pinch any of the cables in the process. See Figure 3-2.
Figure 3-2
Installing the Chute
 Remove the hex washer screws in the chute base. See
Figure 3-3.
Figure 3-3
