ID5000, XR5000 Level 1 Service Manual
Issue 4, 8/2017 24
bumpers

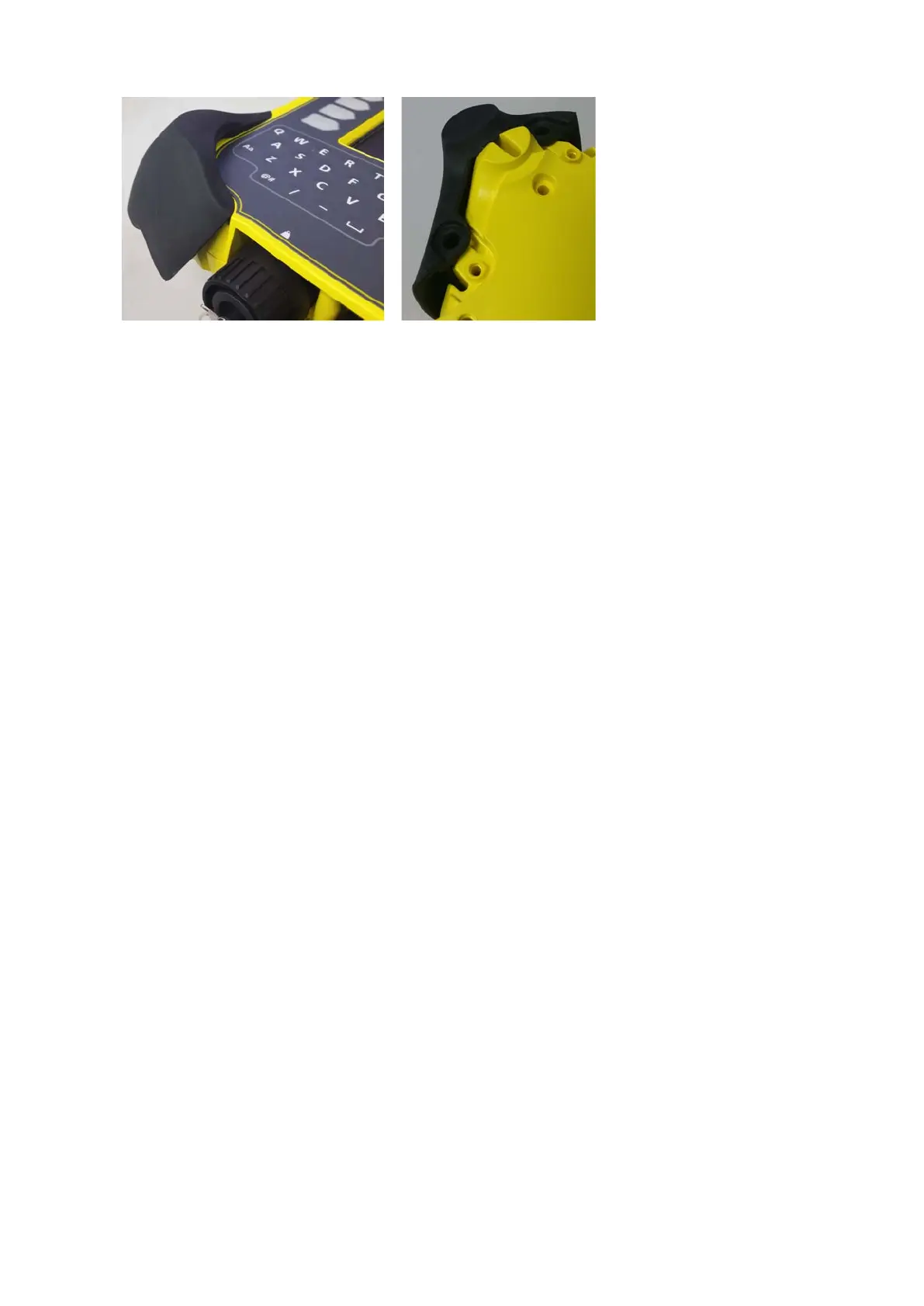

3 Make sure the foot edge is not folded in when pushing the bumper over the foot.
4 Inspect the eight screws and replace any that are damaged.
5 Remove any plastic swarf from the screw bosses, the screws, and the case.
6 Before tightening, first turn the screw anti-clockwise until it drops into place. Tighten screws using a torque-limited
screwdriver set to 0.9 Nm (8 lbf-in), or a hand screwdriver. The screws can be fitted in any order.
