ID5000, XR5000 Level 1 Service Manual

Issue 4, 8/2017 30

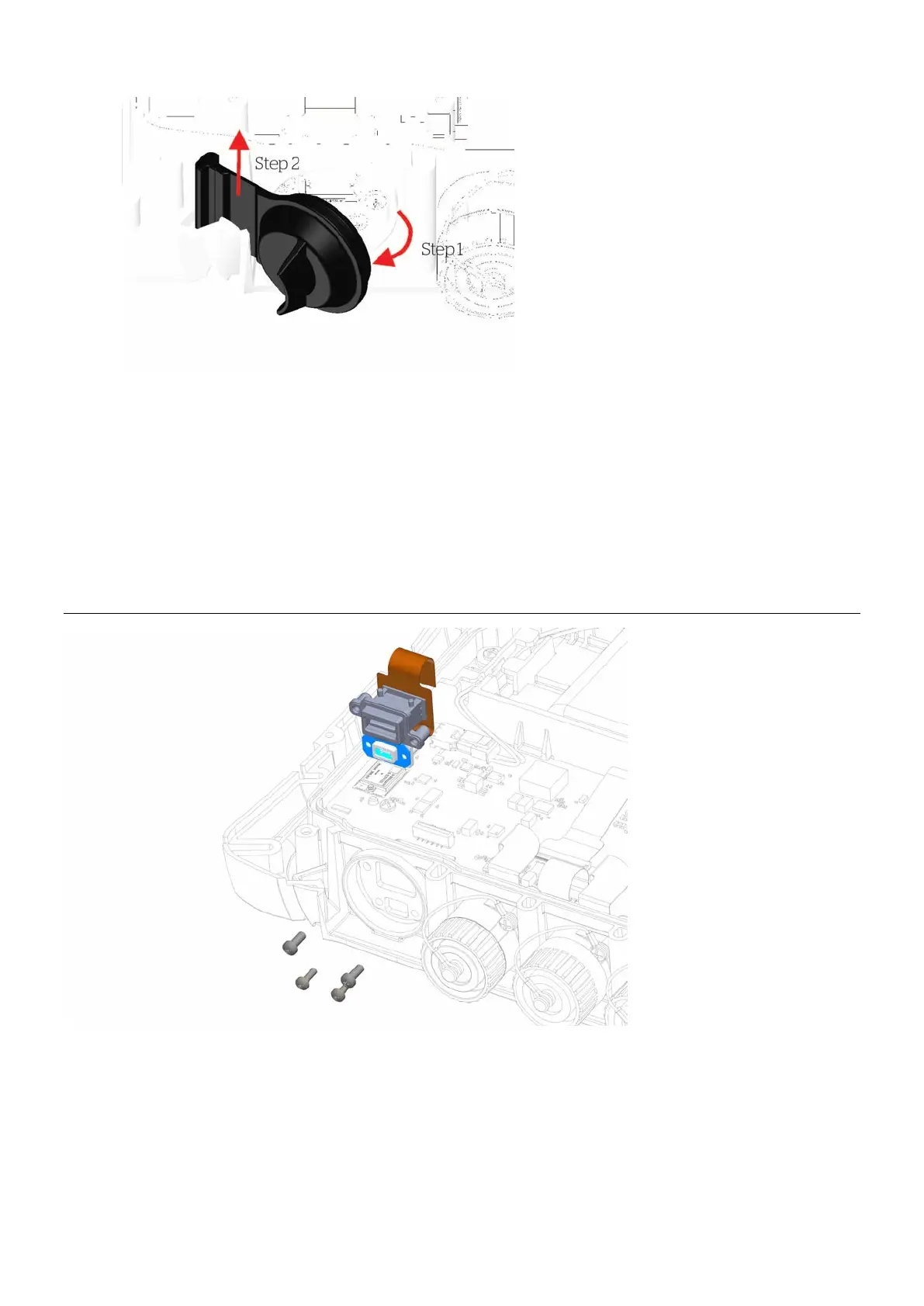

Figure 13: USB dust cap removal

Refitting the USB dust cap

1 Place the USB dust cap in the dovetail groove (Reverse of Step 2 - See

Figure 13

)

2 Push the cap closed (Reverse of Step 1 - See

Figure 13

)

3 Refit the case

back (see page 25).

4 Refit the rubber corner bumpers (see page 23).

Replacing the USB connectors

Figure 14: USB connectors

assembly
