ID5000, XR5000 Level 1 Service Manual
Issue 4, 8/2017 37
1 If the LCD is a
new
spare part, remove any protective film and packaging.
2 Place the LCD face down on a soft cloth on the work surface.
3 Refit the LCD FPC to the LCD by inserting the LCD FPC and refitting the LCD connector clips. See
Figure 23
.
It is essential that the LCD connector clips are used to lock the LCD FPC in place. Be sure to refit them.
4 Make sure that the case front has no sticky residue remaining from the old sticky rectangular gasket. If it does, remove it
using the craft knife and IPA.
5 Affix a new sticky rectangular gasket to the case front by peeling away the backing and pressing it firmly around the edges
of the window. Peel away the other side of the backing.
6 Insert the LCD into the case front, ensuring that the orientation is correct. Press down firmly all the way around the
perimeter.

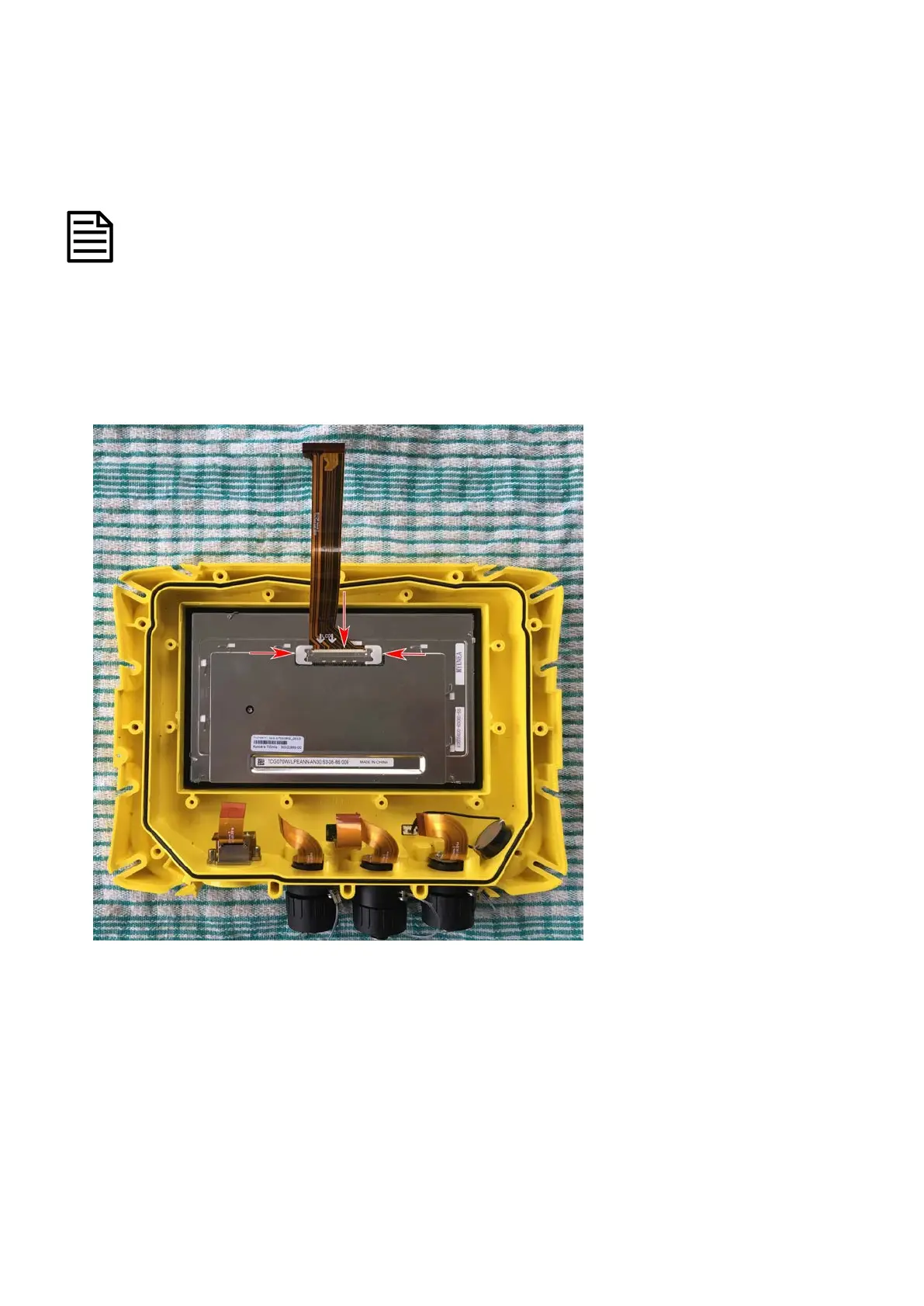

Figure 23: Orientation of
LCD in case front
7 Replace the cradle, complete with the PCA, over the LCD:
a Position the cradle with PCA in the front case, taking care to thread the LCD FPC through the gap between the cradle
and the PCA.
b Tighten the 10 screws securing the PCA and cradle to the case (see
Figure 19
for position of the screws).
c Reconnect the six FPCs (see
Figure 16: PCA connections
). For the LCD FPC, pull up the black locking bar, insert the
FPC, then press down on the black locking bar to lock it. See
Using flexible printed circuit (FPC) connectors
on page
22.
8 Refit the case back (see page 25).
9 Refit the rubber corner bumpers (see page 23).
10 Clean the LCD with IPA to remove any fingerprints or grease.
