ID5000, XR5000 Level 1 Service Manual
Issue 4, 8/2017 22
Repair procedures
Before you begin
Before repairing the indicator, clone all data to an external device. See the technical bulletin
Cloning the data on the 5000
Series Weigh Scale Indicator
.
Before opening the case, shut down the indicator.
Shutting down the indicator
There are two ways to shut down the indicator:
• On the Settings screen, press the Next page soft key until you see the Power off option. Press the Power off soft key.
• In the Settings > Service Info screen, select the menu option to power off the indicator.
Using flexible printed circuit (FPC) connectors
When servicing an indicator, flexible printed circuits (FPCs) may need to be disconnected and connected. Ensure that these
guidelines are followed:
• Do not force the FPC out of the FPC connector. They can be easily damaged.
• The tracks on the FPCs have a pitch of only 0.5 mm (1/50") and are only on one side of the strip. It is therefore critical that
they are inserted straight and in the correct orientation.
The FPC used for the LCD has a locking bar on the FPC connector.
The other FPCs do not have a locking bar.

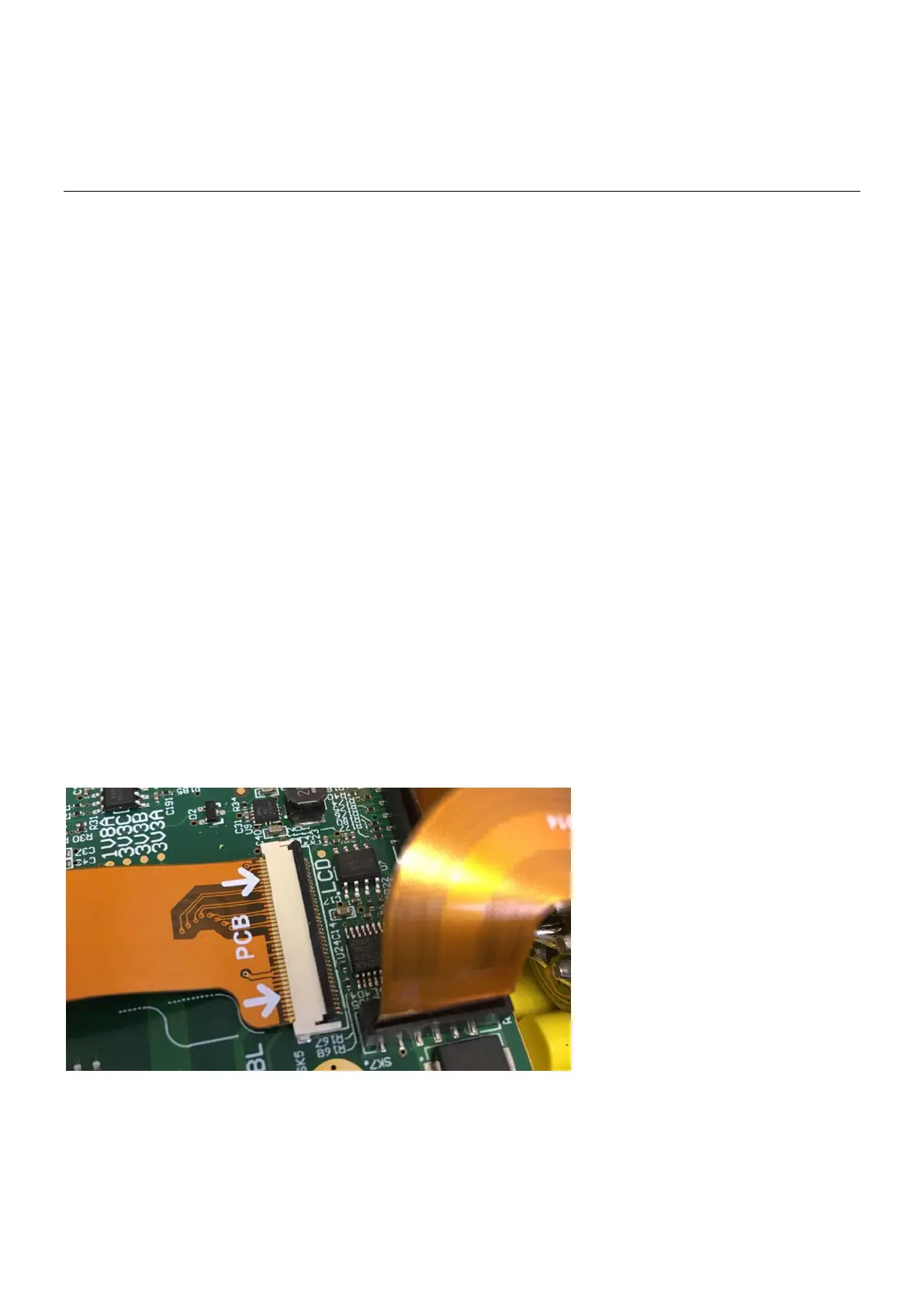

To disconnect and reconnect the LCD FPC
To disconnect the LCD FPC:
1 Place fingernails underneath the black locking bar on the FPC connector.
2 Lift up the locking bar up to open the lock.
1:
3 With your fingertips on either side of the FPC, gently slide the FPC out of the connector body without bending or crumpling
the FPC.
To connect the LCD FPC:
1 Ensure that the black locking bar is open, then gently slide the FPC into the FPC connector body. Ensure that the FPC is
connected properly (straight and correct way around). The FPC should be straight without any bends or folds.
2 Lower the locking bar to close the lock.
