CHAPTER 2: ASSEMBLY GUIDE
16 of 50
ASSEMBLY STEPS:

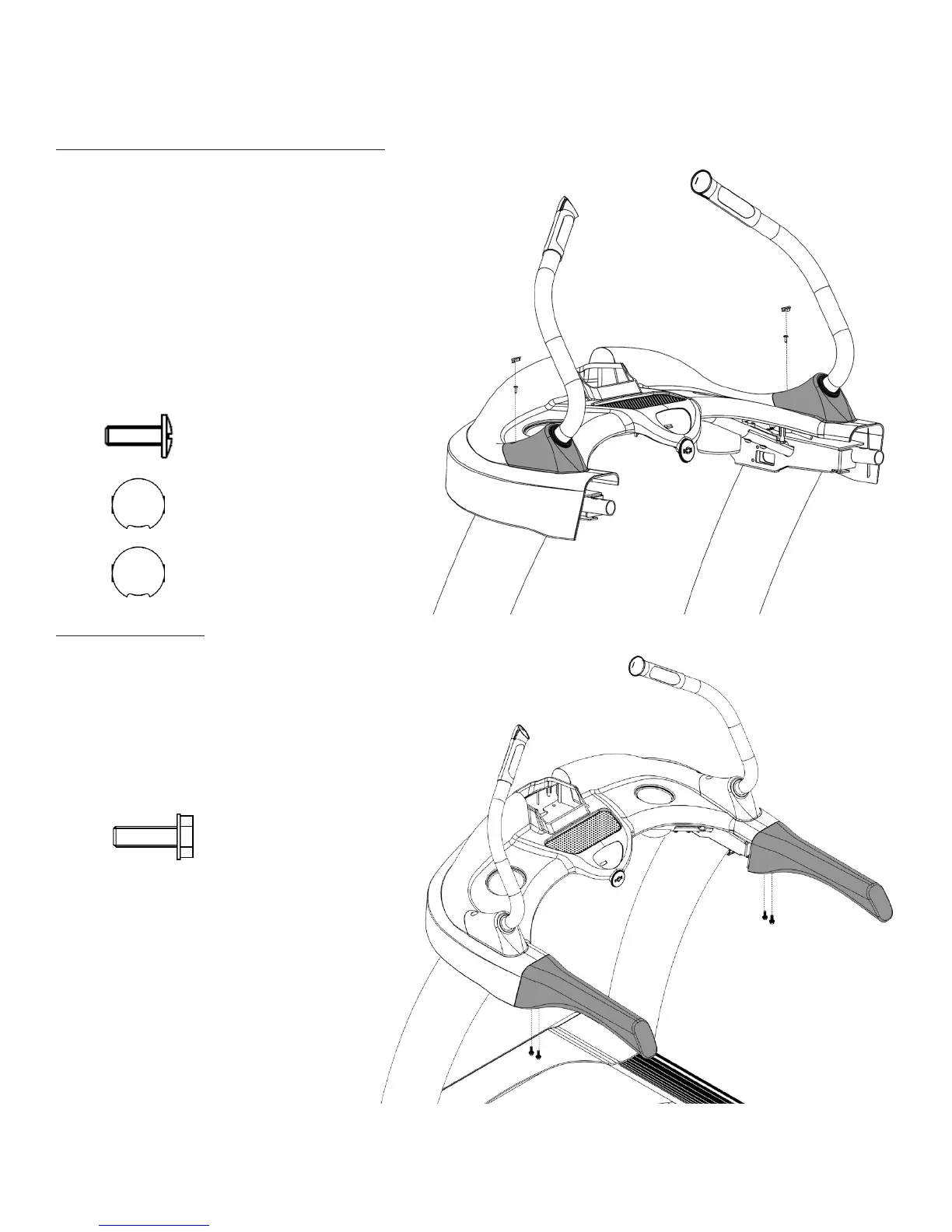

Step 5 Secure Handlebar Base Covers:
Step 6 Handrails:
a) Slide a Handlebar Base Cover down
into positon.
b) Secure the base covers with one
screw each and attach the screw cover.
*Screw covers are marked “L” & “R”
c) Slide each rubber gasket down and
press rmly into the Handlebar Base
Covers.
Hardware Required:
2 M4xP0.7x12mm Bolts
1 Le Screw Cover
1 Right Screw Cover
a) Slide each Handrail into the
corresponding tube on the pedestal
upright.
b) Secure each Handrail with two bolts.
Hardware Required:
4 ¼”-20UNFx20mm Bolts
To Next Page
