CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100 17 of 50
ASSEMBLY STEPS:

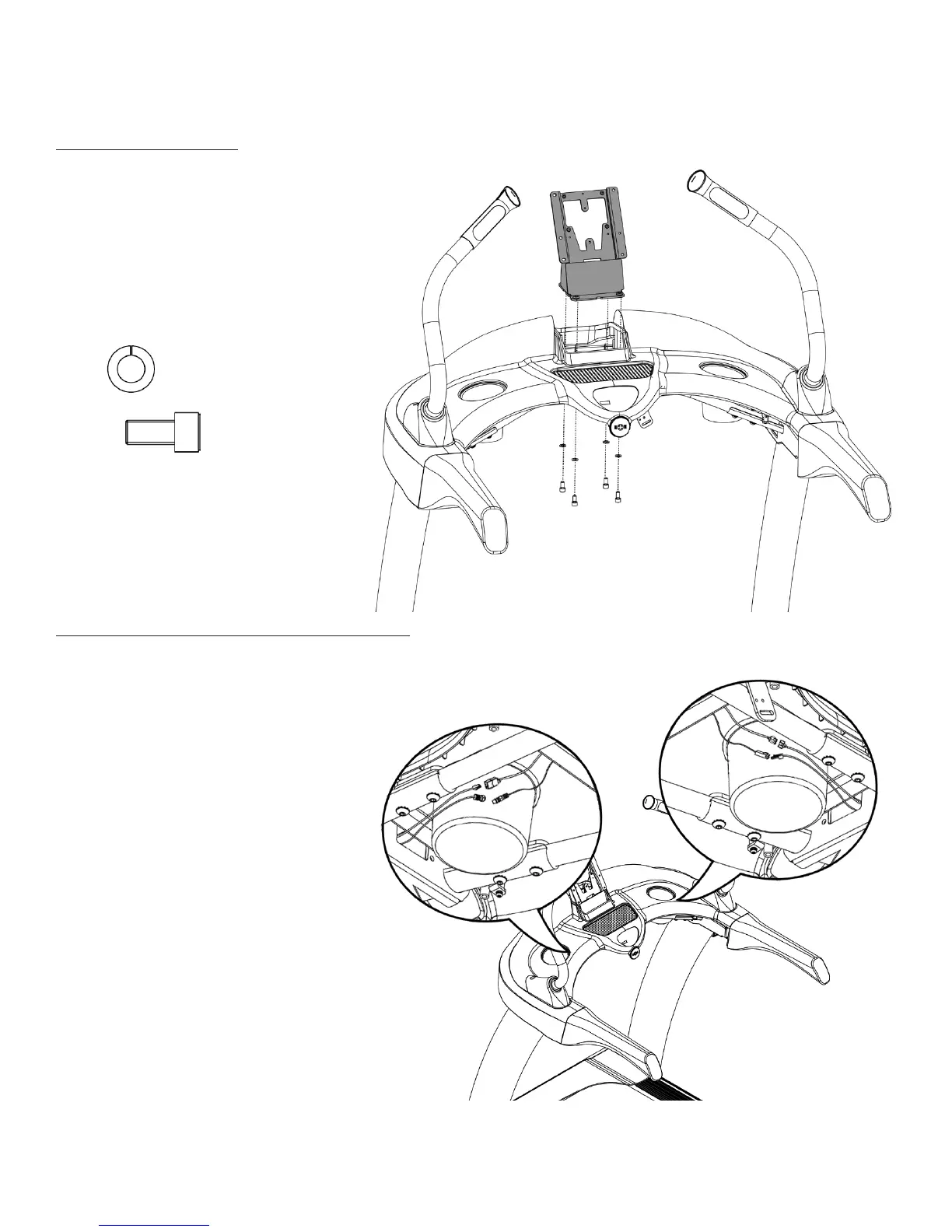

Step 7 Console Mast:
Step 8 Console Rack Cable Connections:
a) Insert the Console Mast into the
Console Rack and secure it with 4
screws and 4 spring washers, but do not
tighten the screws completely until they
have all been installed.
Hardware Required:
4 M8 Lock Washers
4 ⁄”-24 UNF x 16mm Bolts
a) Connect the network & coaxial wires
coming from the le pedestal to the
corresponding in the console rack
b) Connect the data & power cables
coming from the right pedestal to the
corresponding cables in the console
rack.
c) Tuck excess cable length up into the
console rack.
To Next Page
