True CS200 User Manual

CHAPTER 2: ASSEMBLY INSTRUCTIONS
TREADMILL ASSEMBLY STEPS (continued):

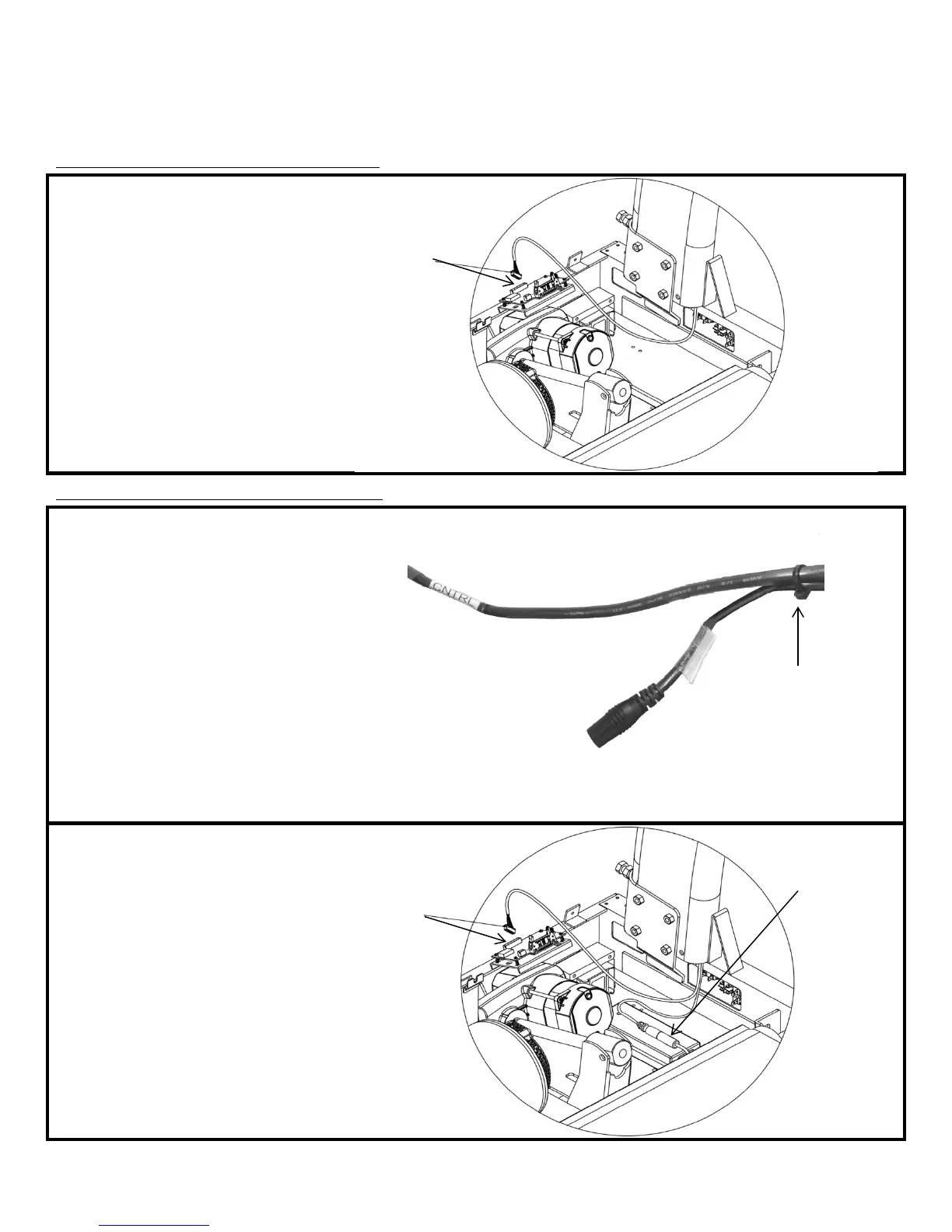

STEP 3-A Frame Cable Connections: *110 Volt Units ONLY
a) Connect the CNTRL cable to the
smart board as shown.
NOTE: The AUXPS cable attached to
the CNTRL cable is not used for this
installation
STEP 3-B Frame Cable Connections: *220 Volt Units ONLY
a) Cut the wire tie holding the female
end of the AUXPS cable to the
CNTRL cable as shown.
b) Connect the female end of the
AUXPS Cable coming from Pedestal
to AUXPS Cable coming from the
pre-installed power supply brick.
c) Connect the CNTRL cable to the
s
mart board as shown
NOTE: The male end of the AUXPS
cable wire tied to the CNTRL cable is
not used for this installation.
AUXPS Connection
Made
Make CNTRL
Connection Here
Make CNTRL
Connection Here
Cut Wire Tie
Truefitness.com / 800.426.6570 / 636.272.7100 12
