CHAPTER 2: ASSEMBLY INSTRUCTIONS
TREADMILL ASSEMBLY STEPS (continued):

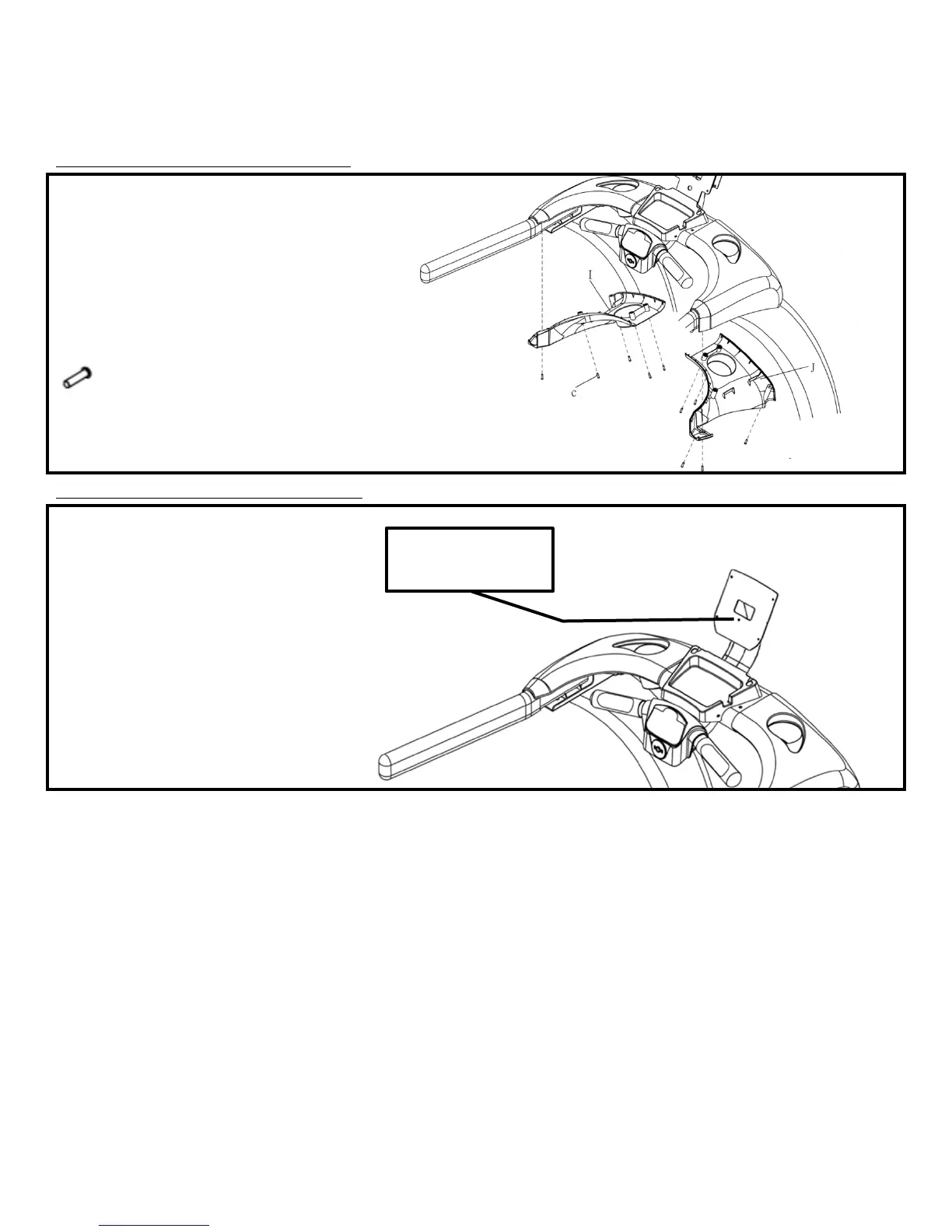

STEP 8: Bottom Shoulder Covers:
a) Using a Phillips screwdriver, install
Shoulder Cover Bottom pieces Left
(G) and Right (H) with five Screws
M4 x 10mm (c) on each side as
shown.
CAUTION: Make sure cabling is
NOT pinched during installation.
Required Hardware:
10 M
4 x 10mm screws (c)
STEP 9: Ground Wire Connection:
a) Attach ground wire coming from
the back of the console to the ground
screw.
Attach console
ground wire here
Truefitness.com / 800.426.6570 / 636.272.7100 15
