CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100
14 of 62

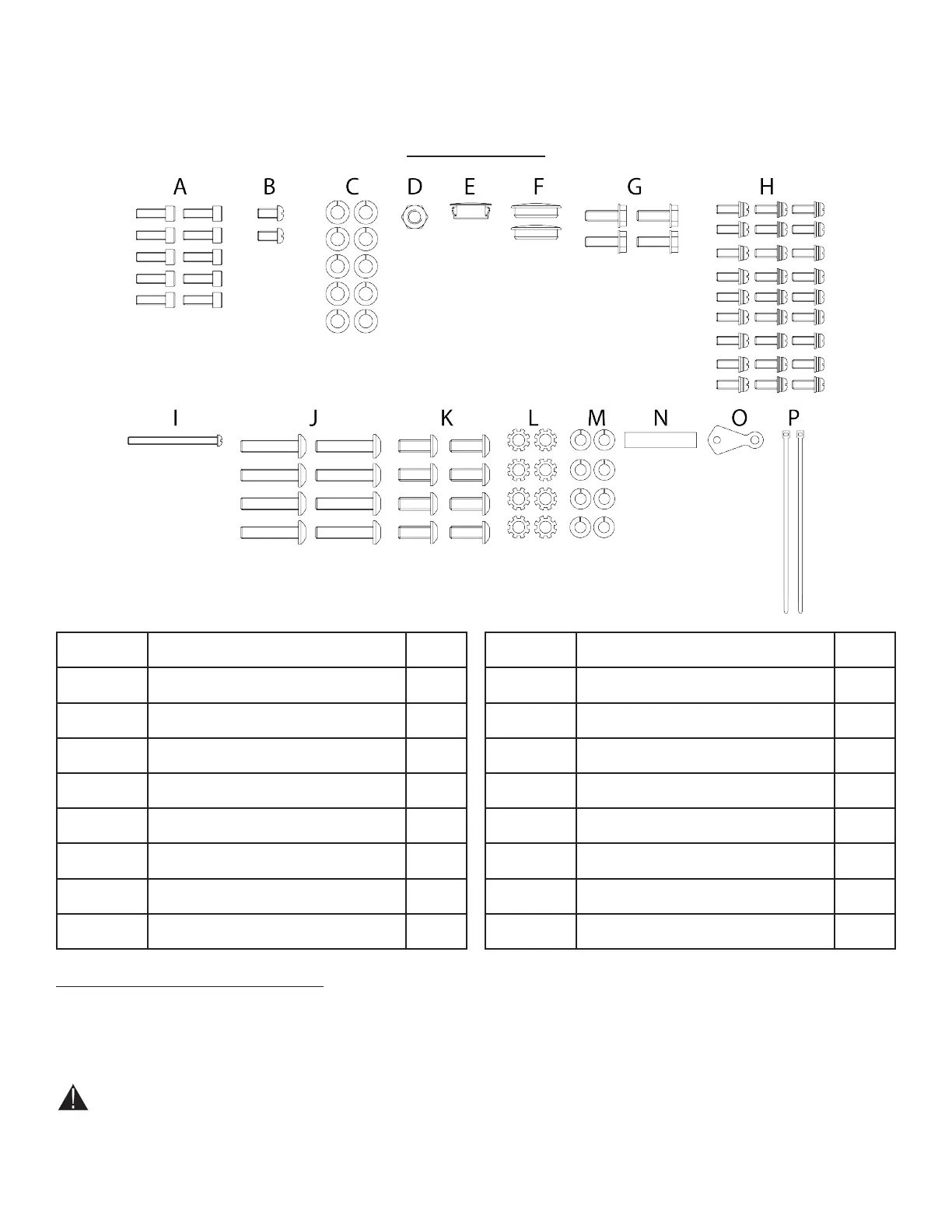

PRE-ASSEMBLY CHECK LIST:
TC650/900
Item Description Qty
A Bolt M8 x P1.25 x 25 10
B Screw M5 x P0.8 x 10 2
C Lock Washer M8 10
D Lock Nut M8 x P1.25 1
E Cap-Motor Cover Screw 1
F Hole Plug-Motor Cover 2
G Bolt 1/4”-20 x 3/4” 4
H Screw M4 x P0.7x12 27
Item Description Qty
I Bolt M5 x P0.8 x 60 1
J Bolt 5/16”-24 x 1-1/2” 8
K Bolt 1/4”-20 x 5/8” 8
L External Tooth Star Washer M8 8
M Lock Washer 1/4” 8
N Spacer 1
O Retainer-Power Cord 1
P Wire Tie 2
Tools Required (not included):
• Open End Wrenches: 15/16”, 7/8”, and 1/2”
• Hex Keys: 5/32”, 3/16”, 4mm, and 8mm
• Screwdrivers: #2 Phillips with 4” long tip, #2 Phillips
with 8” long tip, 5/16” slotted approximately 6” long
CAUTION:
• Use caution when assembling treadmill. Unpacking and assembling of this treadmill is a two person task.
• Remove all treadmill components from packaging.
• 7/16” 6-point socket, short extension, and ratchet
• Long-nose pliers, small (optional)
• Wire cutters, small (optional)
