CHAPTER 2: ASSEMBLY GUIDE
Truetness.com / 800.426.6570 / 636.272.7100 25 of 62

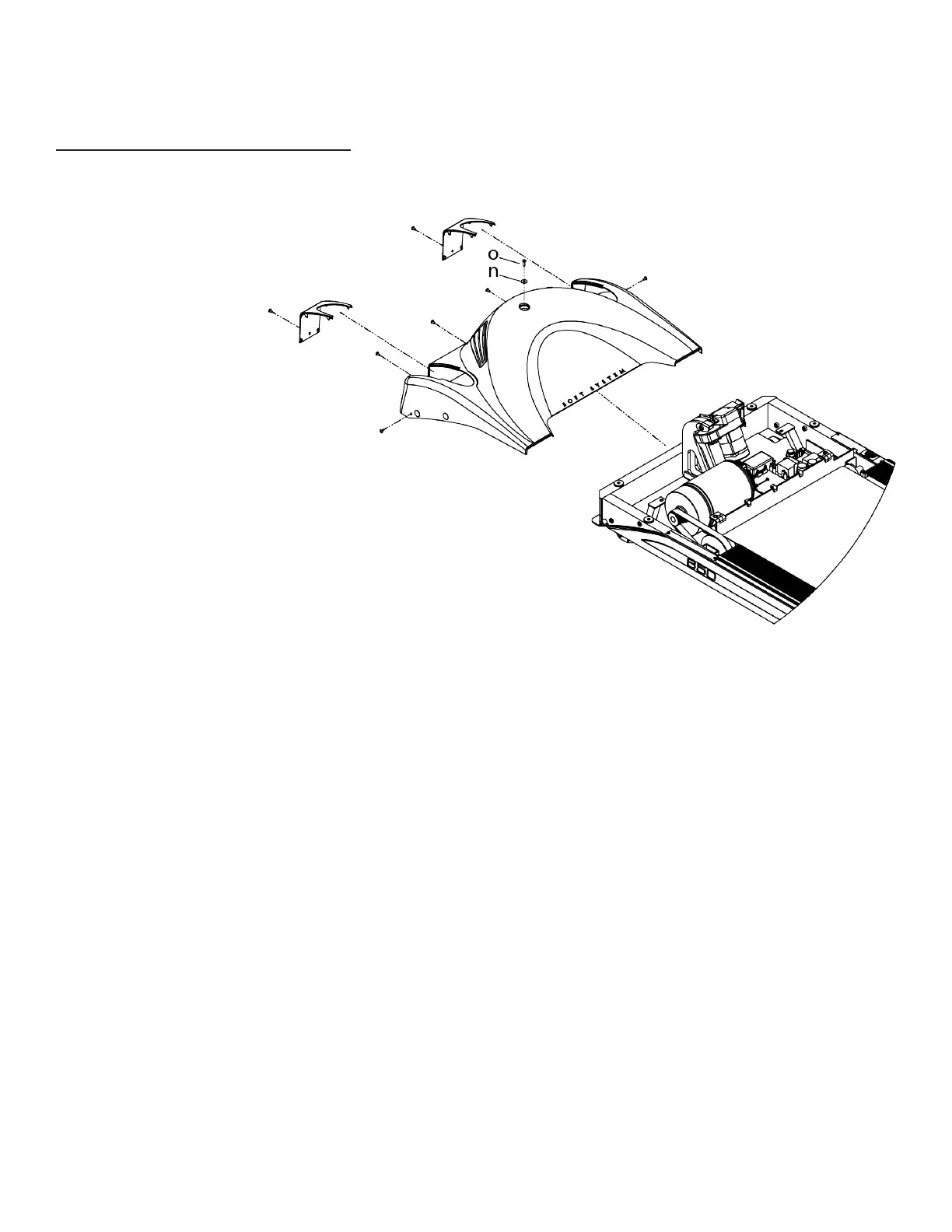

c) Reinstall screw O and
washer N at this time.
d) Flex the sides of the
motor cover as needed
to slip the rubber bolt
covers over the heads of
the four bolts, reinstall the
M5 screws on the le and
right sides.
e) Reinstall the three M5
screws across the front
side of the motor cover.
f) Reinstall the two motor
cover inserts and their M5
screws.
Note: To properly engage
the two small clips at the
bottom of the inserts,
ex upwards and then
carefully guide in the clips
as the part is lowered.
g) Rotate and lower the rubber trim rings into proper position next to the motor cover. Engage their retaining
stems into the motor cover inserts. Note: e trim rings can rotate 180 degrees. In one position, they will t
without gap s. In the wrong orientation, they will not t closely to the motor cover.
h) Install the cap-motor cover screw that is located in the hardware kit.
TREADMILL ASSEMBLY STEPS:
Step 13 Motor Cover (continued):
