Cabinet Setup (cont.)
Drawer Removal and Installation
Drawer Style #1
Removal
1. Completely open the drawer.
2. Locate the roller clips (in down position; see figs. 1 and 2).
3. While holding the sides of the drawer, rotate the roller clips
upward. See fig. 3.
4. Lift the drawer from the channel slot. See fig. 4.
Installation
1. With the roller clips in the up position (see fig. 3), lower the
drawer’s rear rollers into the channel slots.
2. Push the drawer into position.
3. Rotate the roller clips to the down position. See figs. 1 and 2.
Drawer Style #2
Removal
4. Slide the drawer out and locate the plastic drawer retainer.
See fig. 5
5. Push the plastic drawer retainer forward and raise the front
end. See figs. 6a and 6b.
6. Remove the drawer.
Installation
1. With the plastic drawer retainer raised, align the drawer with
the slide and push the drawer into position. See figs. 6b and 7.
2. Align the drawer with the drawer slide and push the drawer
into position.
3. Press the plastic drawer retainer down and towards the back of
the cabinet. See fig. 7.
4. Verify correct drawer operation.

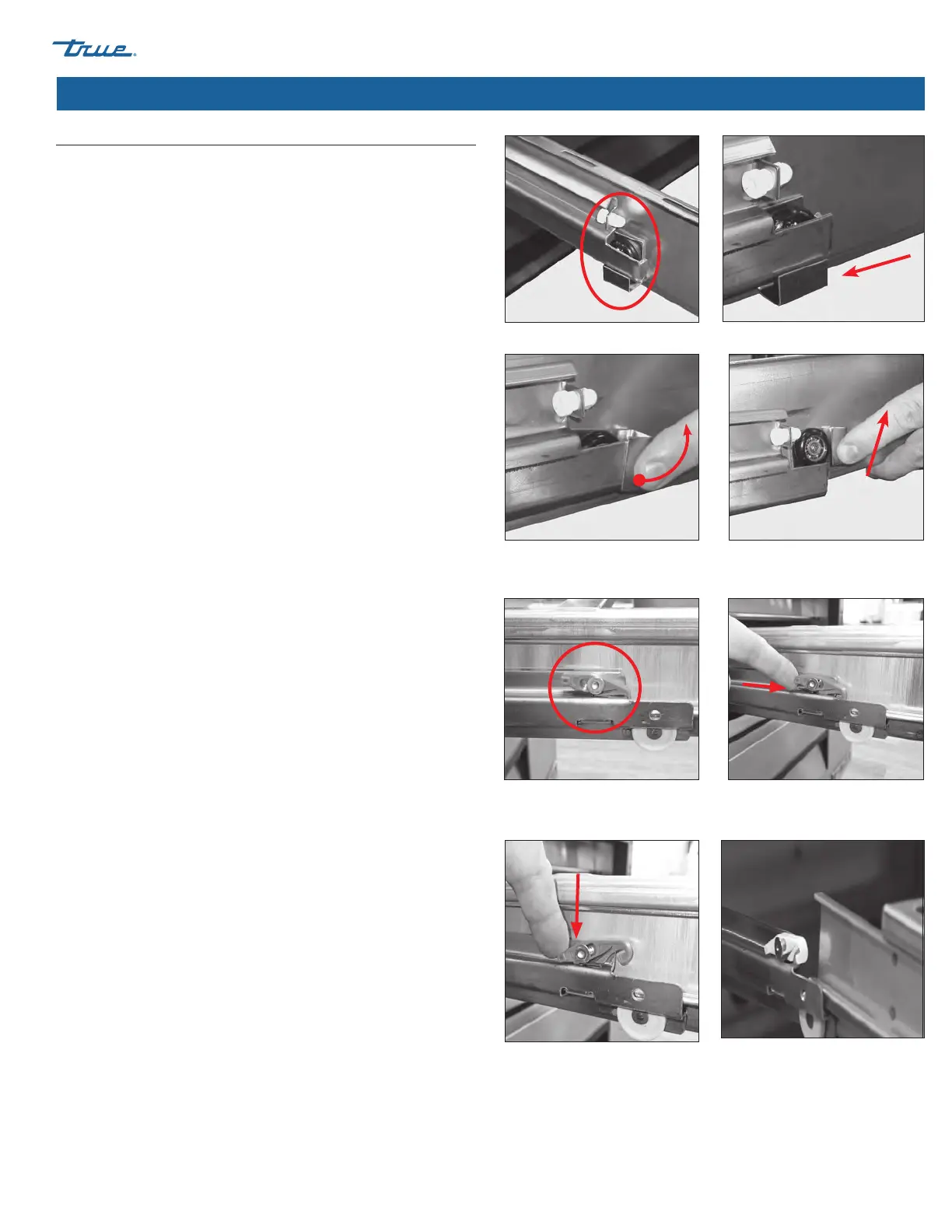

Fig. 1. Roller clip location. Fig. 2. Roller clip in down position.
Fig. 3. Rotate the roller clip upward Fig. 4. Lift and remove drawer.
Fig. 5. Drawer retainer location.
Retainer is engaged.
Fig. 6b. Push the back of the
retainer down.
Fig. 7. Align the drawer with the drawer
slide.
Fig. 6a. Push the retainer forward.
