Castors
1. Loosen the castor bolt enough to slide the provided castor
shims between the castor bearing and the bottom rail of the
cabinet. See fig. 6.
2. Install the desired number of shims. If more than one shim is
used, turn the slots at a 90˚ angle to each other, so the slots
do not align. See fig. 7.
3. Tighten and secure the shims and castors with the optional
castor wrench. Lower the cabinet and verify that it is level. If
the cabinet is not level, repeat the process until the cabinet
is level and supported.
Installation (cont.)
WARNING – Units may pose a tipping hazard
while uncrating, during installation, or when
moving the unit.

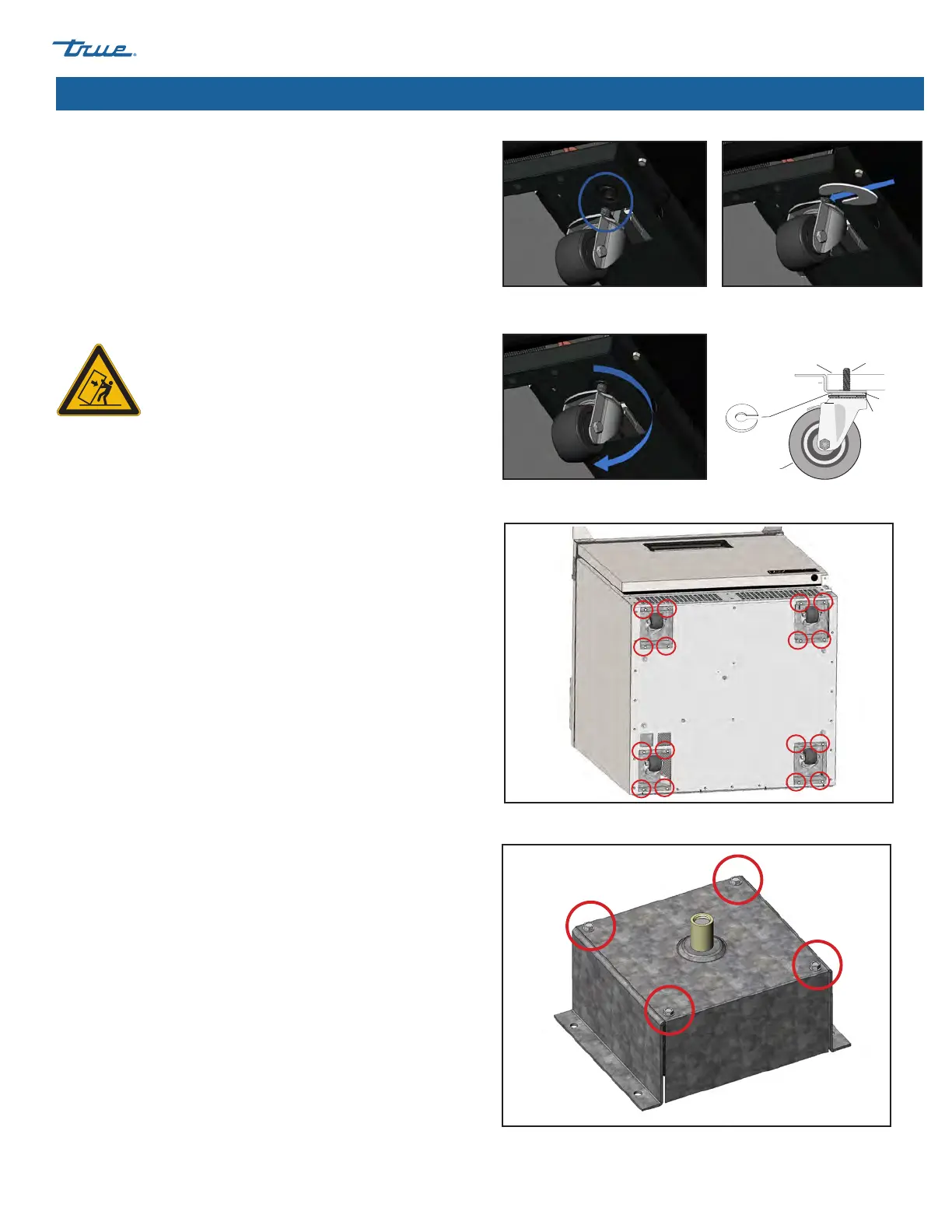

Fig. 7. Install shim(s).
Fig. 6. Loosen castor bolt.
Fig. 8. Position multiple shims at
90˚ angles.
Leveling Shim
Lower Rail Assembly
Bearing Race
Snug Fit Here
Rail End
Castor
Castor Stem
Fig. 9. Locate castor box. Back out the four screws anchoring the box.
Fig. 10. One castor box on each cabinet is fully enclosed.
Castors (TFP Models Only; Previous Design)
If the unit is not level, add castor shims as described below or
adjust the leveling legs' bottom stems.
1. Position packing material behind the unit and carefully lay
the unit on its back.
2. Remove the castor box. See fig. 9.
NOTE: Each unit has one castor box that completely
encloses the castor. With a 1/4" hex-head driver,
disassemble the castor box. See fig. 10.
3. Install the desired number of shims. See previous page
for instructions.
4. Tighten and secure the shims and castor with optional castor
wrench.
5. Install the castor box.
6. Carefully raise the cabinet to an upright position and verify
the level. If the cabinet is not level, repeat the process until
the cabinet is level and supported.
