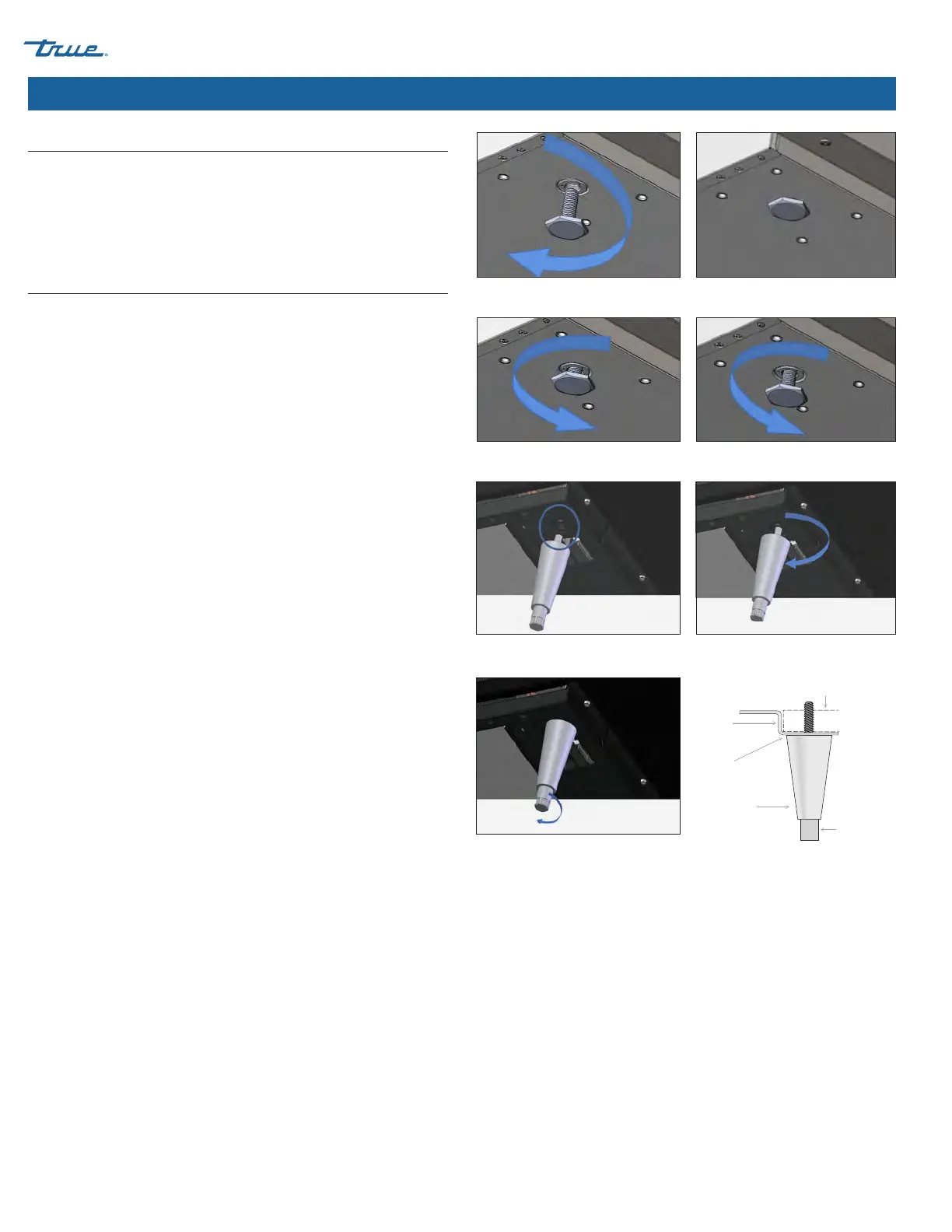

Fig. 1. Turn the leveling legs clockwise to lower the unit.
Cabinet Location
1. Ensure that the drain hose or hoses are positioned in the pan.
2. Free the plug and cord from inside the lower rear of the cooler
(DO NOT plug in).
3. Place the unit close enough to the electrical supply so that the
extension cords are never used.
Leveling Leg, 6" Leveling Leg, or Castor Installation
Leveling legs are provided to assist with leveling the cabinet.
Adjustable legs will provide 6" (152 mm) of clearance under the
cabinet. Castors provide cabinet mobility.
NOTE: If the cabinet has a center leveling screw, castor, or leg,
make sure it is adjusted properly so it makes full contact with
the floor after the cabinet has been leveled.
Required Tools
Required tools include (but may not be limited to) the following:
Adjustable Wrench
Procedure — Leveling Legs
With access to the bottom of the cabinet, thread the leveling legs
into the holes used to secure the cabinet to the skid. See figs. 1
and 2.
Procedure — 6" (152 mm) Leveling Legs
1. Access the bottom of the cabinet and thread the leveling legs
into the rail. See figs. 3 and 4.
2. Verify that the cabinet is level.
3. If the cabinet is not level, gently lift and support the low end
of the cabinet. With an adjustable wrench, screw the bottom
stem of the leveling leg in or out to level and support the
cabinet. See fig. 5.
Fig. 2. Turn the leveling legs counterclockwise to raise the unit.
Fig. 5. Turn the bottom stem to level the
cabinet.
Fig. 3. Locate the threaded hole in the
rail.
Fig. 4. Screw in the leveling legs.
Installation (cont.)
Lower Rail Assembly
Seismic
Leg
Snug Fit
Here
Rail End
Bottom Stem
