REFRIGERATED FOOD PREP www.truemfg.com
TEC_TM_090 | REV. C | EN12/13/2022 Page 20 of 24
Cabinet Adjustments, Servicing, & Component Replacement
Reversing Door
(TUC/TWT-24/24F & TSSU/TUC/TWT-27/27F)
Required Tools
Required tools include (but may not be limited to) the following:
• 1/4” Socket • 1/4” Combo Wrench
• 5/16” Socket • Phillips Screwdriver
• 3/8” Socket (27/27F) • Hammer
• 7/16” Socket (24/24F) • Putty Knife
• Ratchet
Procedure
1. With a socket, remove the lower hinge bracket from the
cabinet (fig. 1). Then, remove the door.
NOTE: Required socket varies by model size. See the
required tools list for details. Take care to not snap the
upper hinge bushing (fig. 2).
2. Move the front grill to the opposite side
(TUC/TWT-24/24F models only)
a. With a Phillips screwdriver, unscrew the front grill.
b. With a 7/16” socket, move the bolts (fig. 3) to the opposite
side.
c. . Shift the grill to the side. See fig. 4.
d. Align the grill with the pre-drilled hole, and then secure it.
3. Remove the cartridge hinge assembly from the door. See fig. 5.
4. With a putty knife, pry the square bushing from the door. Then,
with a hammer, tap the bushing into the cartridge hinge’s
original location.
NOTE: When repositioning the bushing, gently tap it to
prevent damage.

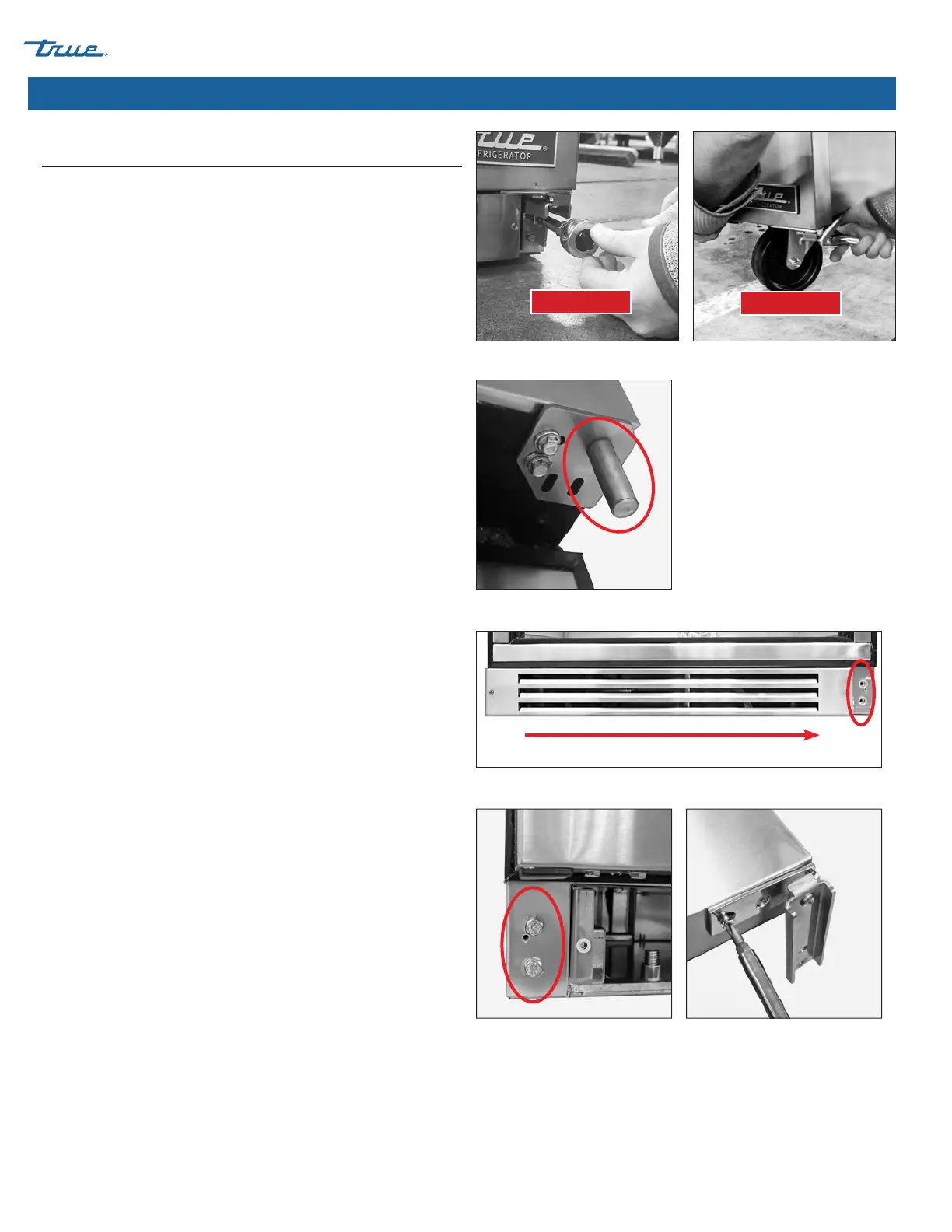

Fig. 1. The 24 and 27 models use different lower hinges.
Fig. 2. Do not snap the bushing on the top hinge.
Fig. 3. TUC/TWT-24/24F ONLY: Move the front grill to the opposite side.
Fig. 4. Move the bolts to the lower
hinge bracket’s original location.
Fig. 5. Remove the cartridge hinge
assembly.
24" Models
27" Models
