True TPP-93 - Reversing Door Procedure (cont.)

REFRIGERATED FOOD PREP
TEC_TM_090 | REV. C | EN 12/13/2022 Page 21 of 24
www.truemfg.com

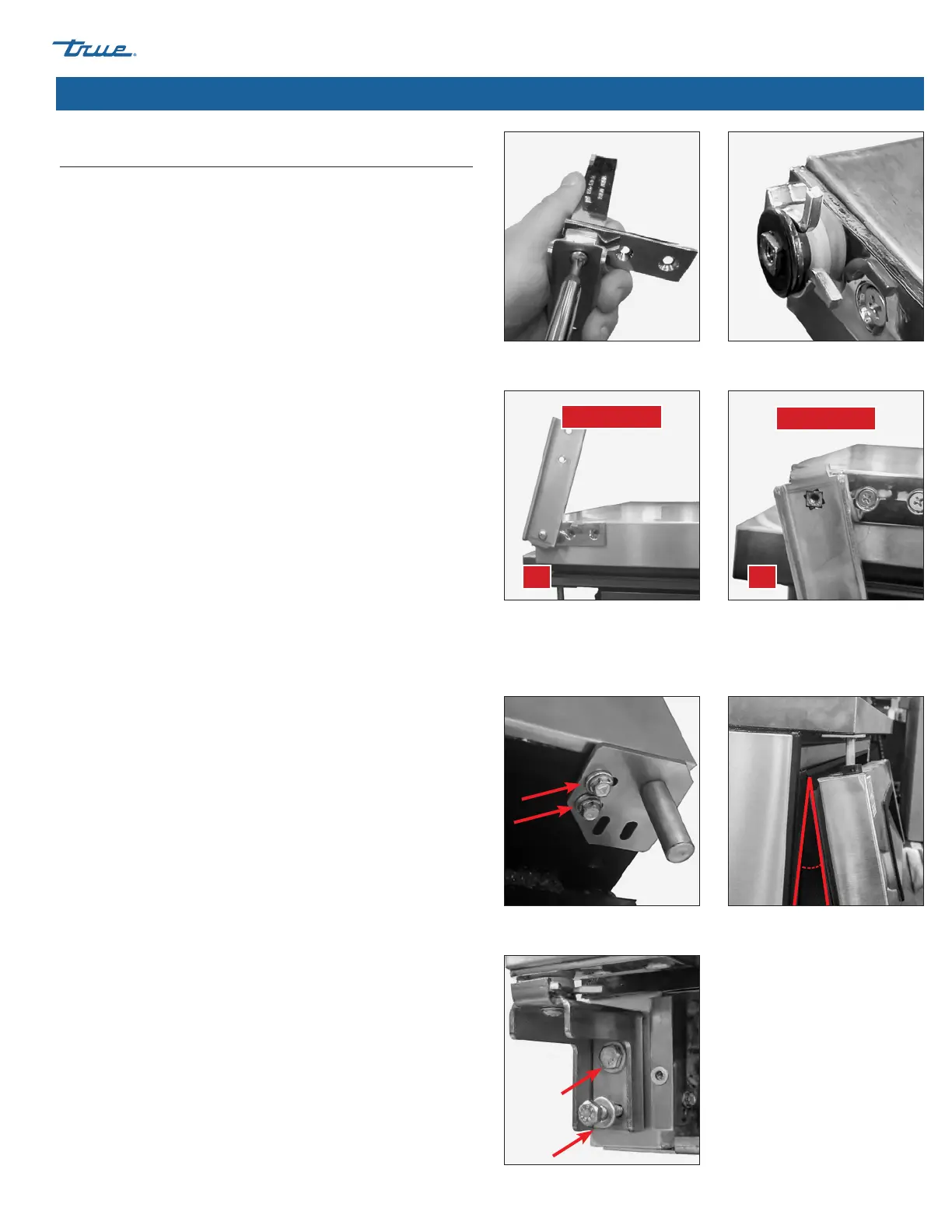

Cabinet Adjustments, Servicing, & Component Replacement (cont.)
Fig. 6. Remove the hinge bracket from
the cartridge spring and then rotate it.
Fig. 8. Images show the front of the door facing up.
A: Incorrect; hinge bracket has not been rotated and angles outward.
B:
Correct; hinge bracket has been rotated and angles inward towards the cabinet
center; star-shaped hole keeps the correct spring tension.
Fig. 7. Keep the washers in their
original order.
Fig. 9. Do not forget the washers.
Fig. 10. If needed, only use shallow
angles when positioning the door
Fig. 11. Do not forget the washers.
5. With a 5/16” socket, move the machine screws to the opposite
side square bushing.
6. Rotate the hinge bracket (see fig. 6), and then secure the
cartridge hinge assembly to the opposite side of the door.
NOTE: Keep the washers in their original order.
See fig. 7.
Always angle the hinge bracket towards the center of the
cabinet to keep tension on the spring.
See fig. 8.
7. With a putty knife, pry the cap and plastic bushing from the
top ofthe door and swap their positions.
8. With a 1/4” socket, move the top hinge to the opposite side of
thecabinet. See fig. 9
NOTE: Do not forget the hinge’s washers
9. Install the Door
a. Position the door.
NOTE: Take care to not snap the upper hinge bushing.
See fig. 10.
b. Secure the lower hinge bracket to the unit.
NOTE: Do not forget the hinge’s washers. See fig. 11.
Check the door alignment while securing the hinge.
Adjust the hinges as needed. To adjust the upper hinge,
True recommends using a ¼" combo wrench.
Incorrect
Correct
A B
Reversing Door
(TUC/TWT-24/24F & TSSU/TUC/TWT-27/27F) (cont.)
