Trueshopping

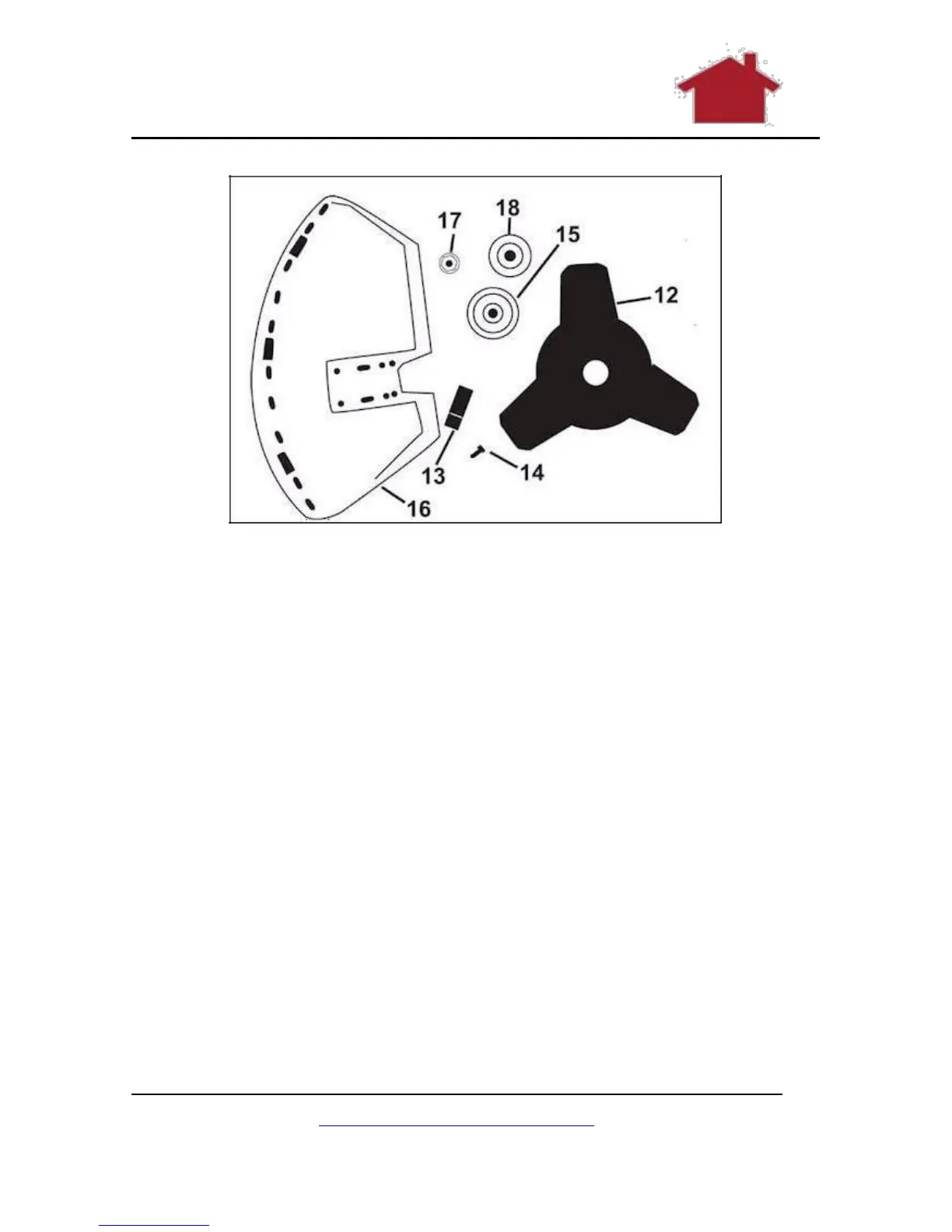

Figure 7 Brush Cutter Blade
12. Blade
13. Fixing screws with spring rings
14. Nut
15. Blade locking nut
16. Blade protection
17. Bracket diameter flange
18. Spacer disc
www.TrueShopping.co.uk
Page: 10 of 69
