4. Fit the cutter blade (31) onto the spindle (29) ensuring
that the directional arrows on the safety guard (19) and
the cutter blade (31) match. Ensure that the cutter blade
sits flush on the extruded ring on the backing flange (30).
5. Place the locking flange (32) and the cap (33) onto the
cutter blade (31).
6. Secure the cutter blade (31) with the nut (34) using the
spanner (36).
7. Remove the spindle lock rod (37).
8. Test to check that everything is secure.
9. You are now ready to use your brush cutter.

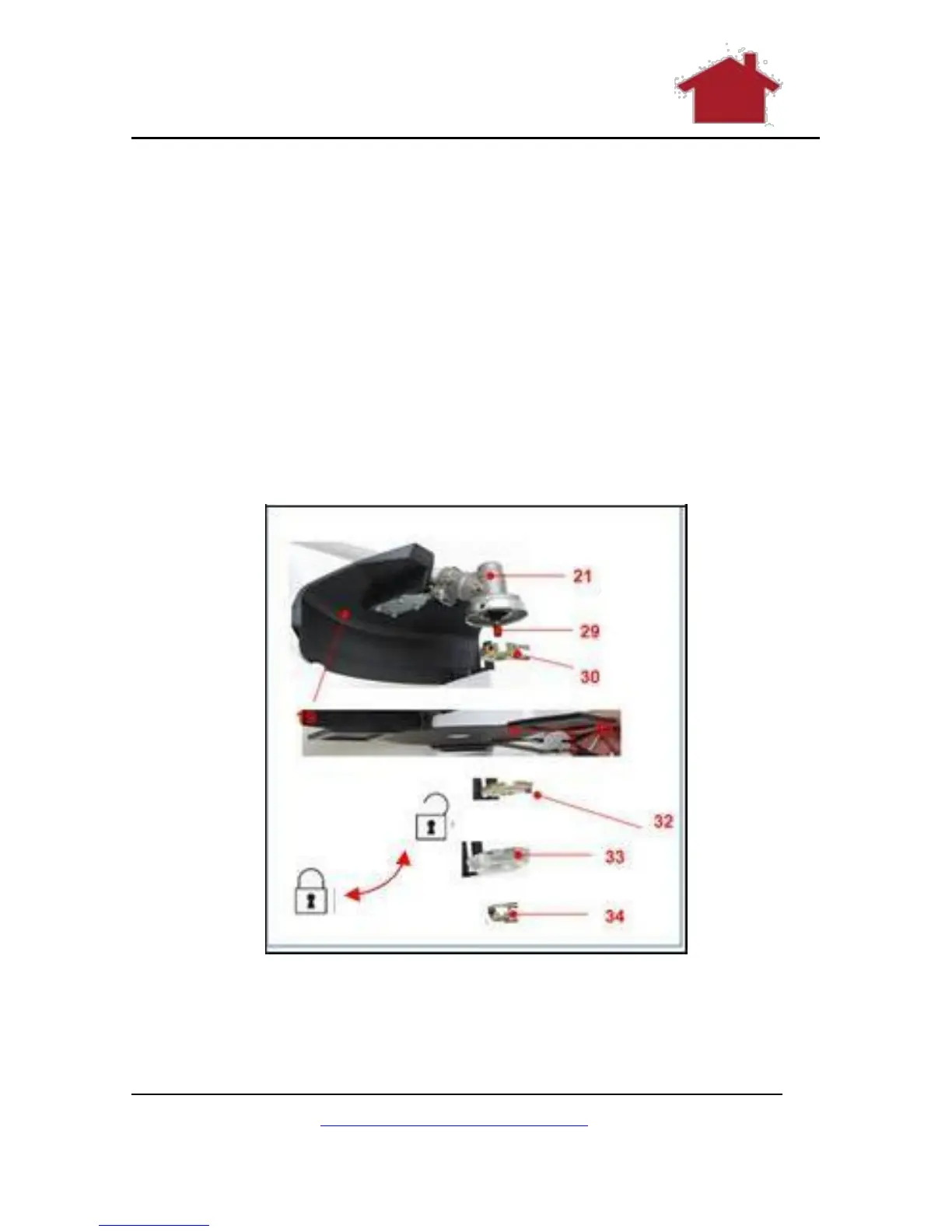

Figure 20 Brush Cutter Blade Fixing
