Issue 1 – January 2020 Page 9
SECTION 3 – FITTING INSTRUCTIONS
Safety behavior and practices
Installation and service must be performed by an authorized Truma recommended
installer, service agency, or OEM. Improper installation, alteration, service, or maintenance
can cause property damage, personal injury, or loss of life. Installation as a Do-it-Yourself
project is not authorized and voids all warranties.
3.1 RECEIVING YOUR POWRTOUCH FREEDOM
When unpacking the box there is a checklist of the components for the mover. Please check
that all parts have been received before commencing the installation work (See Fig 2 showing
component parts). If in doubt, please contact Truma. Contact details are on the front page of
this document.

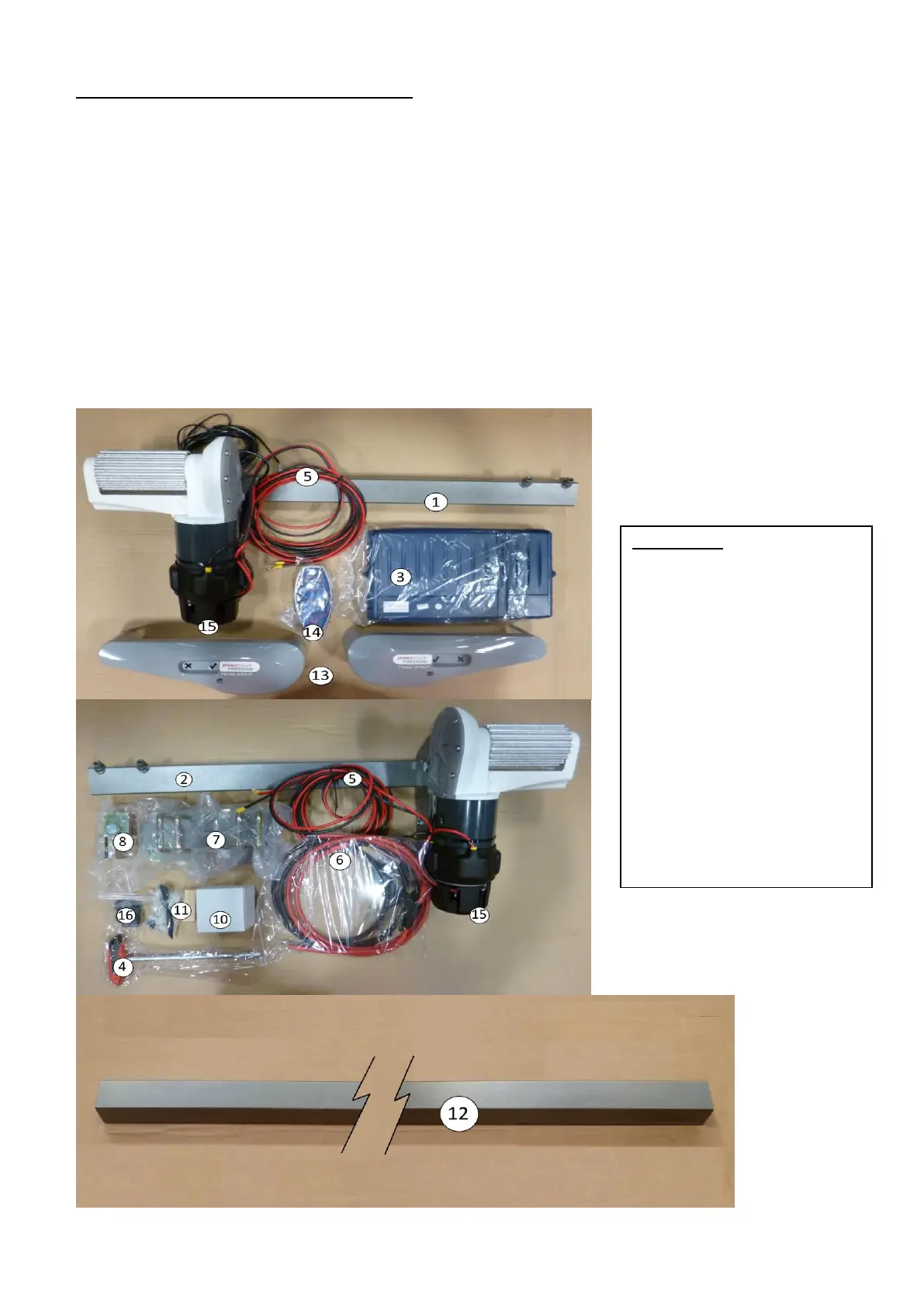

Fig 2. Pictures Showing Component Parts
Key To Parts
1 – Left Hand Unit
2 – Right Hand Unit
3 – Electronics Control Box (ECB)
4 – Manual Removal Tool (T Bar)
5 – Motor Wires
6 – Battery Wire Set with Fuse
7 – Clamp Set
8 – Stop Blocks
9 – Actuator Wires
10 – Isolator Switch with Key
11 – Bag of Fixings & Wooden
Block
12 – Centre Bar
13 – Side Covers
14 – Electronics Handset
15 – Ferrite Cover
16 – Ferrite x2
To Next Page
