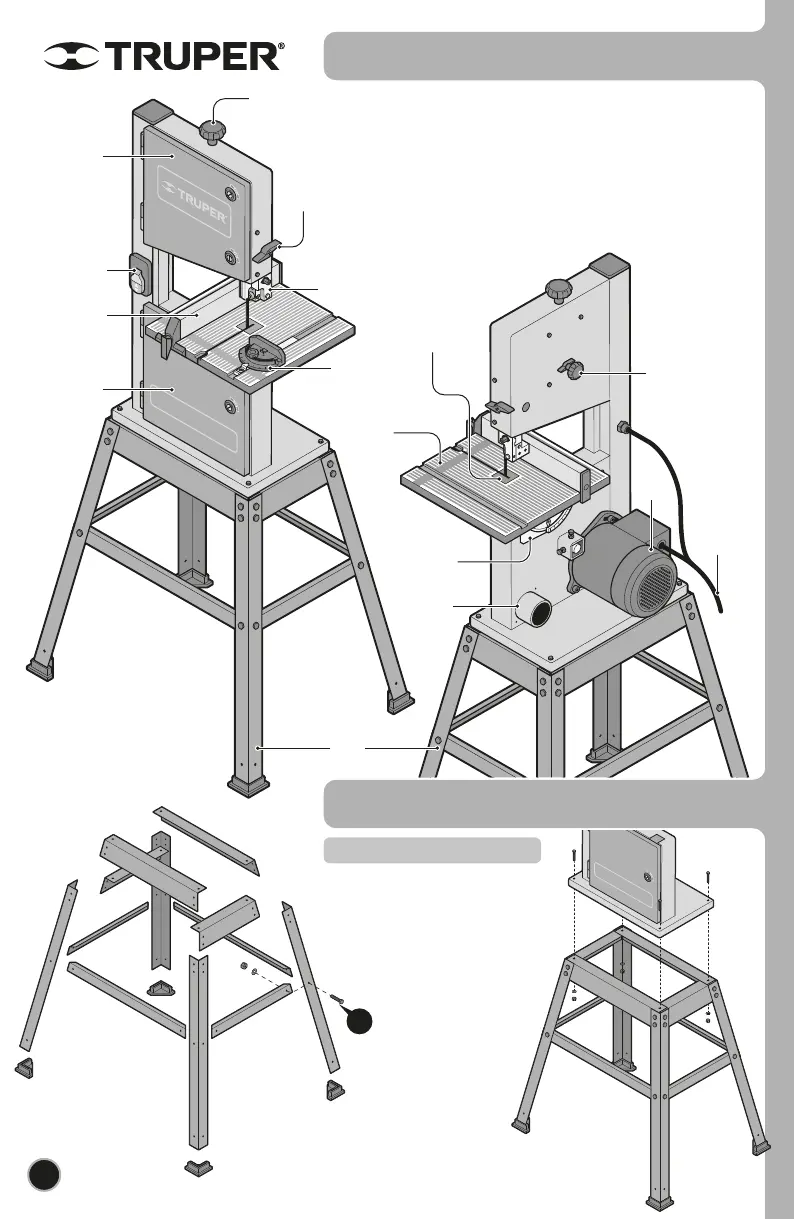

Truper SCI-10 - Parts; Band Saw Components Identification; Assembly; Base Assembly

Parts
Assembly
Upper
Cabinet
Lower
Cabinet
Switch
Support
Fence
Dust
Outlet
Cutting Band
Tension Knob
Cutting Guide
Height Adjusting
Knob
Power
Cord
Motor
6
• Assemble the equipment base
with 24 nuts, washers and bolt sets
as indicated in the figure.
• Set the equipment onto the base
and fix with nuts, washers and bolts
sets as indicated in the figure.
Base
Cutting Band
Alignment
Adjusting Knob
Upper
Cutting Guide
Miter
Guide
Support
Work
Table
Work Table
Joint
Table
Insert
x24
