Operating Instructions

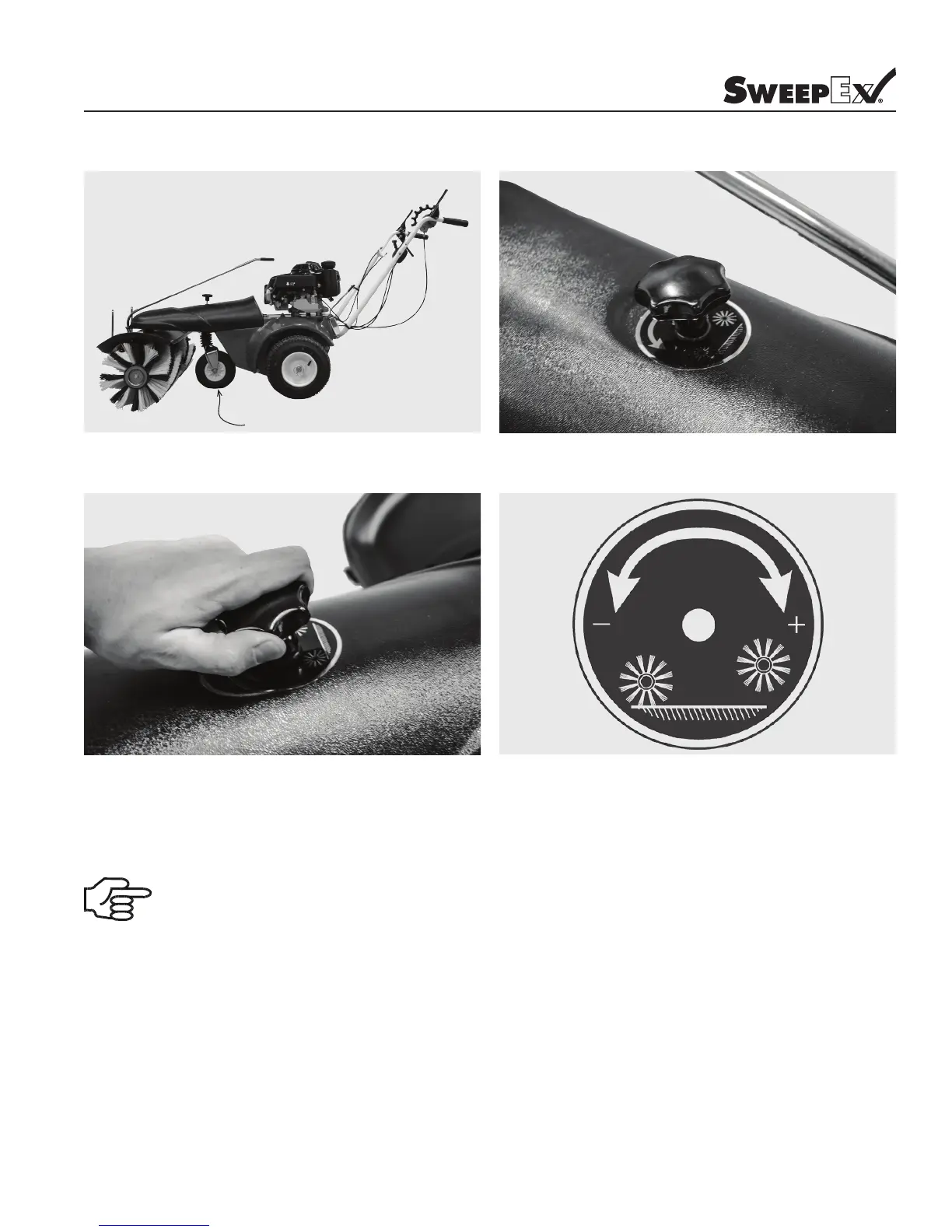

Adjusting Brush Pressure
Turn clockwise (+): raise brush
Turn counter-clockwise (-): lower brush
The brush height can be adjusted in ne increments by adjusting the
height of the support wheel.
The adjustment knob is located above the support wheel.
Lower the brush by turning the knob in the direction of the ‘minus’
arrow until it just touches the oor. Turn the knob three more turns
and the brush height is just right for sweeping.
IMPORTANT
If the brushes are heavily worn, or if you are brushing cobblestones or brick pavers, lower the brush one more turn.
Please note: if the brush pressure is too heavy, the cleaning effect is decreased because the brush bers are bent too much.
If you do not intend to use the SWB-400 for a long period of time, release the pressure on the brush by raising the brush.
Support Wheel
