16 © TrynEx International 2013 (REV A) F51231A
Operating Instructions
Leaf Collector (Optional Accessory)

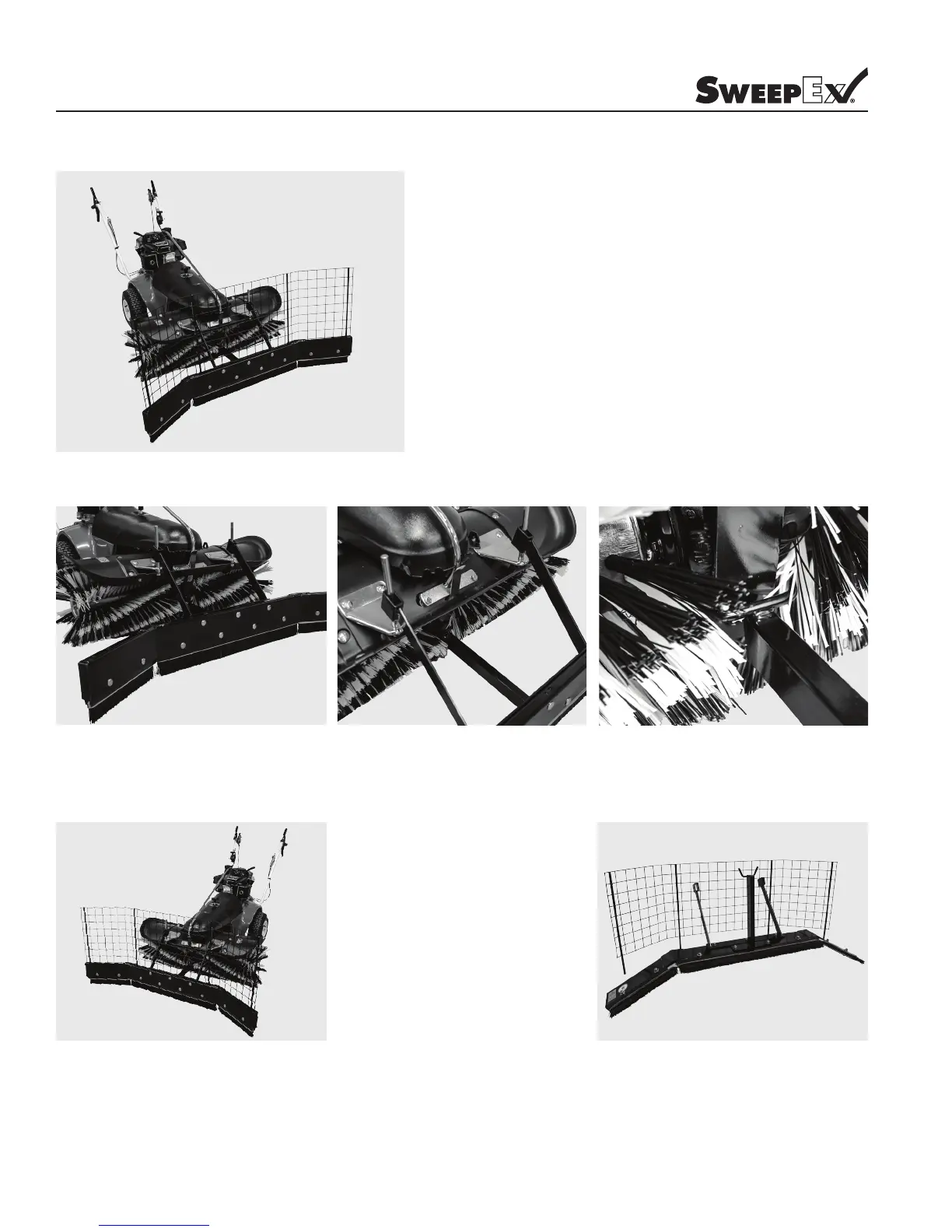

SWB-400 with optional Leaf Collector (LCA-400).
Attach the broom of the leaf collector to the Sweeper. The tubes of the upper support slide over the receiver bar on the sweeper. The lower
support will rest against the center brush drive.
Attach the screen by inserting the upright sup-
ports of the screen into the holes in the top of
the broom.
Store indoors as shown.
STORAGE
ATTACHING LEAF COLLECTOR TO SWEEPER...
CONTINUED...
