14 © TrynEx International 2013 (REV A) F51231A
Operating Instructions

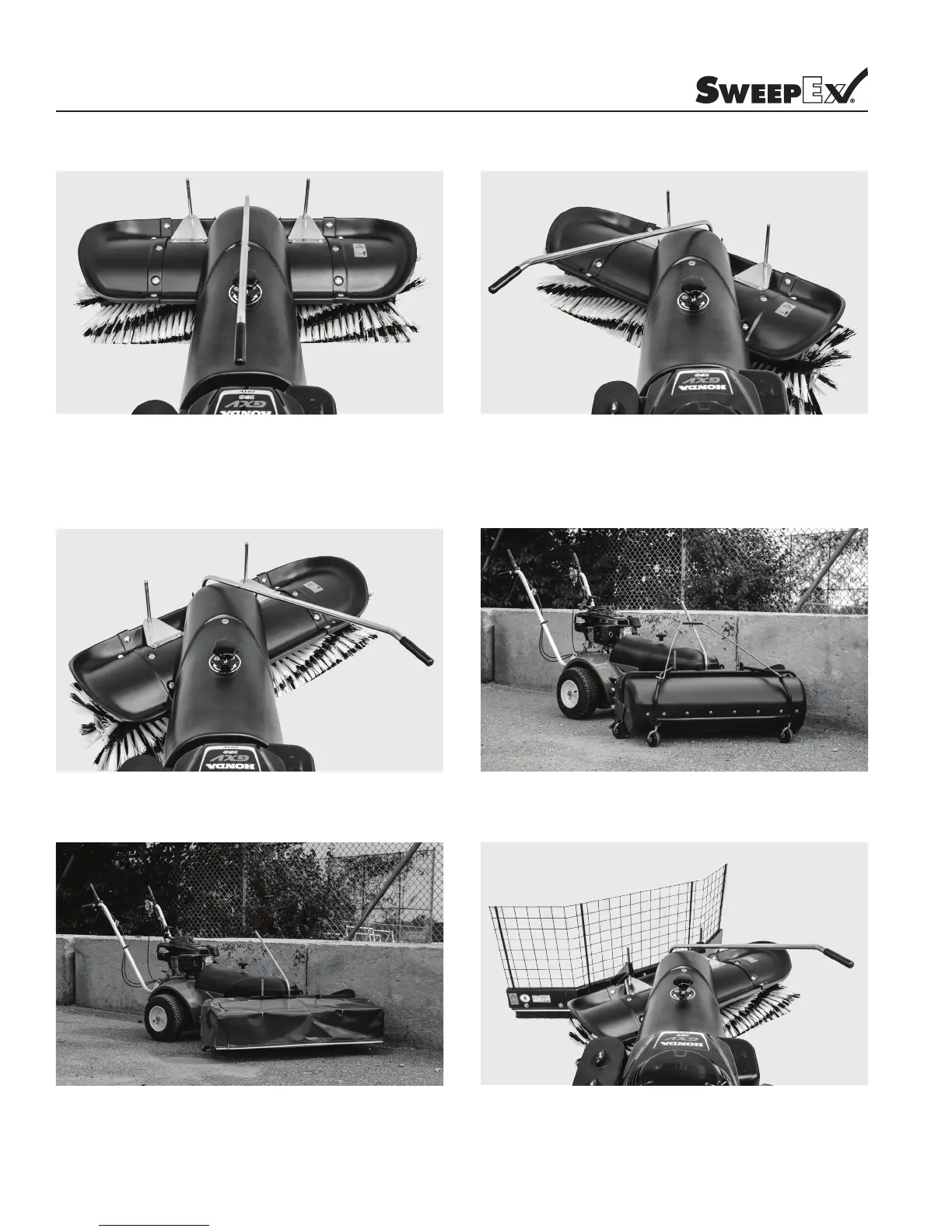

Adjusting Discharge Direction
There are ve different settings available for the discharge direc-
tion.
Here: Forward Discharge Direction. The swept material will heap up
in front of the brushes. You should give preference to angled brush
settings.
With an angled setting, the material will be swept to one side.
Here: Material will be discharged to the left.
To adjust brush angle: Lift the lever; Turn the brush in the desired
direction; Release the lever and ensure the lever is latched in
place.
Here: Material will be discharged to the right.
A sideways setting is recommended if using the optional Debris
Collector Box. This will allow sweeping against a wall or curb.
A sideways setting is required when using the optional Leaf Collec-
tor or optional Snow Plow.
Here material will be discharged to the left.
A sideways setting is recommended if using the optional Debris
Sheild. This will allow sweeping against a wall or curb.
