15

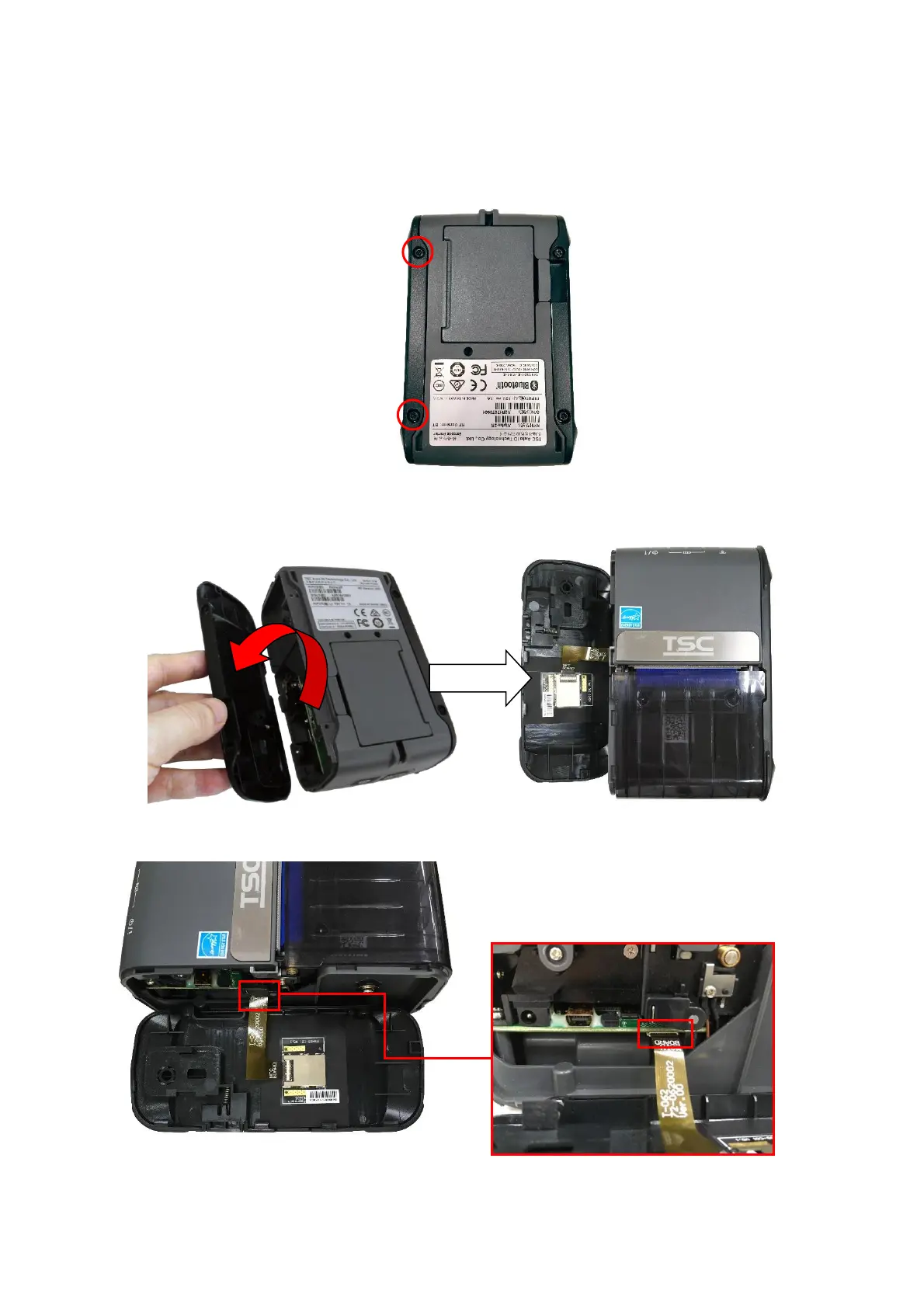

3.4 Replacing the NFC module
1. Use hex wrench (#9) to remove two screws on lower cover.
2. Remove the left side cover by rotating the cover as shown below.
3. Unplug the flat cable on the slot as indicated.
NFC module cable slot
