TSC Alpha-2R Service Manual

21
3.7 Replacing the Wi-Fi/Bluetooth Module
1. Refer to section 3.2 to remove the right, left side and top covers.

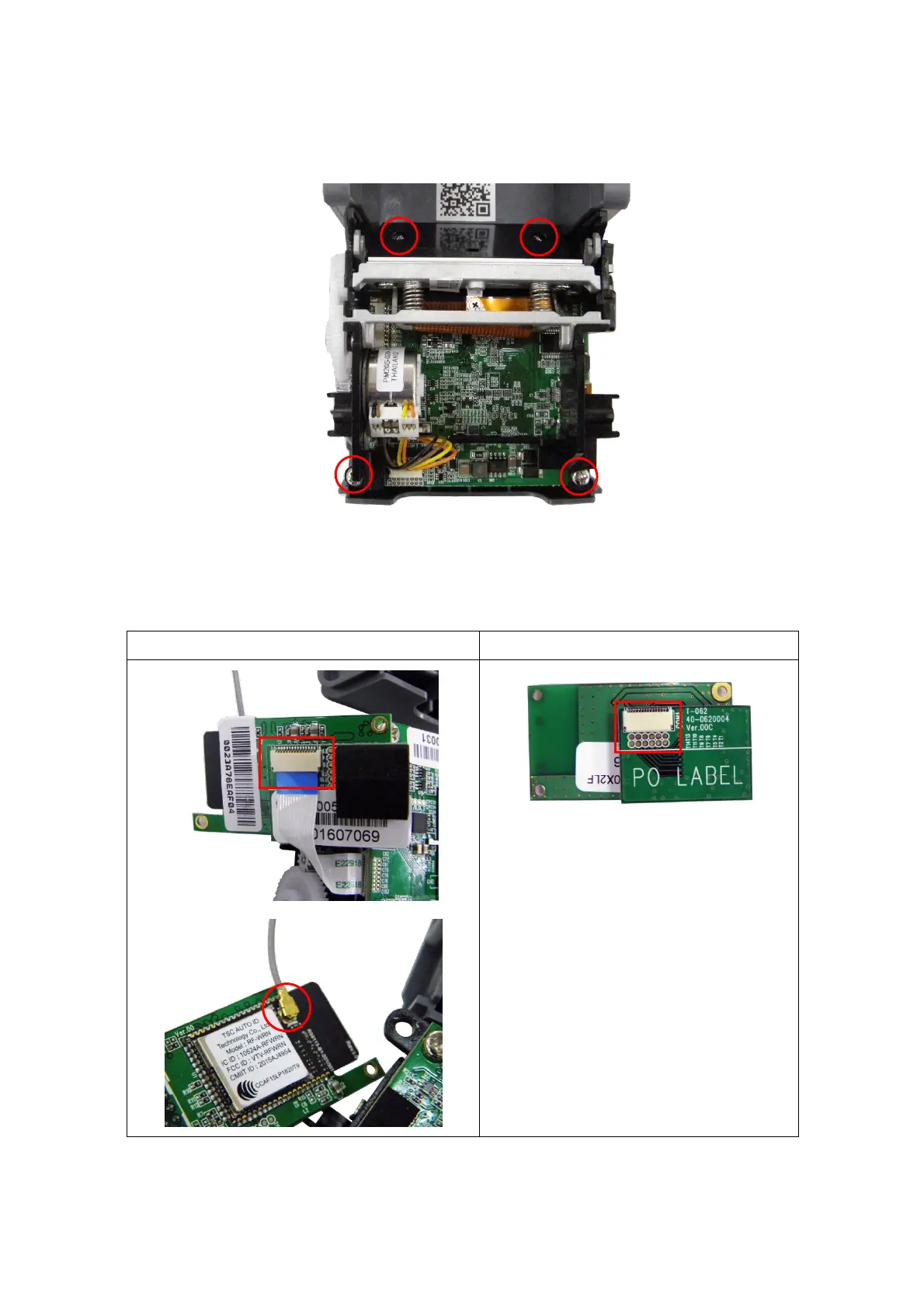

2. Remover four screws securing the internal mechanism.
3. Disconnect the flat cable on the Wi-Fi/Bluetooth control board. (For Wi-Fi module,
disconnect the antenna connector on the Wi-Fi module.) Remove/Replace the
Wi-Fi/Bluetooth module.
Wi-Fi module
Bluetooth module
4. Reassemble the parts in the reverse procedures.
