TSC Alpha-2R Service Manual

20

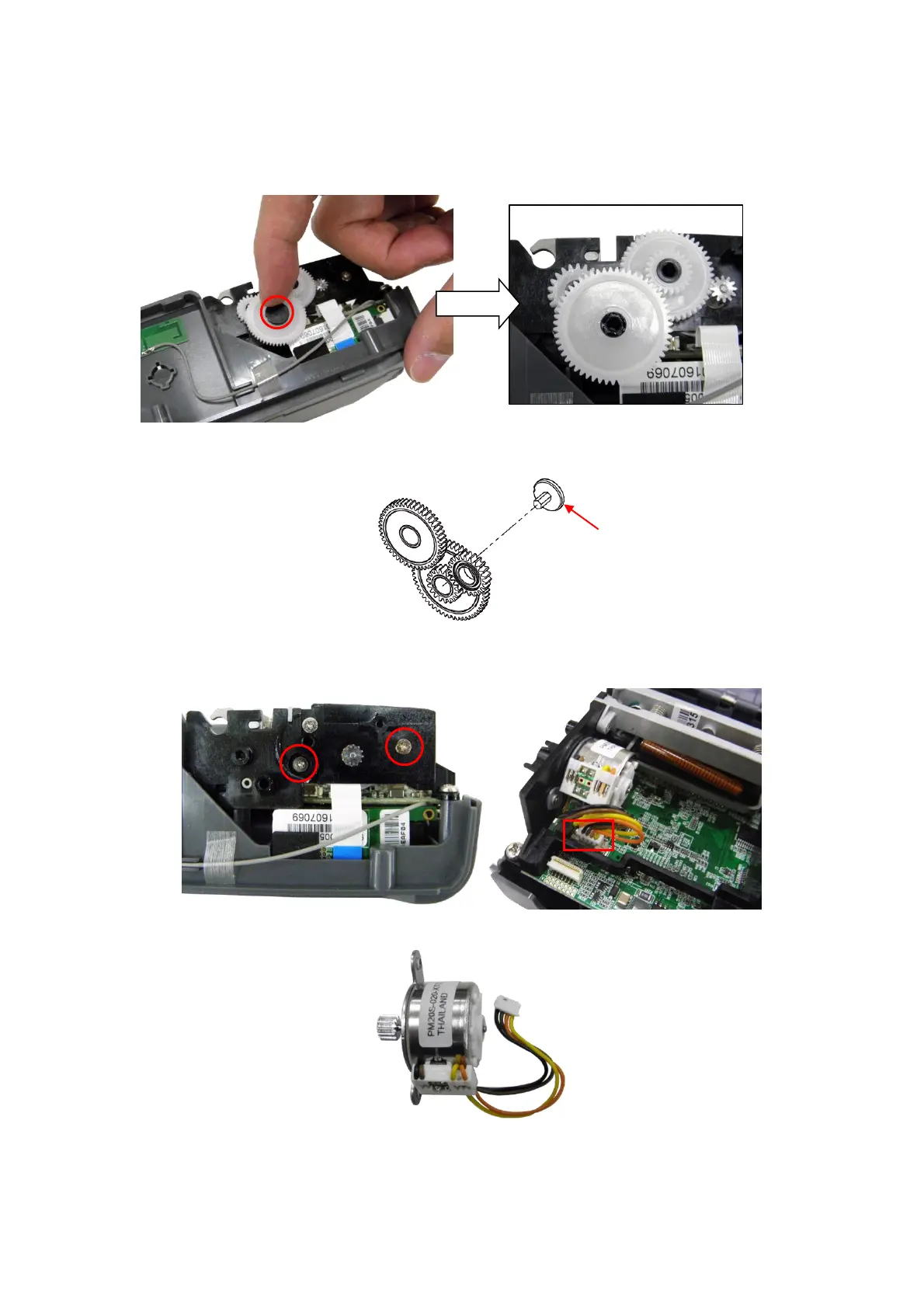

3.6 Replacing the Gear Assembly & Stepping Motor
1. Refer to section 3.2 to remove the right, left side and top covers.
2. Remove the plastic plug (black) securing the gears at the top.
3. Remove/Replace the gears assembly.
4. Remove two screws securing on the printer side as shown below. Disconnect the
stepping motor connector on main board.
5. Remove/Replace the stepping motor assembly.
6. Reassemble the parts in the reverse procedures.
Plastic plug
